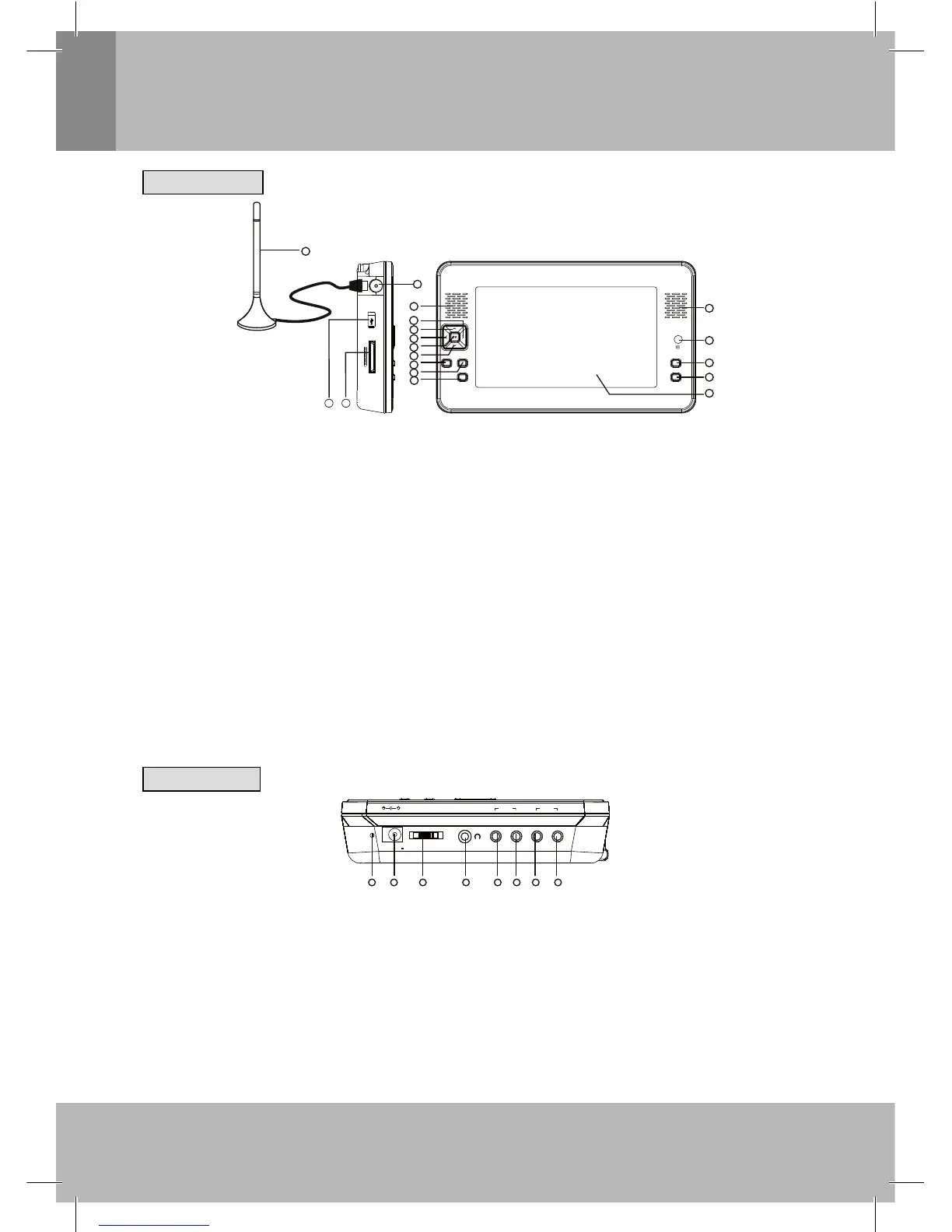

Panel illustration
Front View
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
MENU FUNC.
EXIT
DVB/AV
TV/R ADIO
16
17
USB
C
A
RD
(
SD
/
M
M
C
/M
S
)
18
1. Antenna input: Connect to an external RF signal.
2. Speaker Left: The left speaker.
3. VOL+: Move around the menu screens or changing the volume in non-menu state.
4. CH+: Move around the menu screens or selecting the channels in non-menu state.
5. VOL-: Move around the menu screens or changing the volume in non-menu state.
6. OK: Confi rm a selection in a menu.
7. CH-: Move around the menu screens or selecting the channels in non-menu state.
8. MENU: Open the main menu window.
9. FUNCTION: Adjust the sharpness/brightness/contrast/color/hue of TFT screen.
10. EXIT: Return to the previous screen or menu.
11. Speaker Right: The right speaker.
12. REMOTE CONTROL SENSOR: Receive the signal from the remote control
13. DVB/AV: Switch between digital TV and external A V.
14. TV/Radio: Switch between TV channels and Radio stations.
15. TFT screen: TFT widescreen display.
16. External rod Antenna
17. USB(mini plug)
18. Memory Card slot
Right View
VIDE O AUDIO
ONPOWER/OFF
OUT
IN
OUT
IN
DC IN 12V
CHARGE
1
3
2
5
4
6 7 8
1. CHARGE INDICATOR: The system is in charging state when red LED is lighting, it will turn into green
when full charged.
2. DC IN JACK: This is used for AC-DC adaptor input, the voltage range is 12V.
3. POWER SWITCH: This switch used to switch on/off the system.
4. EARPHONE JACK: This jack outputs analog audio L/R signal to earphone.
5. AUDIO IN JACK: This jack used to connect a external analog audio input.
6. AUDIO OUT JACK: This jack outputs analog audio L/R signal.
7. VIDEO IN JACK: This jack used to connect a external CVBS video input.
8. VIDEO OUT JACK: This jack outputs CVBS video signal.
