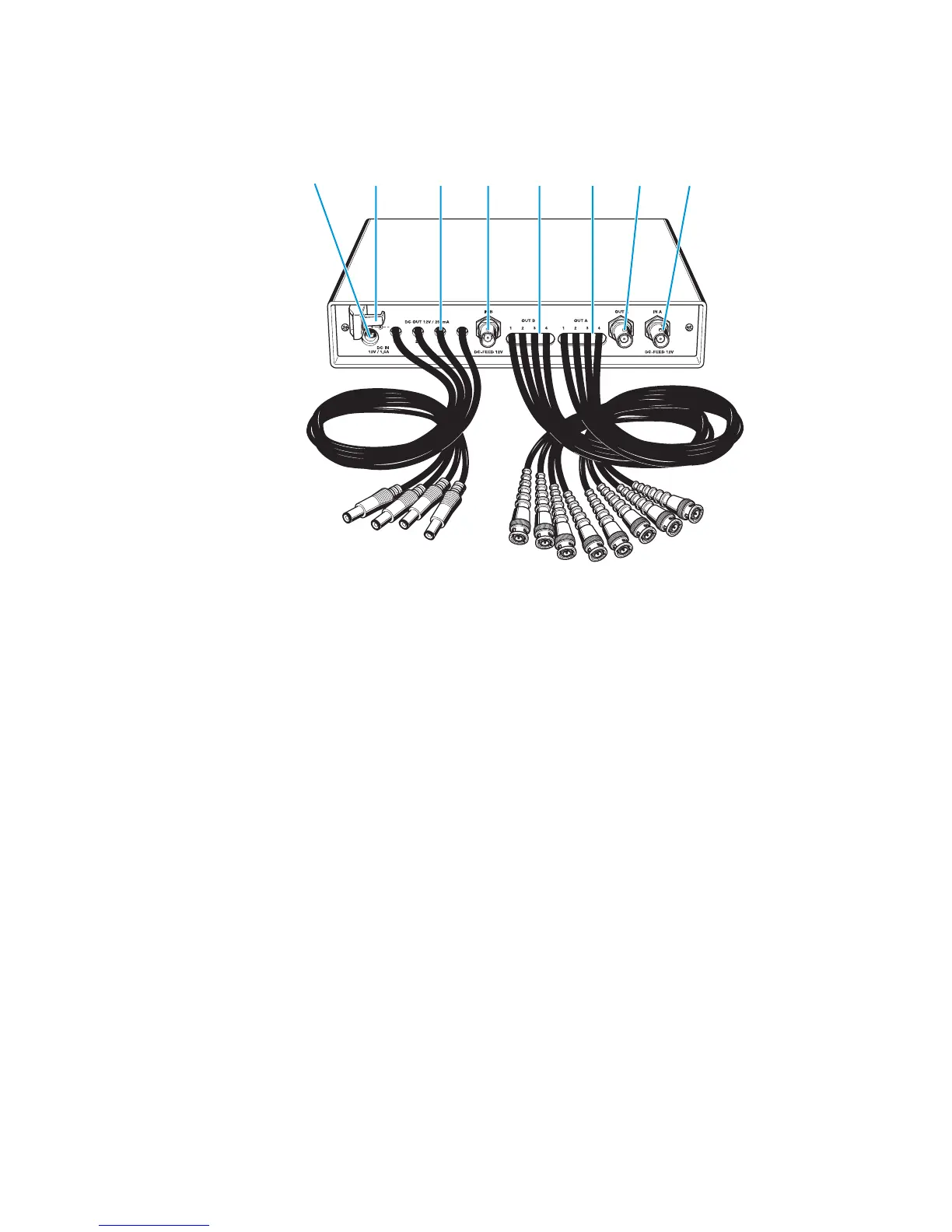

Operating controls
 DC input (DC IN) for mains unit
 Cable grip for power supply DC cable
 Four DC outputs (DC OUT) for powering up to
four receivers
 Antenna input B (IN B, DC-FEED 12 V), BNC socket
 Four antenna outputs (OUT B), B leg
 Four antenna outputs (OUT A), A leg
 RF output A (link to antenna input B  to make
a 1-to-8 splitter), BNC socket
 Antenna input A (IN A, DC-FEED 12 V), BNC socket

      
