18

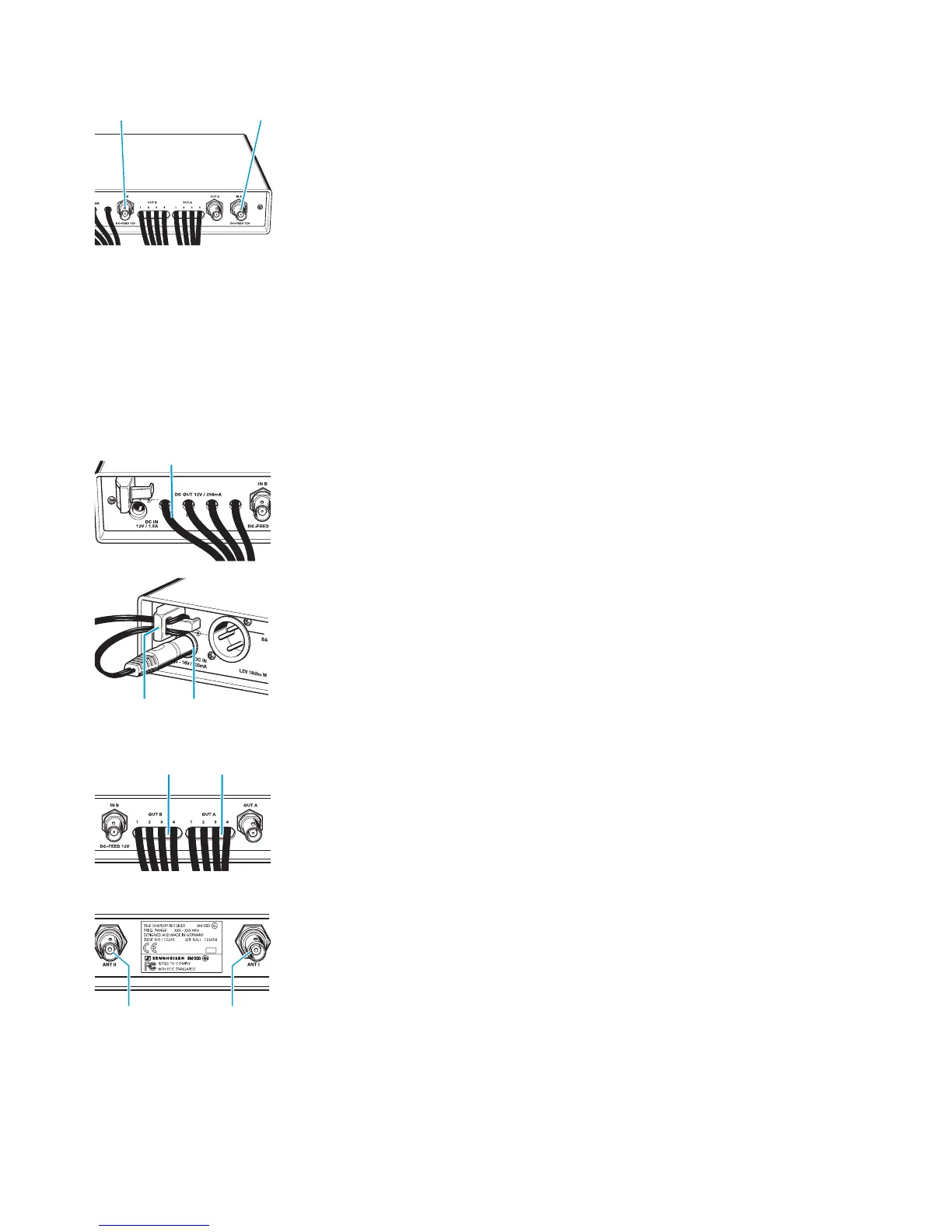

Connecting the antennas
왘 You can connect the following antenna types to the
antenna inputs and :
! two A 1031-U or A 2003-U passive antennas or
! two A 12 active antennas or
! a combination of passive antenna (A 1031-U or
A 2003-U) and antenna booster (AB 2).
Connecting the receivers
You can connect up to four rack-mount receivers (e.g.
EM 100 G2, EM 300 G2 or EM 500 G2) to the ASP 2. The split-
ter incorporates DC distribution for powering the receivers.
왘 Pass the cables coming from the antenna spitter’s DC out-
puts through the cable grips at the rear of the recei-
vers.
왘 Insert the hollow jack plugs into the sockets of the recei-
vers.
왘 Connect the BNC cables and of the antenna splitter to
the receivers as follows:
! Antenna outputs (OUT A) to antenna inputs (ANT I)
! Antenna outputs (OUT B) to antenna inputs (ANT II)
Note!
We recommend protecting unused RF outputs with a 50 Ω
terminator in order to keep to the specified distribution
attenuation.
ASP 2
