Sennheiser e 855 - Sennheiser e855 Technical Specifications; Polar Pattern and Frequency Response; Performance Data

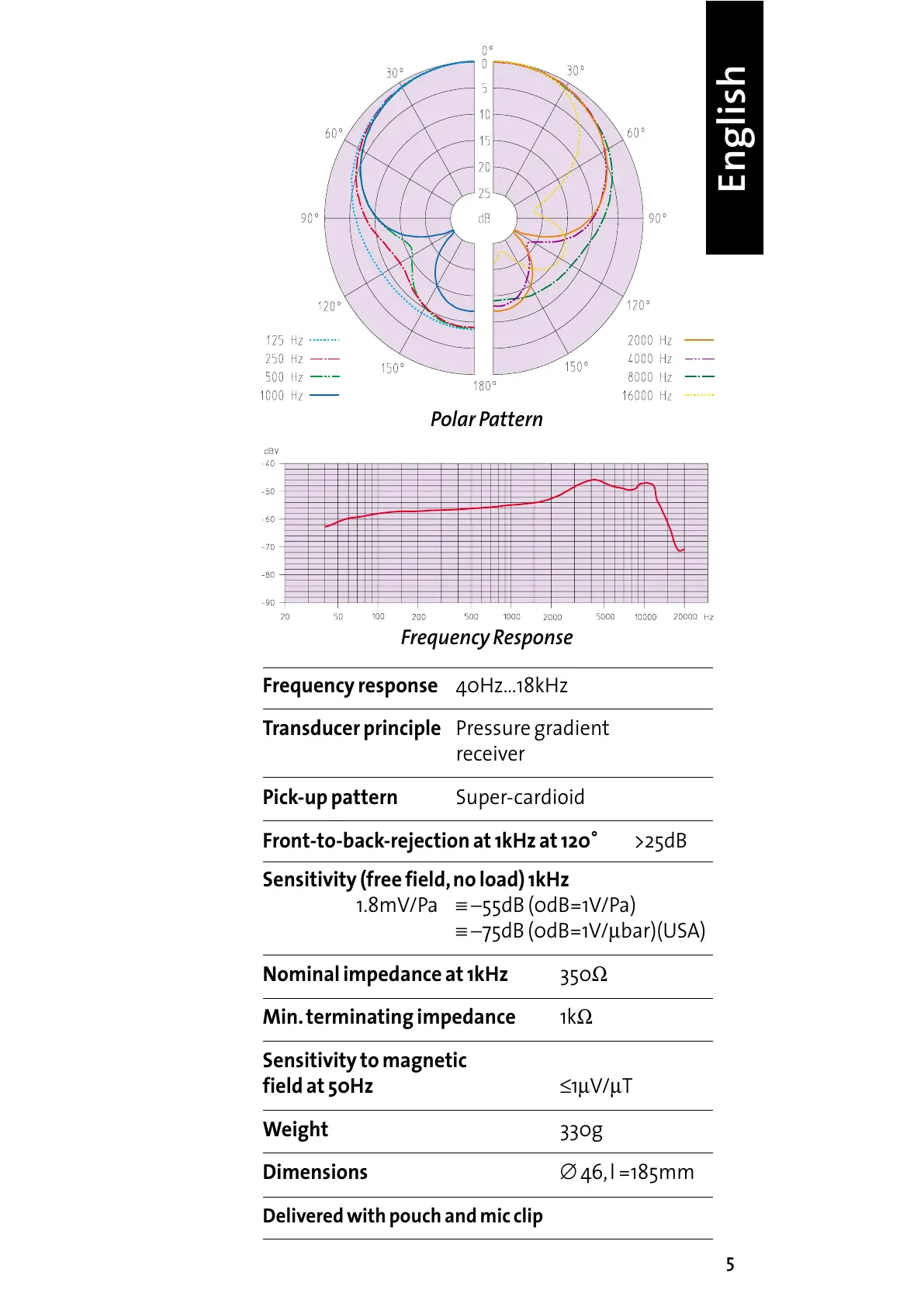

Frequency Response
Polar Pattern
Frequency response 40Hz…18kHz
Transducer principle Pressure gradient
receiver
Pick-up pattern Super-cardioid
Front-to-back-rejection at 1kHz at 120˚ >25dB
Sensitivity (free field,no load) 1kHz
1.8mV/Pa ≡ −55dB (0dB=1V/Pa)
≡ −75dB (0dB=1V/µbar)(USA)
Nominal impedance at 1kHz 350Ω
Min.terminating impedance 1kΩ
Sensitivity to magnetic
field at 50Hz ≤1µV/µT
Weight 330g
Dimensions ∅ 46,l =185mm
Delivered with pouch and mic clip
