Product overview
Overview of the displays
After switch-on, the radio microphone displays the stan-
dard display “Frequency/Name”. For further illustrations
and examples of the different standard displays, refer to
page 16.
The display backlighting is automatically reduced after
approx. 20 seconds.

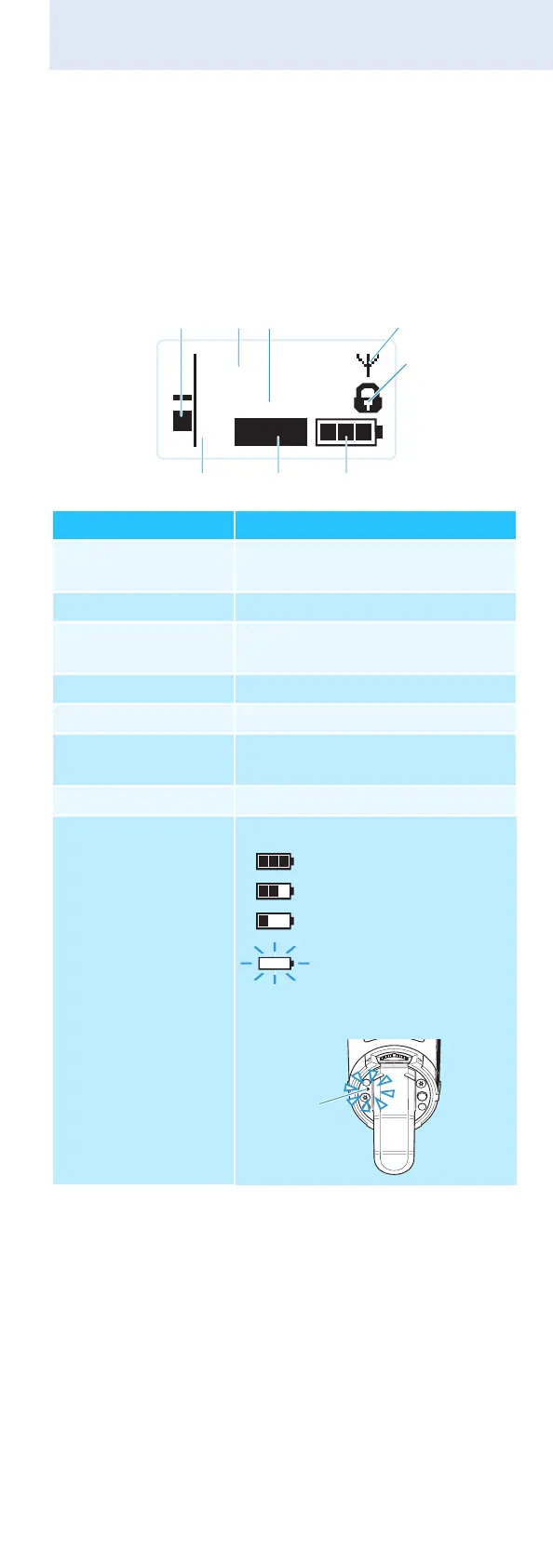

Display Meaning
햲 Audio level “AF” Modulation of the radio micro-
phone with peak hold function
햳 Frequency Current transmission frequency
햴 Name Freely selectable name of the
transmitter
햵 Transmission icon RF signal is being transmitted
햶 Lock mode icon Lock mode is activated
햷 “P” (pilot tone) Pilot tone transmission is
activated
햸 “MUTE” Audio signal is muted
햹 Battery status Charge status:
approx. 100%
approx. 70%
approx. 30%
charge status is
critical
, the red
LOW BATTERY LED 쐅
is flashing:
MHz
ew300 G3
MUTE
P
AF
햳 햴햲
햶
햵
햹햸햷
531.375
쐅
