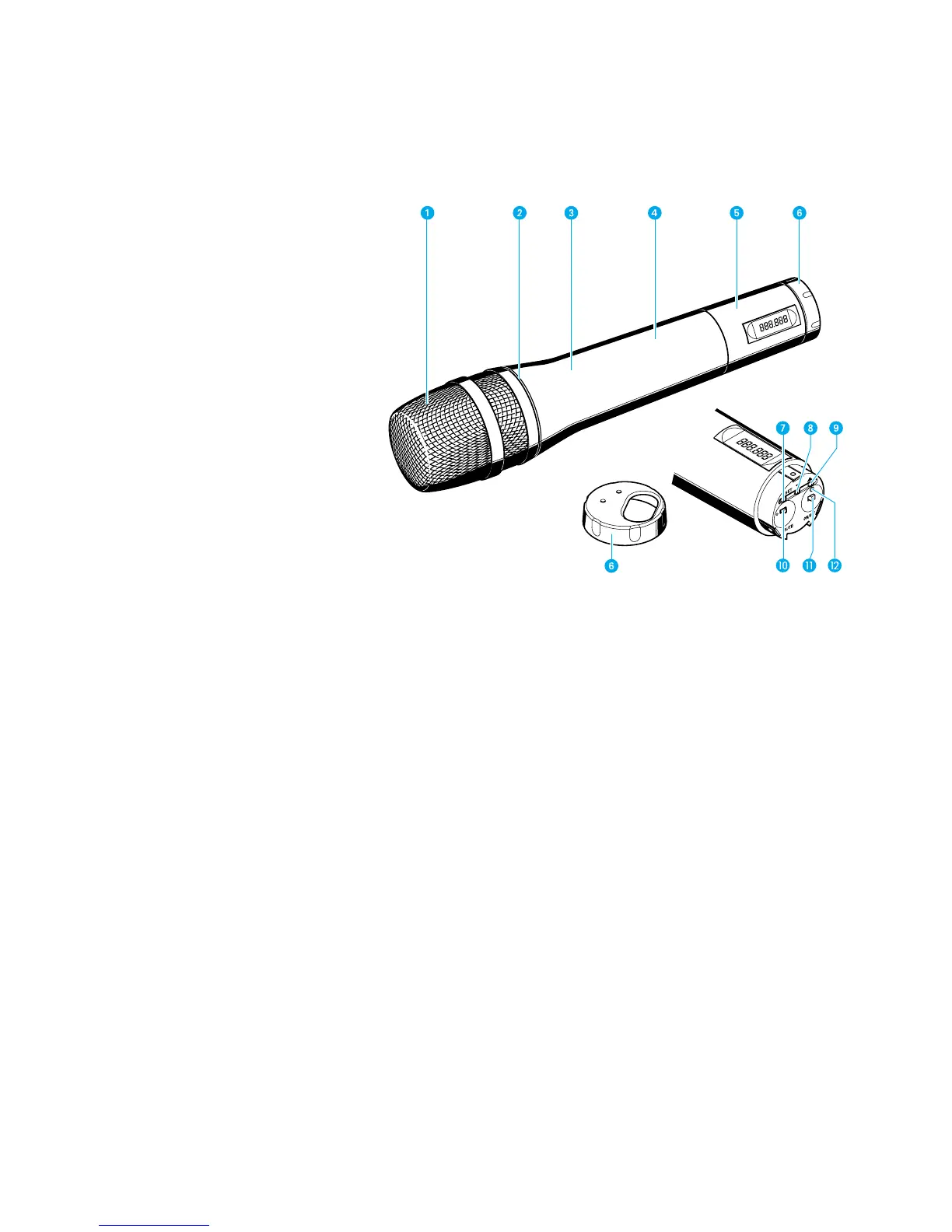

SKM 100 hand-held transmitter
! Sound inlet basket
" Colour-coded identification ring for microphone modules
green: MD 835 microphone module
(cardioid dynamic microphone)
blue: MD 845 microphone module
(super-cardioid dynamic microphone)
red: ME 865 microphone module
(super-cardioid condenser microphone)
% Body of hand-held transmitter
$ Battery compartment
# Display section
' Turnable protective cap for operating controls (shown removed)
The following operating controls become accessible in turn by turning
the protective cap ':
& SET button
( " button (DOWN)
) ! button (UP)
* MUTE switch
+ ON/OFF button
5 Red LED for operation and battery status indication
