56

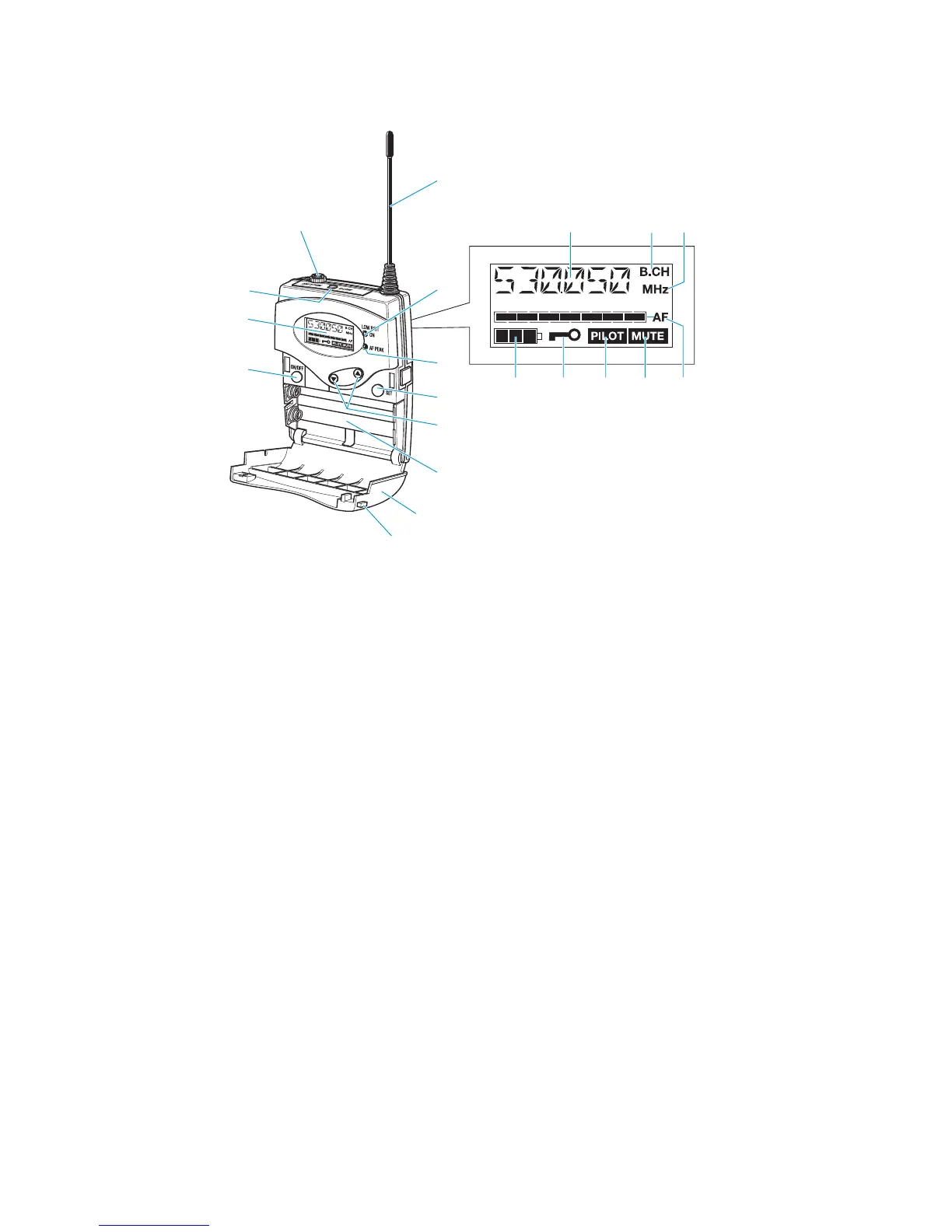

SK 100 G2 bodypack transmitter
!
&
"
#
$
%
5
6
2
3
1
"
/ , + 0
'
7
4
-
.
Operating controls LC display panel
! Microphone/line input (MIC/LINE),
3.5 mm jack socket
" Antenna
# Red LED for operation and
battery status indication (ON/LOW BAT)
$ Yellow LED for audio peak (AF PEAK)
% SET button
1 "/! rocker button (DOWN/UP)
2 Battery compartment
3 Battery compartment cover
4 Unlocking button
5 ON/OFF button
(serves as the ESC (cancel) key in the
operating menu)
6 LC display
7 MUTE switch
& Alphanumeric display
- “B.CH“ – appears when the channel bank and the
channel number are displayed
. “MHz“ – appears when the frequency is displayed
/ 4-step battery status display
, Lock mode icon
(lock mode is activated)
+ “PILOT” display
(pilot tone transmission is activated)
0 “MUTE” display
(audio input is muted)
' 7-step level display for audio signal “AF”
