v1.0 | 8/21
Network Guide
TeamConnect Bar
TC Bar M

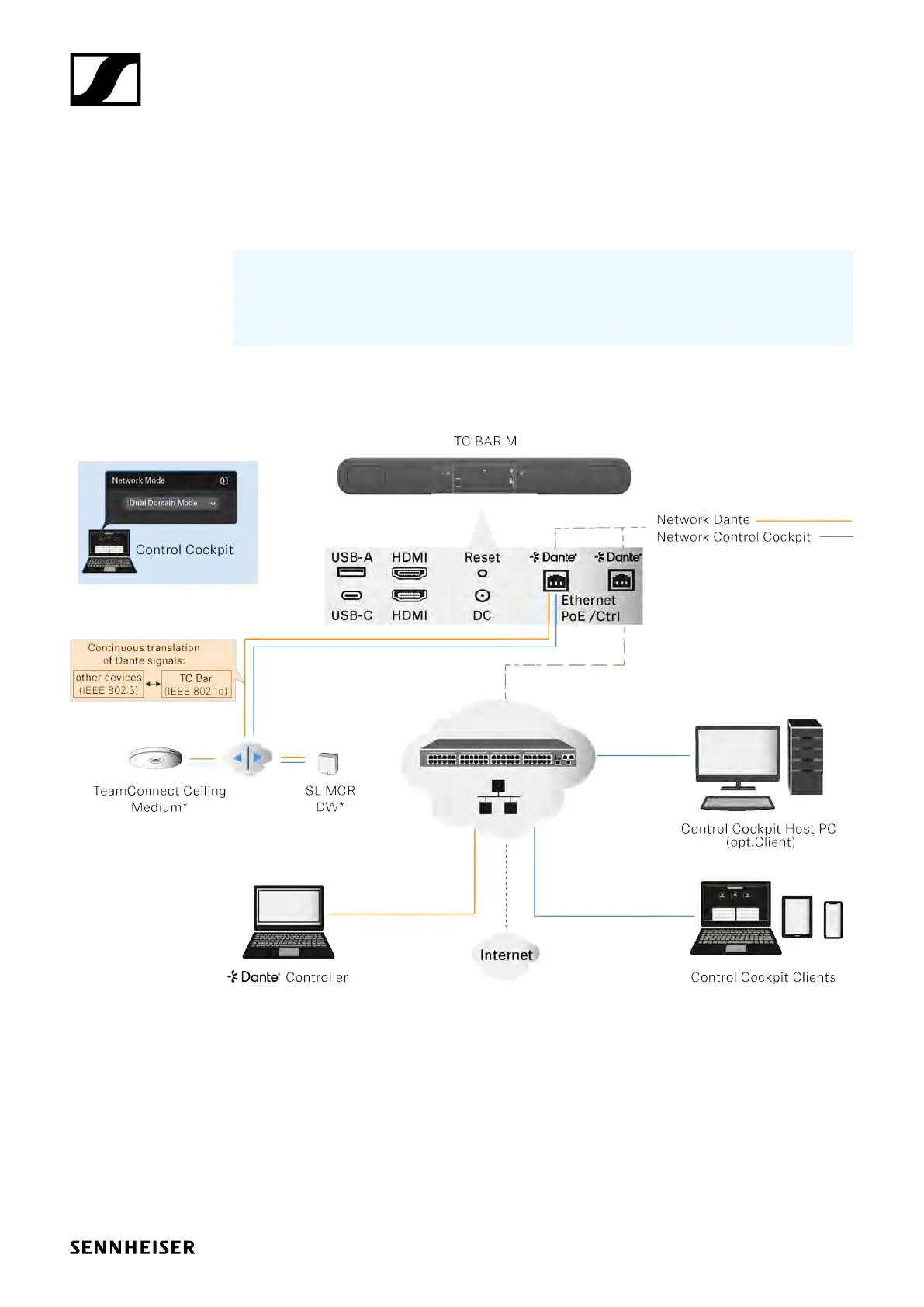

• The TC Bar M provides two network ports but using only one IP address in this mode.
• One port can be used to control the bar over the network via Dante Controller and via Control
Cockpit directly via a switch.
Attention!
There is a potential risk of creating loops (see „Danger of Network Loop“).
f Make sure you always connect the TC Bar M to two different networks that do not run via
a common switch.
• The other port is used to connect routed Sennheiser devices (e.g. TCC M)
• Any extensions connected can be managed both via the Dante Controller and via the Control
Cockpit, as the Bar M forwards the flows using the integrated switch.
