v1.0 | 9/21
Network Guide
TeamConnect Bar

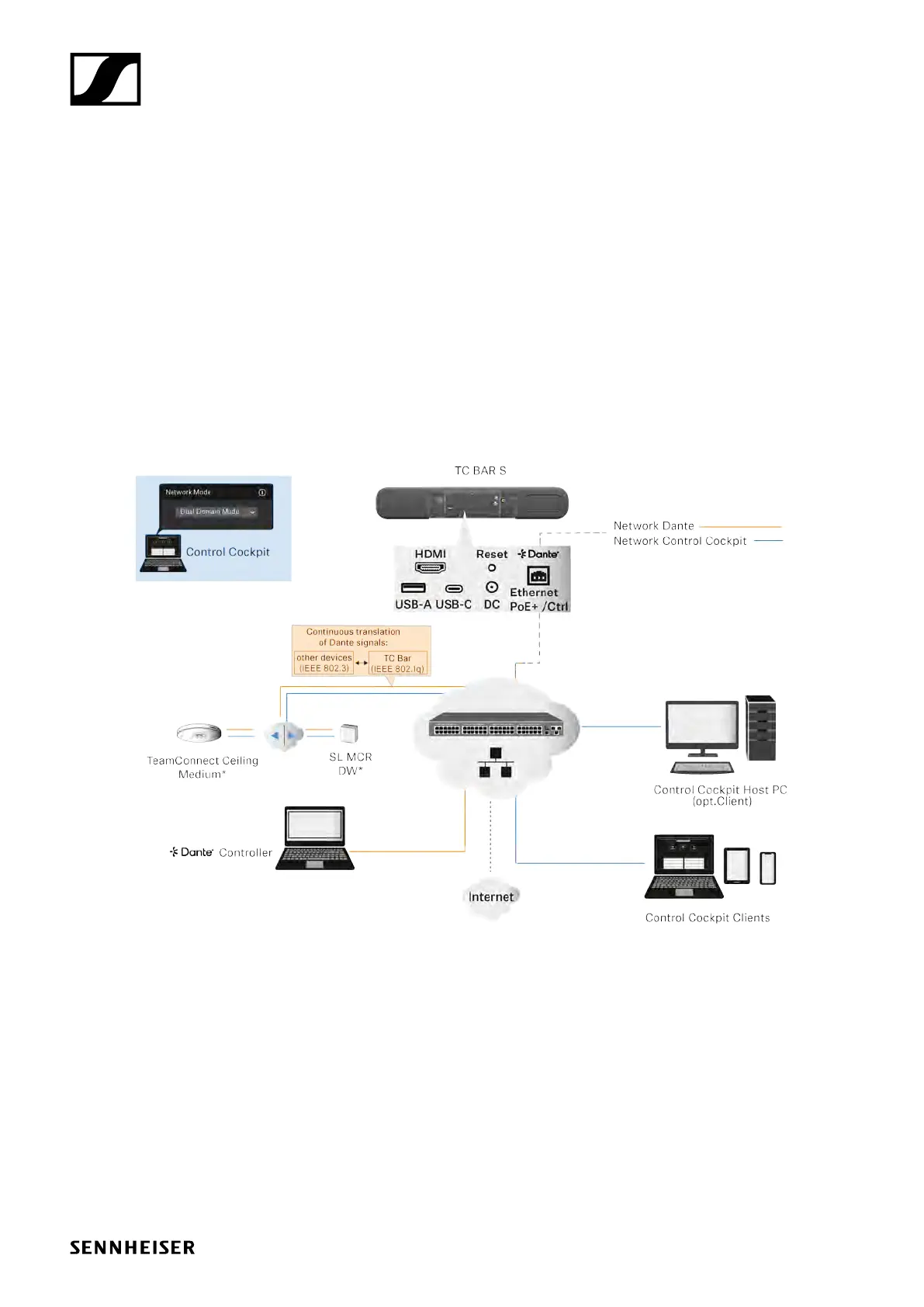

3.5. Dual Domain Mode
This mode is generally used if you receive a merged flow from two separate networks via a single network
line and you want to resolve this merged flow back into two different IP and MAC addresses.
In this way you can operate the Dante network and the control network independently of each other via
the same switch. Outgoing Dante® data packets are tagged as a VLAN in accordance with the 802.1q
(Virtual Local Area Network) standard.
The incoming data packets must also be tagged by the externally connected network in order to be
able to assign them correctly for internal use. Depending on the device, the data packets may need
to be translated from the outgoing 802.1q standard to 802.3 via a managed switch.
For more information see „Network Availability and Extensions“.
TC Bar S
• One IP is used to address the TC Bar via the Control Cockpit.
• The other IP is used to address the TC Bar via the Dante Controller.
