METIS M311 / M322 / H311 / H322 (17-pin)
SensorTools Software
27
temperature, date, time, emissivity, device temperature, setpoint if used, etc., and the higher the baud
rate and transmission rate, the faster the value is reached.
Data displayed in the SensorTools Viewer can be saved directly in the viewer.
Device specific:
-
the laser targeting light can be switched on and off.
CAUTION, Laser Radiation, Laser Class 2:
Never look into the direct or reflected laser beam.
Do not point the laser to anyone.
If laser radiation hits the eye, the eye should be averted immediately.
-
with camera module monitor settings are configured (see 7.2.2 Control window
camera settings.
- With a motor-focus optics, the measurement or focus distance can be adjusted (see 5.5.2
and under 7.2.2 Motor focus settings)

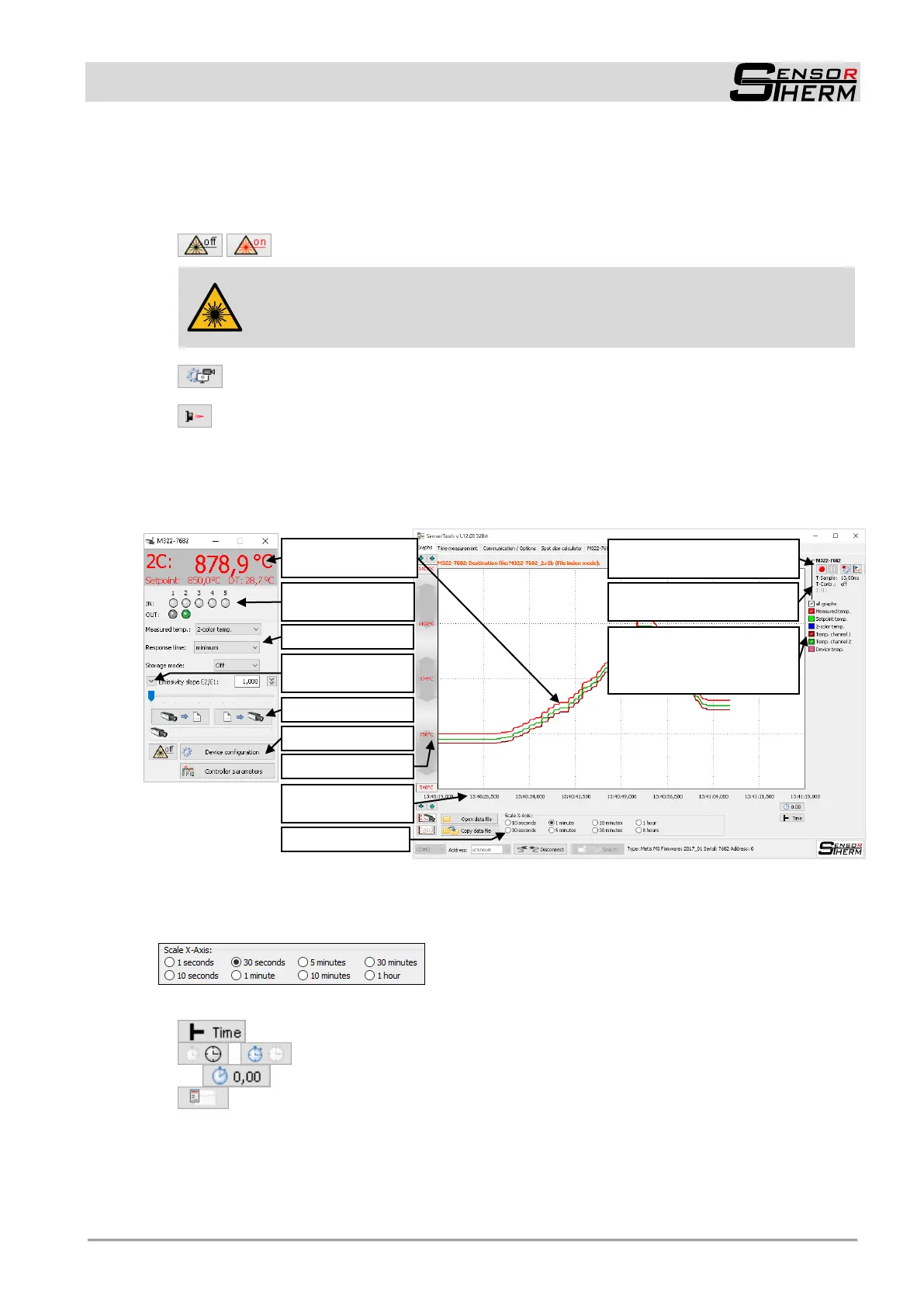

7.2 Software Window
7.2.1 Main Window Graphs
The graph window in the main window shows the temperature profile in time.
Scale X-Axis allows to set the time at which the graphs
window is filled with measured values.
If the time is changed in "Scale X-Axis", the graph is rebuild from the center of the window.
- rebuilds the graph from the left.
- / Switches the X axis of the graph between time and a stopwatch where with press-
ing
the displayed time can be set to 0 at the current graph position.
- Opens a control window for each connected device, if they have not been activated in the
connecting window (devices overview tab).
Select display graphs (right click
to change the color settings of
the graph), activates or deac-
tivates graphs
Measuring temperature
numerical / graphical
Information to sample time,
control time and slope time
Data recording, data recording
settings, data playback
Measurement settings
(extendable)
Display of active
inputs / outputs
