SensorTherm METIS M311 User Manual

METIS M311 / M322 / H311 / H322 (17-pin)
Electrical Connection
9

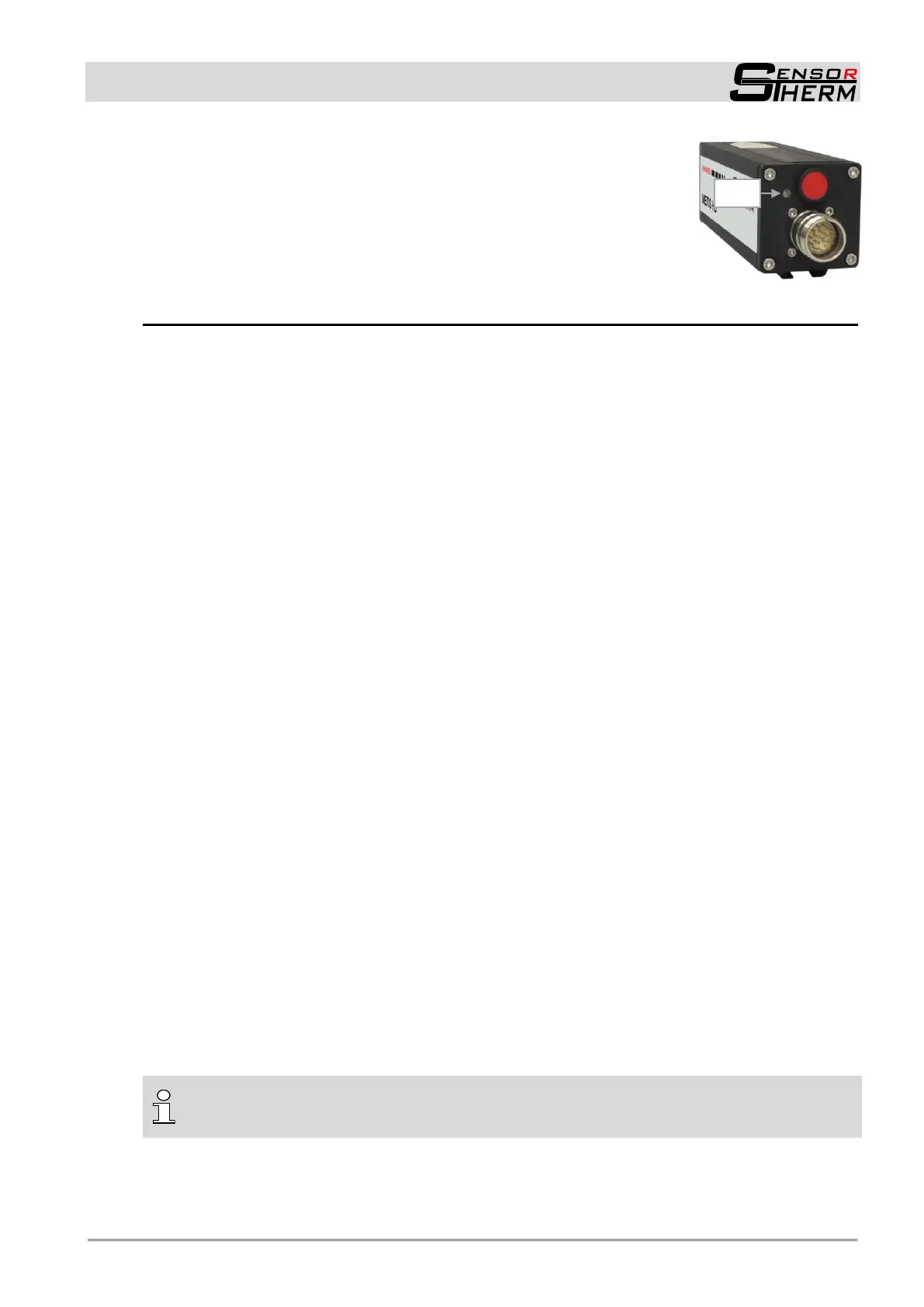

Power status LED: Indicates the operating status of the pyrometer:
 Orange in the self-test phase (M3 ca. 2 s; H3 during the initialization and
thermostatic phase for ≤ 3 min.)
 Green when the pyrometer is ready to operate
 Red when an error occurred (see 10.3 Trouble-shooting).
4.1.1.1 Factory Settings
Parameters Factory settings
Temperature sub range ........................................ Corresponds to basic range
Response time t
90
................................................. Minimal (corresponds to: M3: <1 ms; H3: <80 µs)
Emissivity slope .................................................... 1.000
Switch-off limit ....................................................... 10%
Switch-off verification ............................................ 0 ms
Emissivity ε (channel 1 and 2) .............................. 1.00 (corresponds to 100%)
Transmittance ....................................................... 100%
Spot size fill factor ................................................. 100%
Serial interface RS232 / 485 ................................. RS485
Data transmission speed (baud rate) .................... 115.2 kBd
Buffer mode .......................................................... off (at “on”: buffer interval: 100 ms, single reading)
Upscale Burnout function ...................................... off
Device address ..................................................... 00
Interface delay ...................................................... 00 (for RS232 and RS485)
Maximum value storage ........................................ off
Laser targeting switch-off time .............................. 180 s
Analog output 1 ..................................................... 4–20 mA, output temperature: measured temperature
Analog output 2 ..................................................... 0–20 mA, output temperature: PID control output
Digital input 1 ........................................................ Controller start/stop
Digital input 2 ........................................................ No function
Digital input 3 ........................................................ Clearing of peak picker
Digital input 4 ........................................................ Laser targeting light on / off
Analog input .......................................................... No function
Digital output 1 ...................................................... Contact ready to use (device ready to operate)
Digital output 2 ...................................................... Controller active
Inputs / outputs
Input debounce time ............................................. 100 ms
Output activation time ........................................... 0 ms
Output hold time .................................................... 10 ms
Limit switch: .......................................................... center of temp. range °C / °F; hysteresis: 10°C / 20°F
Device over temperature: ..................................... 50°C / 120°F; hysteresis: 2°C / 5°F
PID controller
Setpoint ............................ Center of temp. range
Proportional band Xp ........ 1%
Derivative time Td ............ 0 ms
Integral time Ti .................. 10 ms
Sampling time ................... 10 ms
Ramp time ........................ 0 ms
P-zsc ................................. 100%
P-max ............... 100%
P-min ................ 0%
P-Dyn ................ 100%
AutoTune .......... at each start
(AutoTune target temp: 50%)
Ramp time ........ 0 ms
Hold time .......... 0 ms
INFO to baud rate: The factory setting of the baud rate is set to 115 kBd to ensure also at
longer interface cables a working data transfer. For data transmissions with the highest speed,
baud rate and buffer mode must be adjusted (see 7.2.3.4)
LED
