Sensus 243-12-4 - Construction and Design Features; Travel Stop

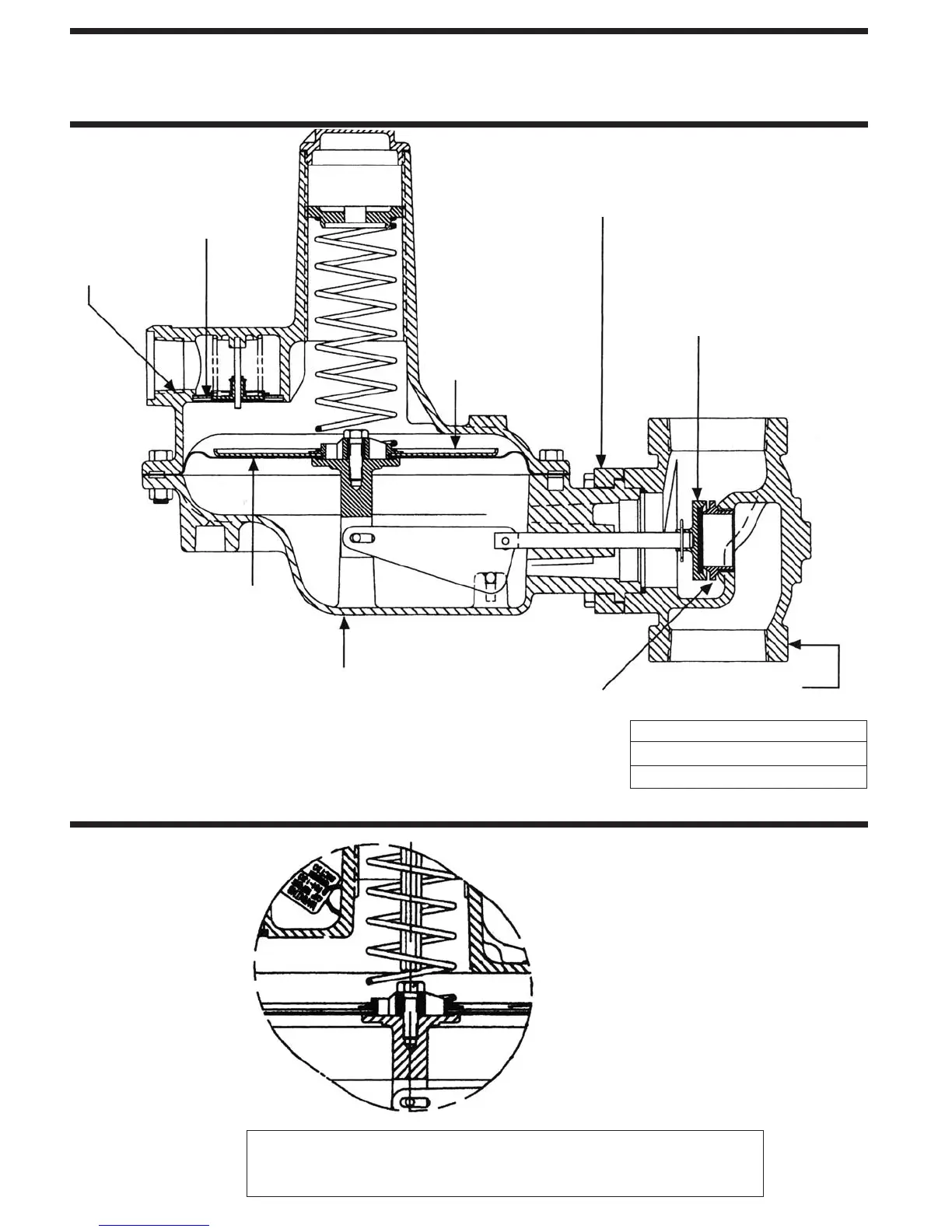

Construction and Design Features
4
Model 243-8-1
Model 243-12-1
Travel Stop
Vent
•
1” NPT
2-Way Vent Valve
• Fast Response on
Rapid Load Change
4 Bolt Union Connection
•
Easily Removable, Fast Off and On
•
Full 360
o
R
otation for Best
D
iaphragm Assembly Position
•
Easy Access for Valve Inspection
a
nd Servicing
Interchangeable
Diaphragm
Assemblies
Molded Valve
•
Buna-N Disc in
A
luminum Holder
Interchangeable
Brass Orifices
Cast Iron Bodies
(ASTM A126-81 Class B)
Die Cast Aluminum Alloy
Diaphragm Case
• Light Weight
• High Strength
• Corrosion Resistant
A travel stop is located in the
243-12-1 and the 243-12-4 to
provide overpressurization
protection.
Caution: Turn gas on slowly. If an outlet stop valve is used, it should be opened first. Do
not overload the diaphragm with a sudden surge of inlet pressure. Monitor the outlet
pressure during start-up to prevent an outlet pressure overload. Refer to RM-1306 for
more detailed start-up procedures.
Diaphragm
• Buna-N with
Nylon Fabric
Reinforcement
Pipe Sizes
2”, 1
1
⁄2”, 1
1
⁄4” NPT Screwed*
2” Flanged ANSI 125
*Can also be furnished with British Standard Threads (BST)
