STC – TC83USB-ASH
STC – TB83USB-ASH
B. Connector Specifications

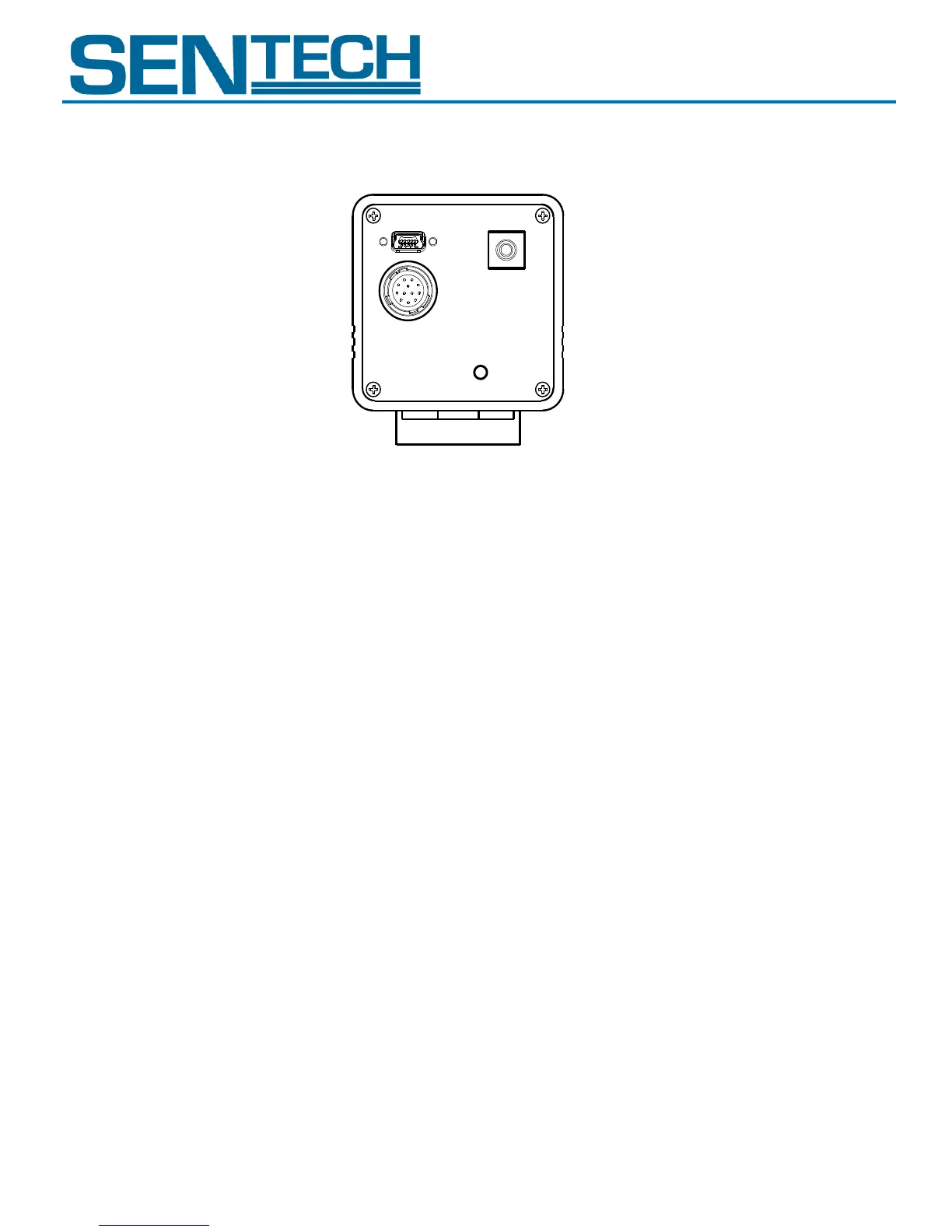

1. USB Connector (Mini B USB Connector)
Please connect the USB cable to this connector only while using the software trigger function or while
using this camera without the trigger function.
If the hardware trigger function is used with the camera including any signal output, please connect the
cable to the 12 pin connector.
Note 1: DO NOT connect the USB cable to its connector when the USB signals in the 12 pin connector
are in use.
Note 2: It is possible to connect lock the cable to the case with screws.
(1)
(2)
(3)
(4)
Product Specifications 5 of 11 Rev 1.1
