STC – TC83USB-ASH
STC – TB83USB-ASH
2. Output Signals Specifications
Output signal pins (IO2 and IO3) can be configured with “Strobe Signal Output”, “Trigger Output”, “End
of Exposure” or “End of Transfer” through the software.

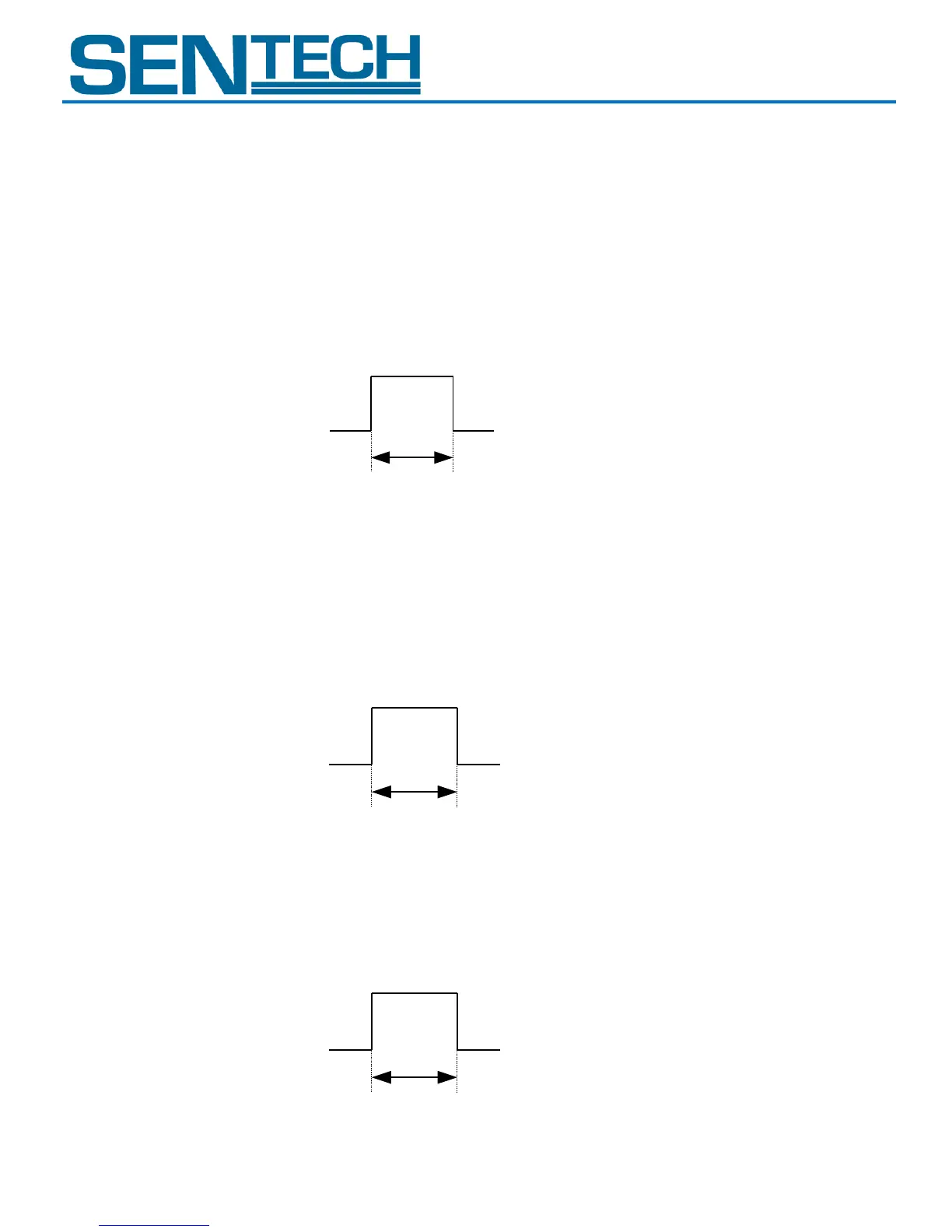

a. Strobe (Exposure Time) Output Signal Specifications
1) Output Signal Level: 3.3 Vp-p
2) Output Impedance: High-impedance
3) Pulse Polarity: Positive or Negative (selectable by the software)
4) Pulse Width: Exposure time
b. Strobe (Strobe Signal Setting) Output Signal Specifications
1) Output signal level: 3.3 Vp-p
2) Output impedance: High-impedance
3) Pulse polarity: Positive or Negative (selectable by the software)
4) Pulse width: Exposure time + setting time
c. Trigger (Through) Output Signal Specifications
1) Output signal level: 3.3 Vp-p
2) Output impedance: High-impedance
3) Pulse polarity: Positive or Negative (selectable by the software)
4) Pulse width: As same as input trigger signal
3.3 V
0 V
As same as input trigger signal
3.3 V
0 V
Exposure time + setting time
3.3 V
0 V
Exposure time
Product Specifications 8 of 11 Rev 1.1
