d. Trigger Output Signal Specifications
1) Output signal level: 3.3 Vp-p
2) Output impedance: High-impedance
3) Pulse polarity: Positive or Negative (selectable by the software)
4) Pulse width: 1 clock to 4094 clocks (selectable by the software)
e. End of Exposure Output Signal Specifications
1) Output signal level: 3.3 Vp-p
2) Output impedance: High-impedance
3) Pulse polarity: Positive or Negative (selectable by the software)
4) Pulse width: 1 clock to 4094 clocks (selectable by the software)
f. End of Transfer Output Signal Specifications
1) Output signal level: 3.3 Vp-p
2) Output impedance: High-impedance
3) Pulse polarity: Positive or Negative (selectable by the software)
4) Pulse width: 1 clock to 4094 clocks (selectable by the software)

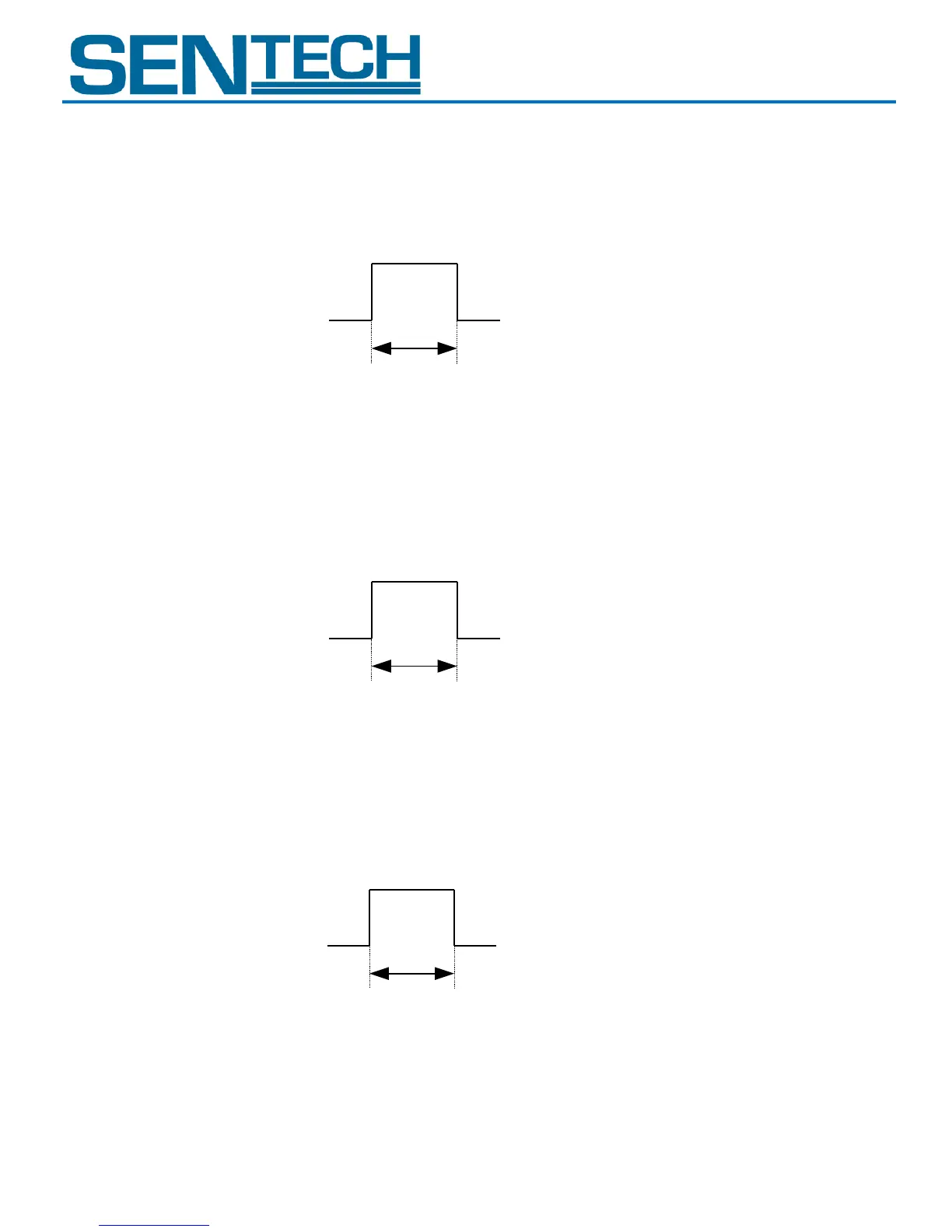

3.3 V
0 V
1 clock to 4094 clock
3.3 V
0 V
1 clock to 4094 clock
3.3 V
0 V
1 clock to 4094 clock
