2 — 4805 A

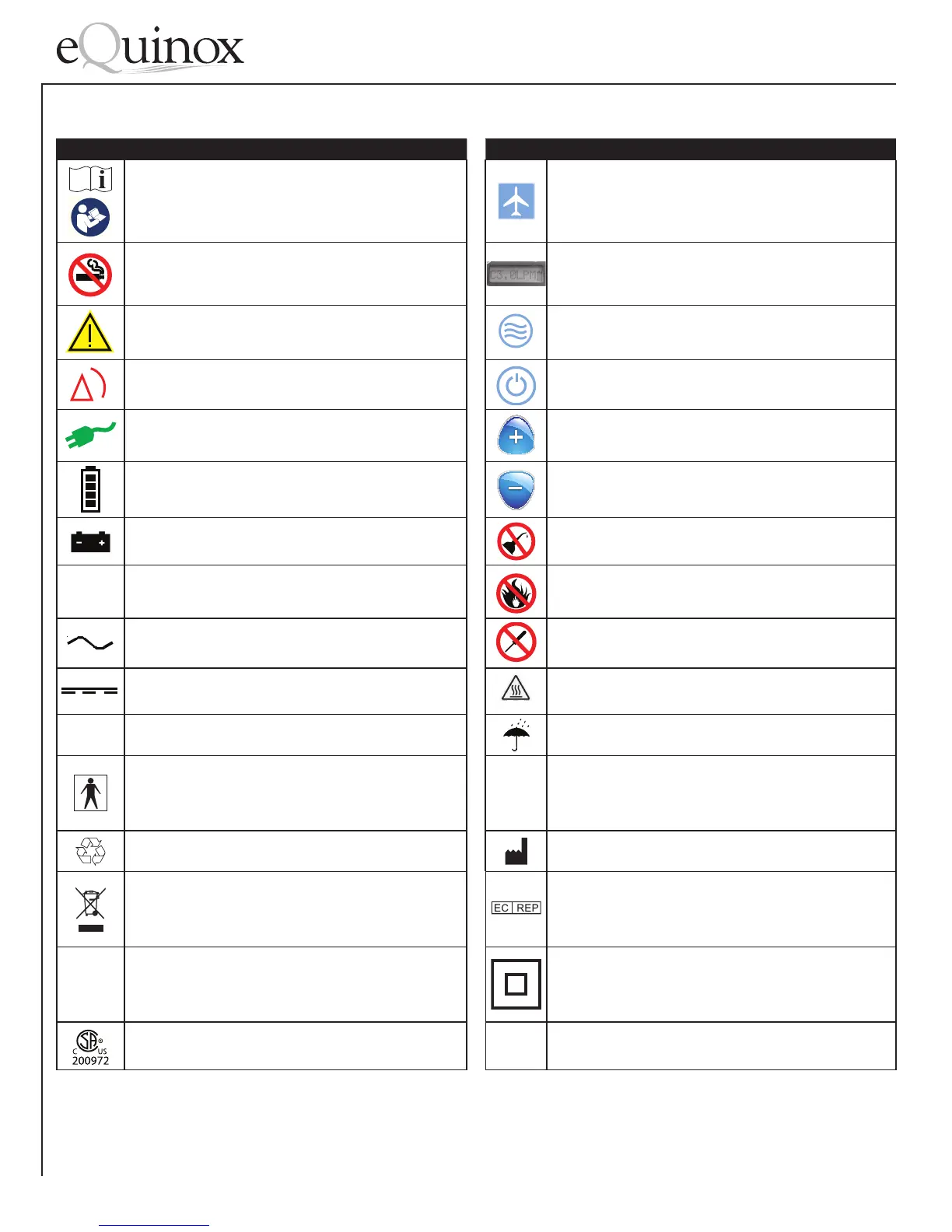

Symbol Definition Symbol Definition
Read user manual before operation. See user manual
for instructions.
FAA Approved Symbol: The U.S. Federal Aviation
Administration (FAA) has approved this device for
use on-board commercial aircraft.
No Smoking Icon: Do not smoke near unit. Flow Setting Indicator
Warnings / ALERT (Yellow) Indicator Pulse Mode Operation
ALARM (Red) Indicator Device operating normally; power button
External Power Indicator Increase Flow Setting
Battery Pack (battery) Status Gauge Decrease Flow Setting
Battery Pack Symbol Use no oil or grease.
A
Amperes No open or naked ames.
Alternating Current No serviceable parts inside. Do not open cover.
IEC Icon for DC Power (Input) Warm Surface.
0
2
Oxygen Output Do not get wet.
Type BF Applied Part (degree of protection against
electric shock)
IPX1
Drip Proof Equipment-IPX1: The eQuinox Battery
Pack (Battery) and AC Power Supply provide
protection against the harmful effects of the ingress of
liquids. (IPX1, per IEC 60529)
Recycle Symbol Name and address of manufacturer
This symbol is to remind the equipment owners
to return it to a recycling facility at the end of its
life, per Waste Electrical and Electronic Equipment
(WEEE) Directive.
Authorized representative in the European
Community
IP22
Drip and solid ingress proof: The eQuinox provides
protection against the harmful effects of the ingress
of liquids and solid foreign objects in accordance
with IEC 60529 at the rating of IP22.
Class II equipment
Certied for both the U.S. and Canadian markets, to
the applicable U.S. and Canadian standards.
