Serpent CENTAX TRUE MOTION - Setting the Clutch Gap; Gap Measurement and Shimming

E
6
E
7
use these shims to achive desired gap

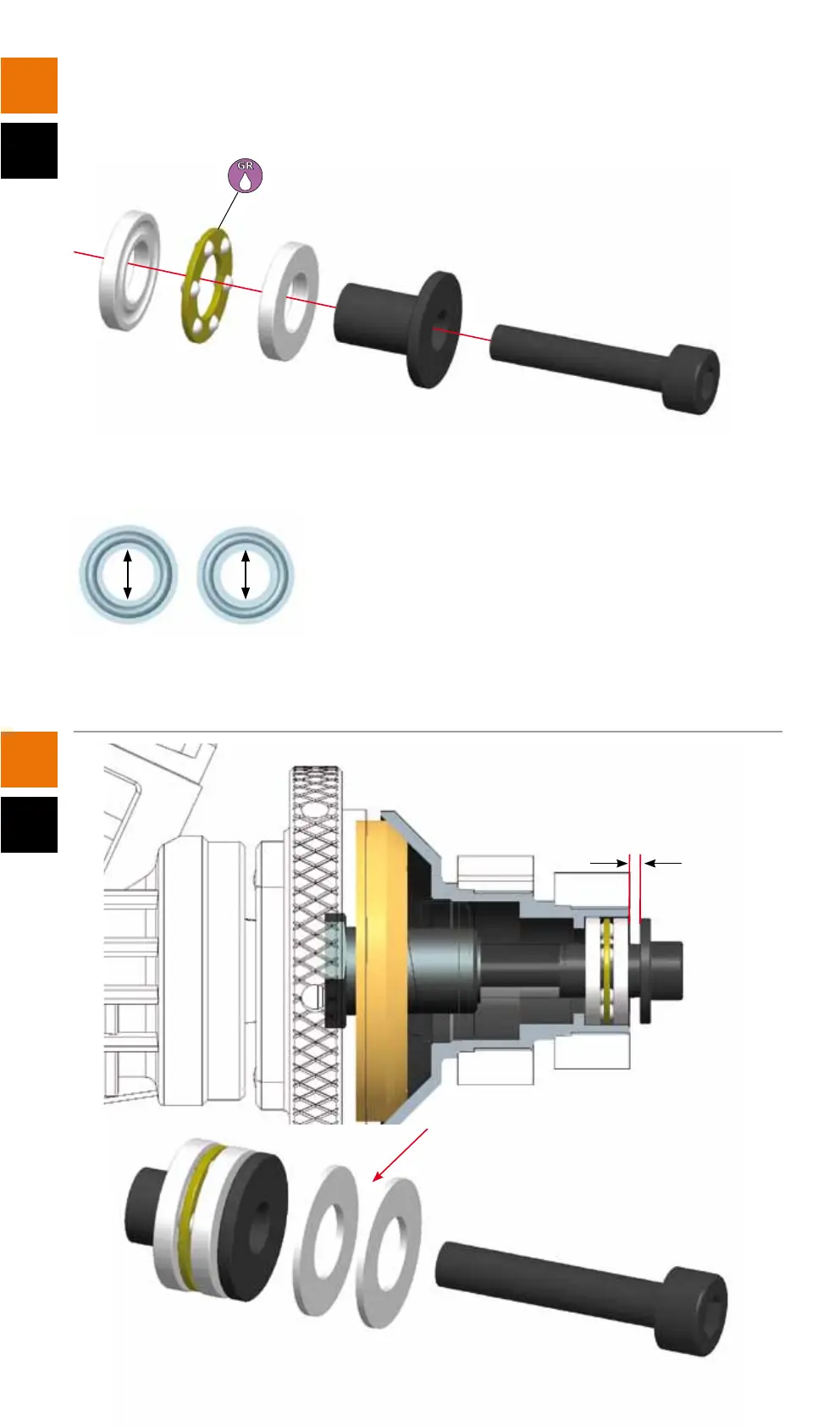

SETTING THE CLUTCH GAP
A B
Small inner dia.
A
B
5.0mm5.2mm
IMPORTANT! Install thrust bearing
plates as shown
M3x16
check gap. gap should be between
0.5 and 0.6 mm
