Serpent Viper 988e - SHOCKS ASSEMBLY; Step 41: Shock Components Assembly; Step 42: Shock Assembly Details

37
ShOCkS bag
ShOCkS aSSEmbly
STEp 41
41.1 42.1
42.2
41.2
1
2
Use some silicone oil
during the assembly.
Use some silicone oil
during the assembly.
Use some silicone oil
during the assembly.
For the correct piston
holes please check the
default setupsheet.

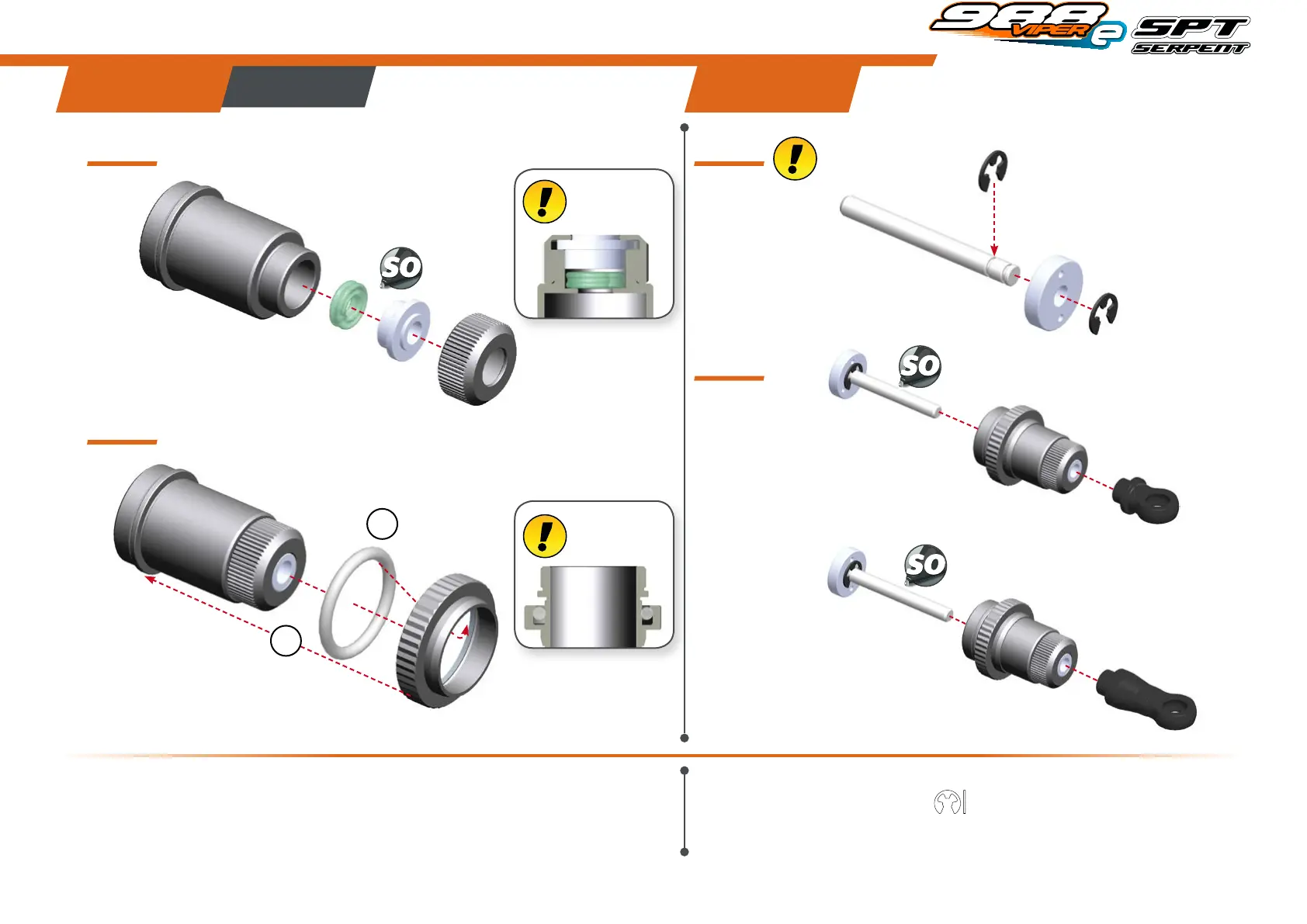

Insert the o-ring
inside the spring
collar.
Note the correct
orientation of the
shock spacers .
Note the correct
position of the
o-ring .
R2.3
R2.3
R2.3
FRONT
REAR
STEp 42
