SET 1501 H - Page 16

16

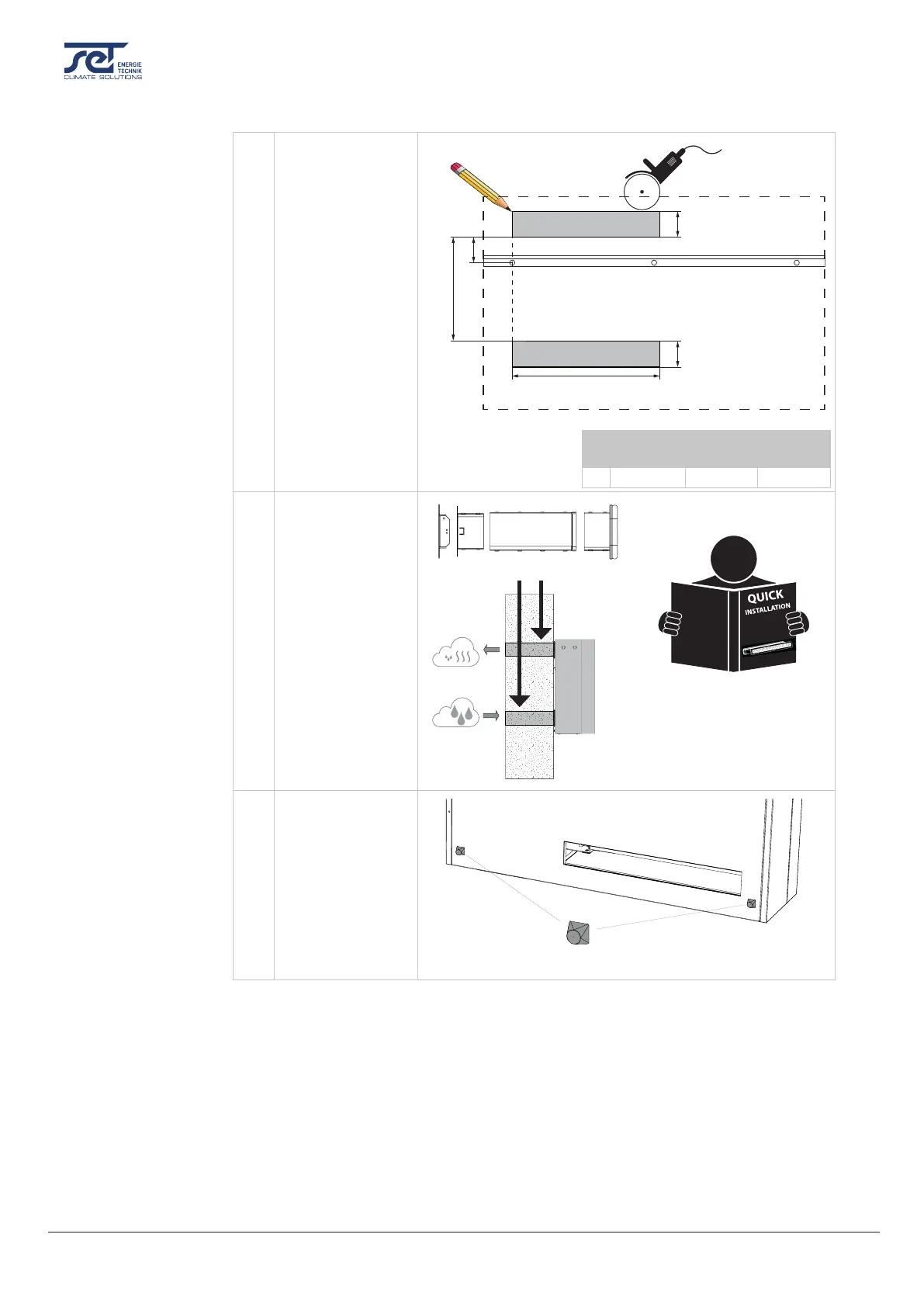

Installation: Wall mounting
2 Make a hole in the
wall according to
the measurements
of the illustration.
SET 1501
H
SET 2501
H
SET 3501
H
Z 610 760 1095
3 Use SET (H) wall
duct in order to seal
between unit and
wall.
See how to mount
the wall duct cor-
rectly in the SET (H)
wall duct instruc-
tion.
4 Fasten the two wall
mounting spacers
(included in the de-
livery) on the back of
the unit.
2x
68
110
110
Z
395
SET (H) wall duct
Instruction
?
Wall duct for CDP 40T-50T-70T
INSTRUCTION
Rev. 1.2 • 2019-W38-5
d
c
b
a
