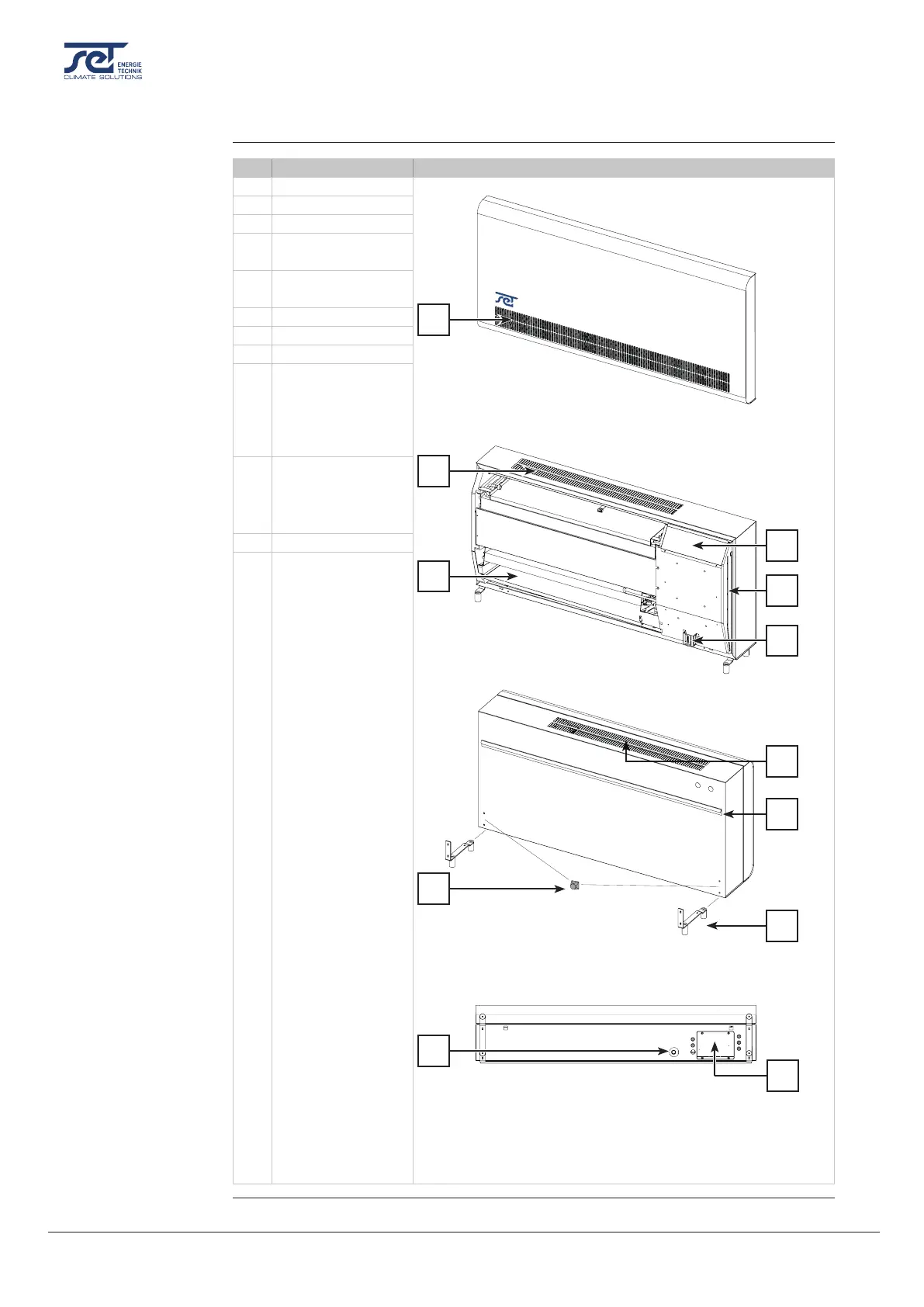

Product description: Overall description
Pos. Part Illustration
1 Air inlet
Bottom view
11
12
1
Front cover
2
6
5
3
4
Inside (front cover removed)
7
8
9
2x
10
Rear view
2 Air outlet
3 Drip tray
4 Control panel
(behind the cover)
5 Cable groove
(for accessory only)
6 Humidity sensor
7 LED lamp
8 Wall bracket
9 Wall mounting
spacers
(incl. in delivery -
only used for wall
mounting)
10 Floor mount
(incl. in delivery
-only used for oor
mounting)
11 Water drain
12 Mains electricity
connection
(behind the lid)
