SET SET-2090 - XJ3 Connector Pinout (Rear); XJ3 Connector Pin Assignments

8 of 10
www.smart-e-tech.com
SET-2090
Technical Description
Issue 05 02.06.23
INTERNAL - NI CONFIDENTIAL

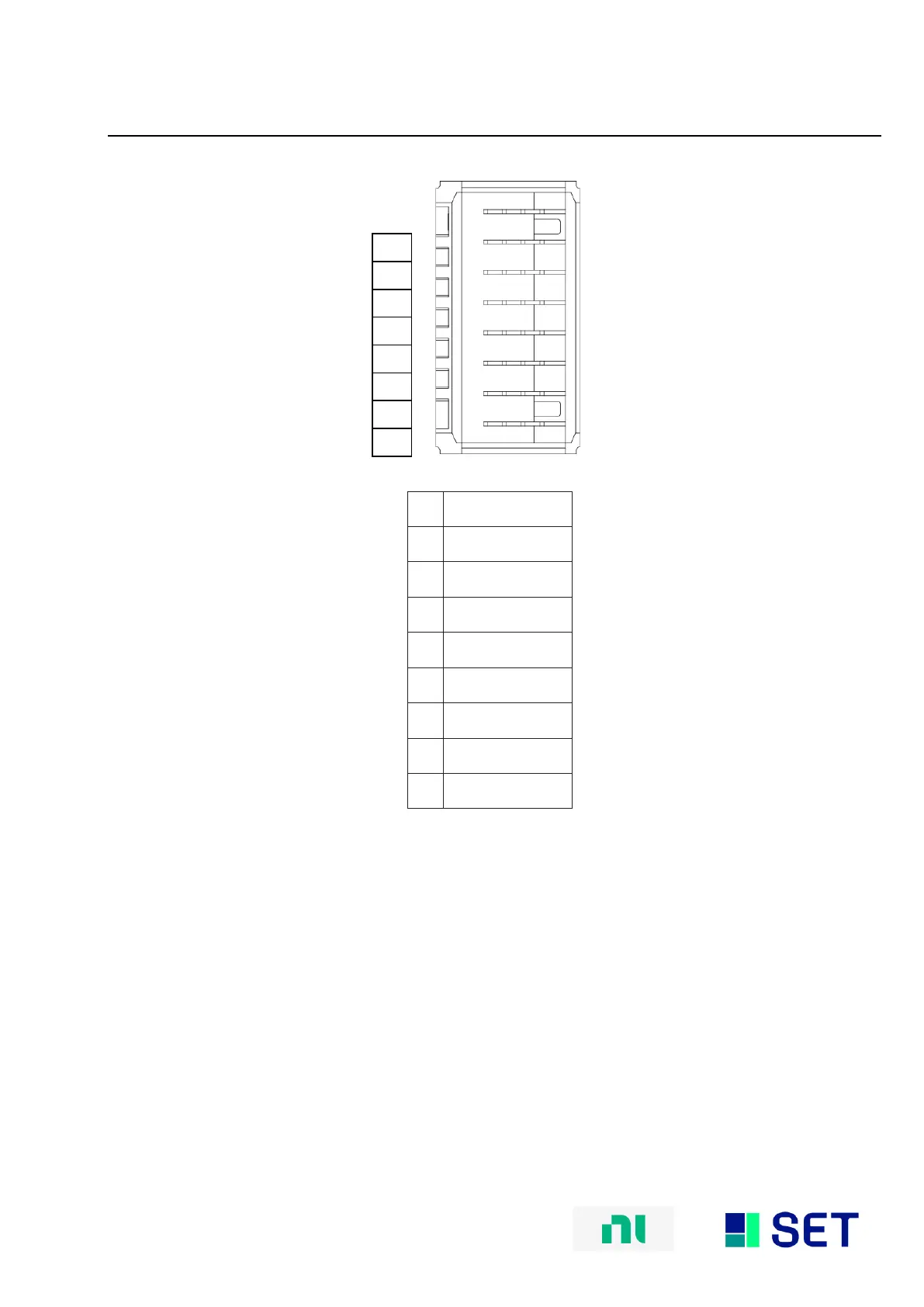

XJ3 Connector Pinout (Rear)
Pins
Signal
H
Instrument_0+
G
Instrument_0-
F
Instrument_1+
E
Instrument_1-
D
Fault_D
C
Fault_C
B
Fault_B
A
Fault_A
XJ3 Connector Pin Assignments
H
G
F
E
D
C
B
A
