Setec Power DC Quick EV Charger - Page 9

9

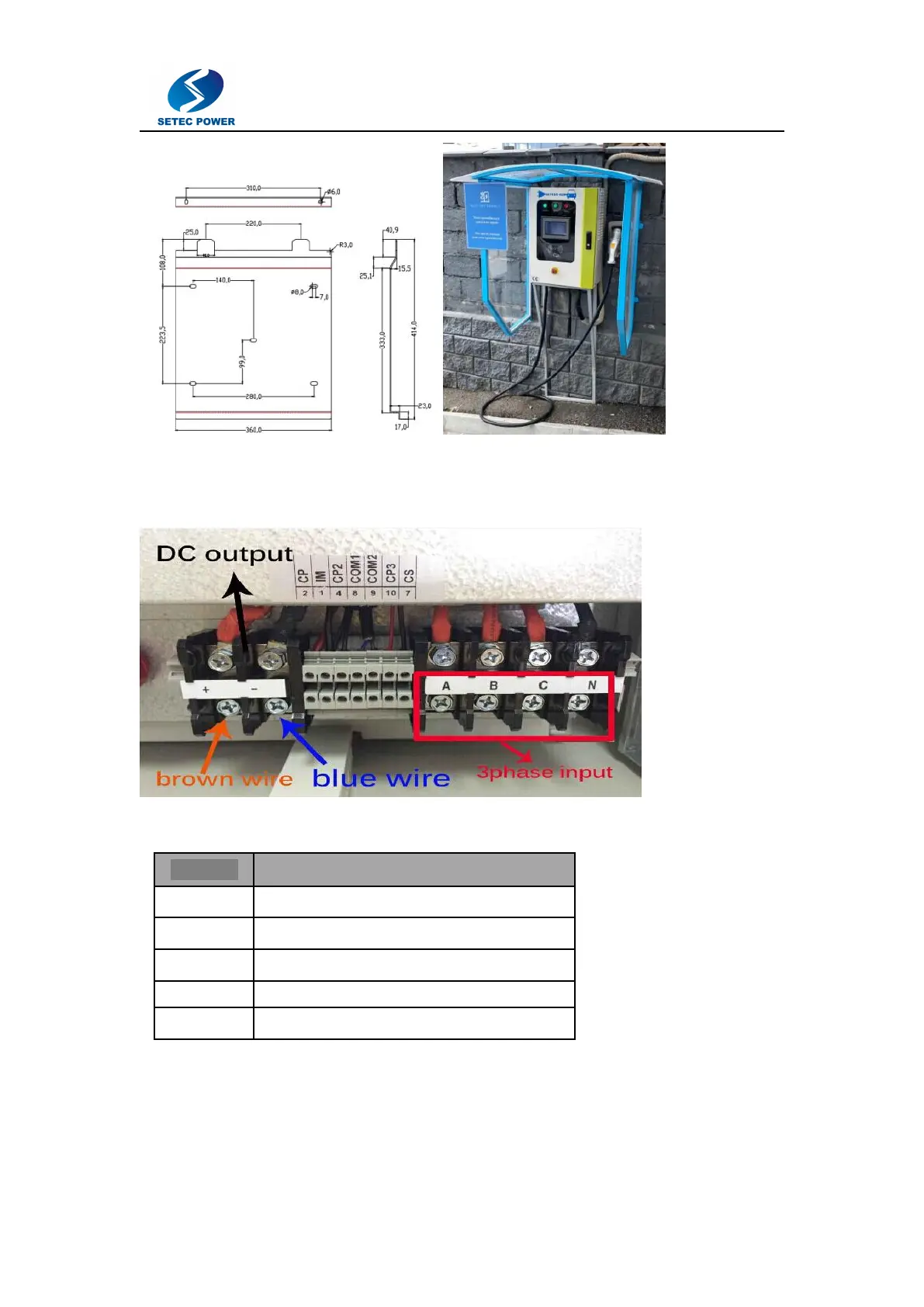

③ Wiring Instructions.
AC input:
Noted: 3 phase (380V) AC input cable diameter: 10mm
2
;
1 Phase (220V) AC input cable diameter: 25mm
2
Number
Terminal Assignment
A
Phase 1 (item L1)
B
Phase 2 (item L2)
C
Phase 3 (item L3)
N
Neutral
PE
Ground
