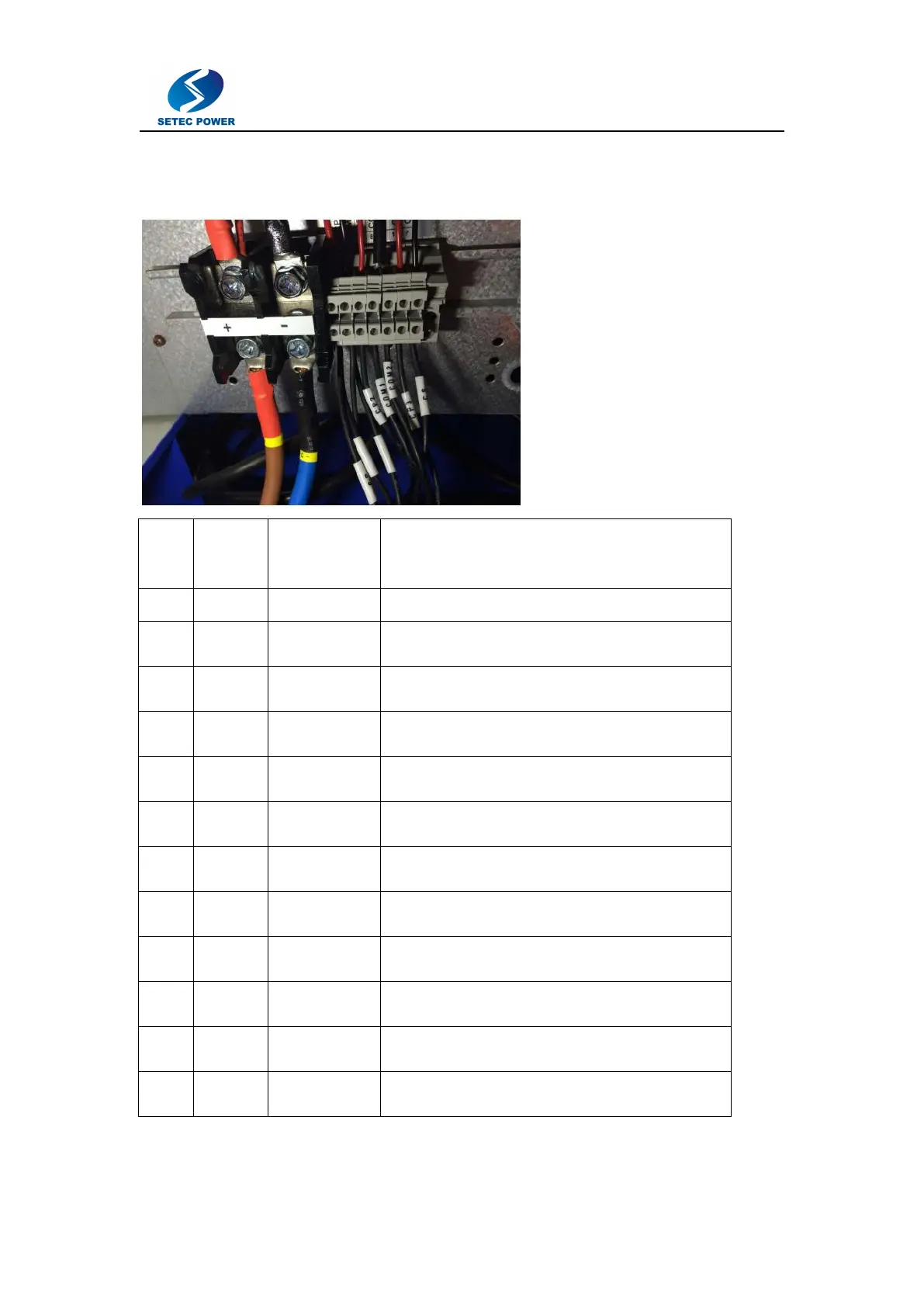

DC output connector:
1. Chademo
Pin
No.
Line
number
CHAdeMO
definition
function description
1
1
IM
Grounding wire
2
2
CP
Charger sequence signal 1
3
NC
NC
4
6
CP2
Vehicle charge permission
5
Blue
DC-
DC output -cathode
6
Brown
DC+
DC output -anode
7
7
CS
Connector proximity detection
8
8
COM1
CAN-H
9
9
COM2
CAN-L
10
3
CP3
Charger sequence signal 2
4
EL-
Electromagnet&LED - cathode
5
EL+
Electromagnet&LED - anode
Line number 4 and line number 1 should be connected together,it means EL- connect IM
Line number 5 and line number 2 should be connected together,it means EL+ connect CP
