Installing the Mounting Plate
The housing holds the curtain, control, battery, and the motor assembly for the Model
600 unit. The housing sits on a mounting plate, which you fasten to the wall over the
elevator frame through predrilled holes.

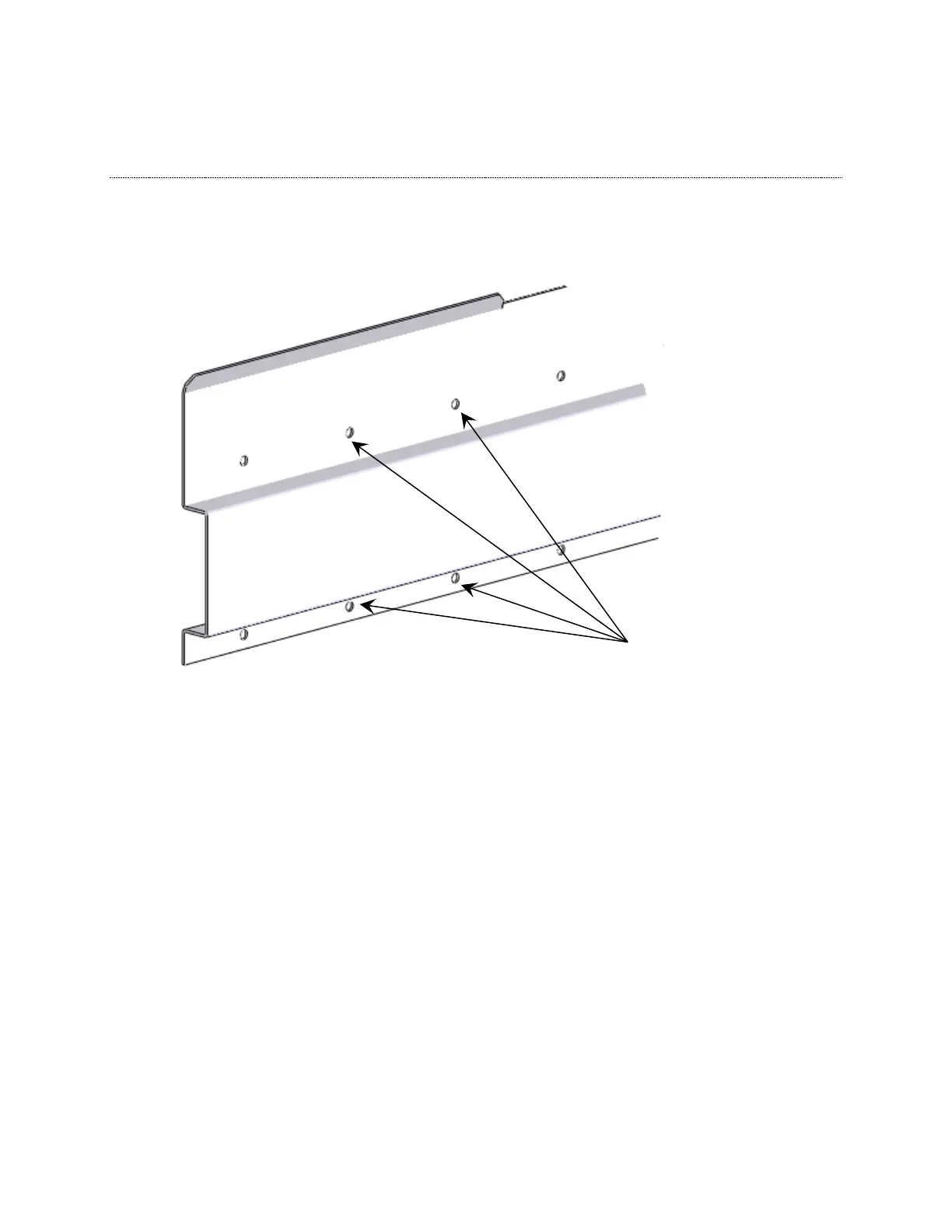

Model 600 component:
mounting plate
Tools/Materials:
° 25 foot measuring tape
° safety eye wear
° hand drill
° permanent marker
° 3 ft magnetic level
° 8-10 wall fasteners, drill bit, and driver appropriate for the material (see
Appendix A for recommended fasteners)
mounting plate
