SGM P-6 - Installation Standard Fixture; Identification and Terminology

8
Product Version 1.0 | Revision E | Released 2022-12-09
INSTALLATION STANDARD FIXTURE
Illustrations might vary from received products. This is subject to change without notice.

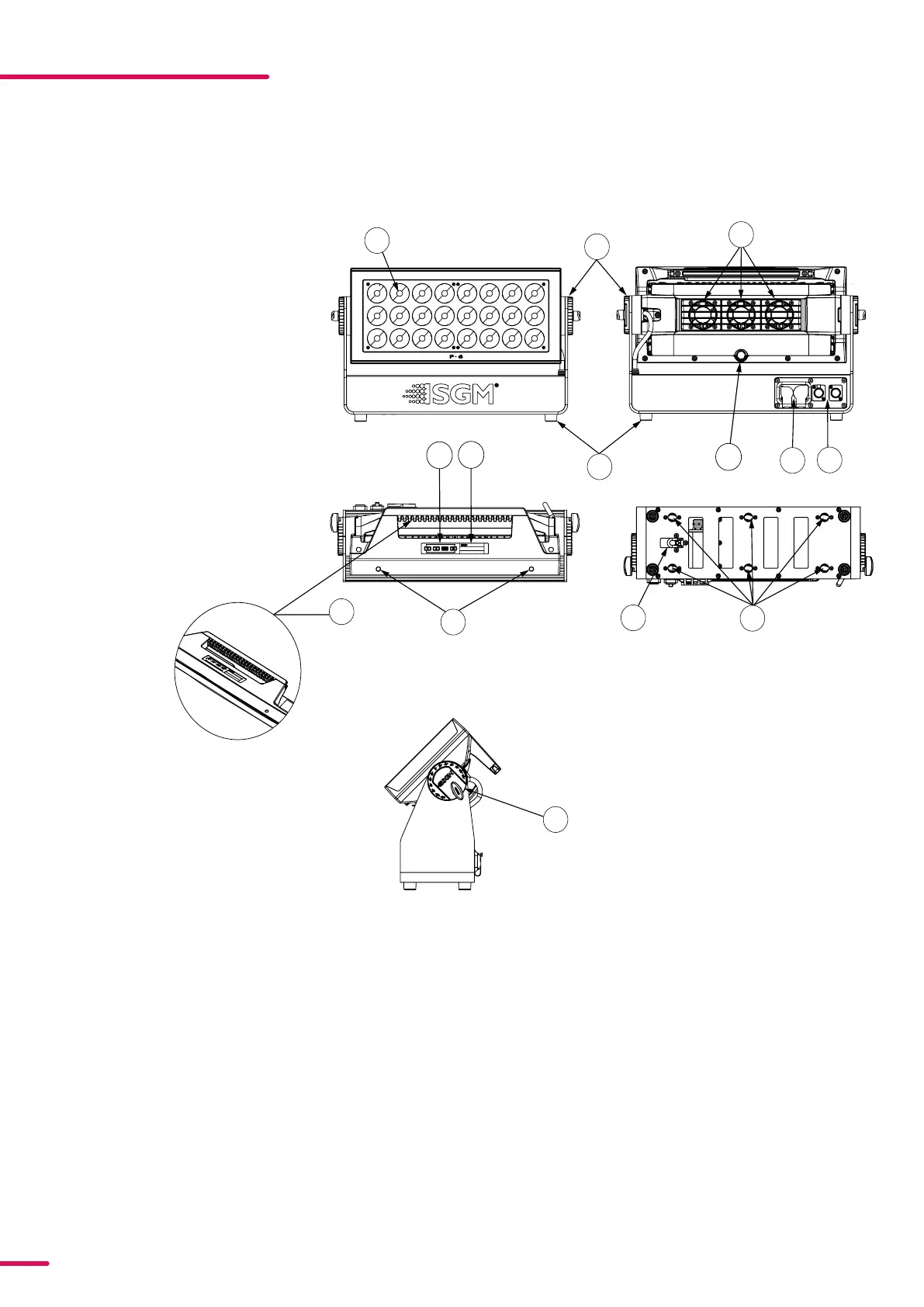

IDENTIFICATION AND TERMINOLOGY
B
A
A: 24 x RGBW LEDs
B: Tilt lock
C: Cooling fans
D: Control panel
E:
OLED Display
F: Rubber feet
G: GORE-TEX membrane
H: DMX in and out
I: Power in and out
J: Handle
K: Barndoors attachment points
L: Safety wire attachment point
M: Holes for Omega bracket / M-10 screws (x6)
C
B
I
H
L
M
G
D
E
J
K
P 6
F
