SET UP

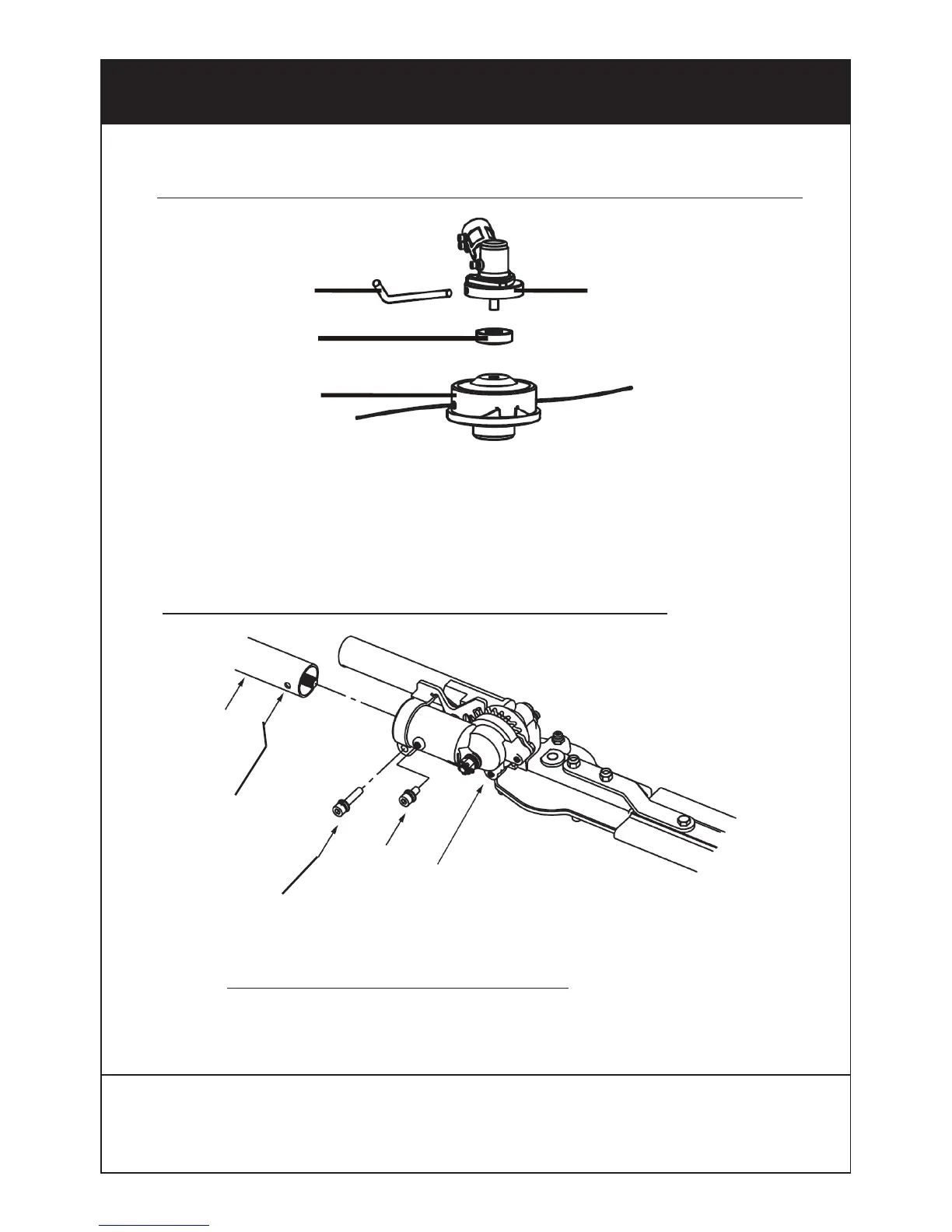

INSTALLING THE NYLON LINE (NYLON CUTTER HEAD)
Gear case
Key
Collar ring
Nylon spool
1- Insert the key wrench into the gear case locking hole.
2- Screw the collar ring on the shaft thread.
3- Screw the nylon spool on the shaft thread.
4- Check the spool is secured tightly.
ATTACHING THE TRIMMING MECHANISM
Attachment
tube
Screw
hole
Fastening
bolt
Screw
Gear
case
(Instructions to follow on page 10)
