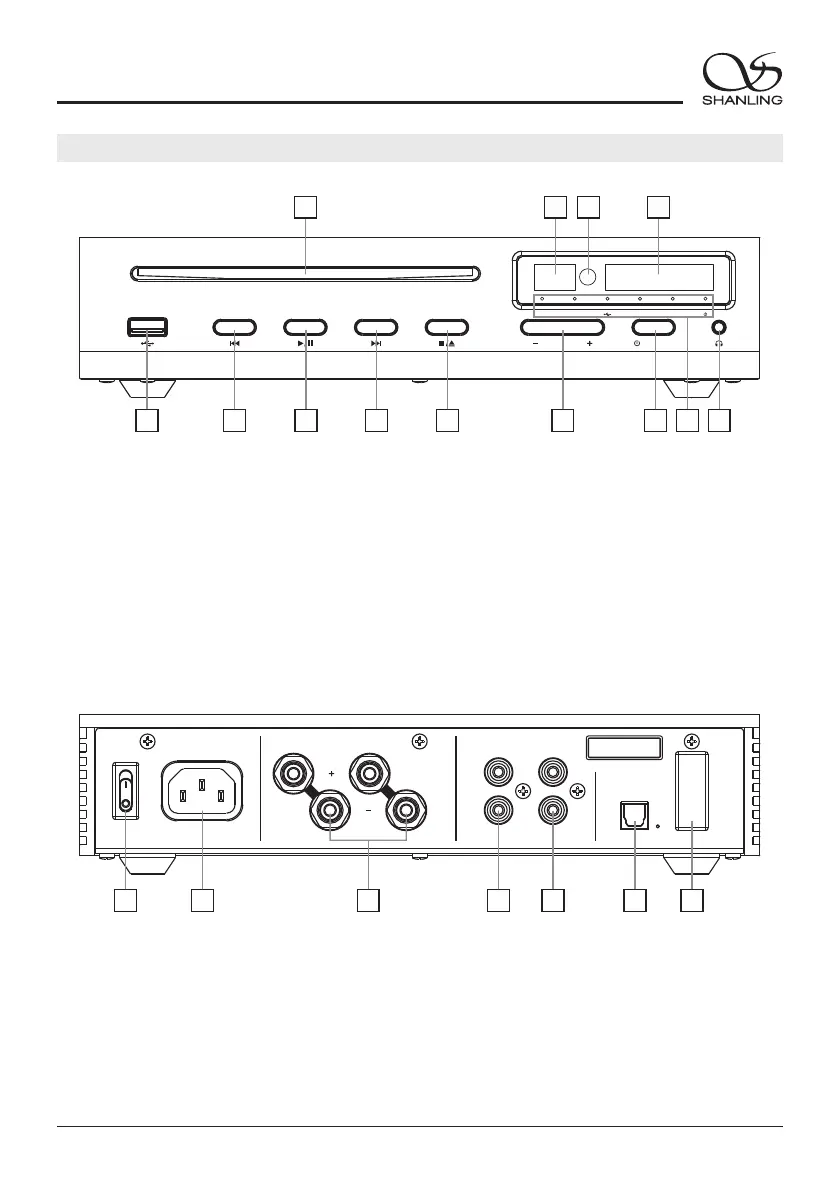

Parts Name
5
1. CD Drive
2. Volume Display
3. Remote Control Receiver
4. Multifunction Display
5. USB Port
6. Previous Track
7. Play/Pause
8. Next Track
9. Stop & Eject Button
10. Volume Button
11. Power/Source Selector Button
12. Status Indicator
13. 3.5mm Single Ended Headphone Output
1 2 43
6 7 8 9 10 11 12 13
1 2 4 5 76
1. Power Switch
2. Power Connector
3. Speaker Output Port
4. AUX Analog Input
5. PRE Analog Output
6. Digital Optical Output
7. Bluetooth Antenna
