Sharp 19J-M100 - CABINET PARTS

33
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
19J-M100/100S/150/CJ19M10
20J-M100/CJ20M10/20MJ10
?
CH
>
–
VOL
+
VIDEO IN AUDIO
POWER
9
CH
8
–
VOL
+
VIDEO IN AUDIO
POWER
1
1-1
1-2
1-3
1-4
2
1
1-1
1-2
1-3
1-4
2

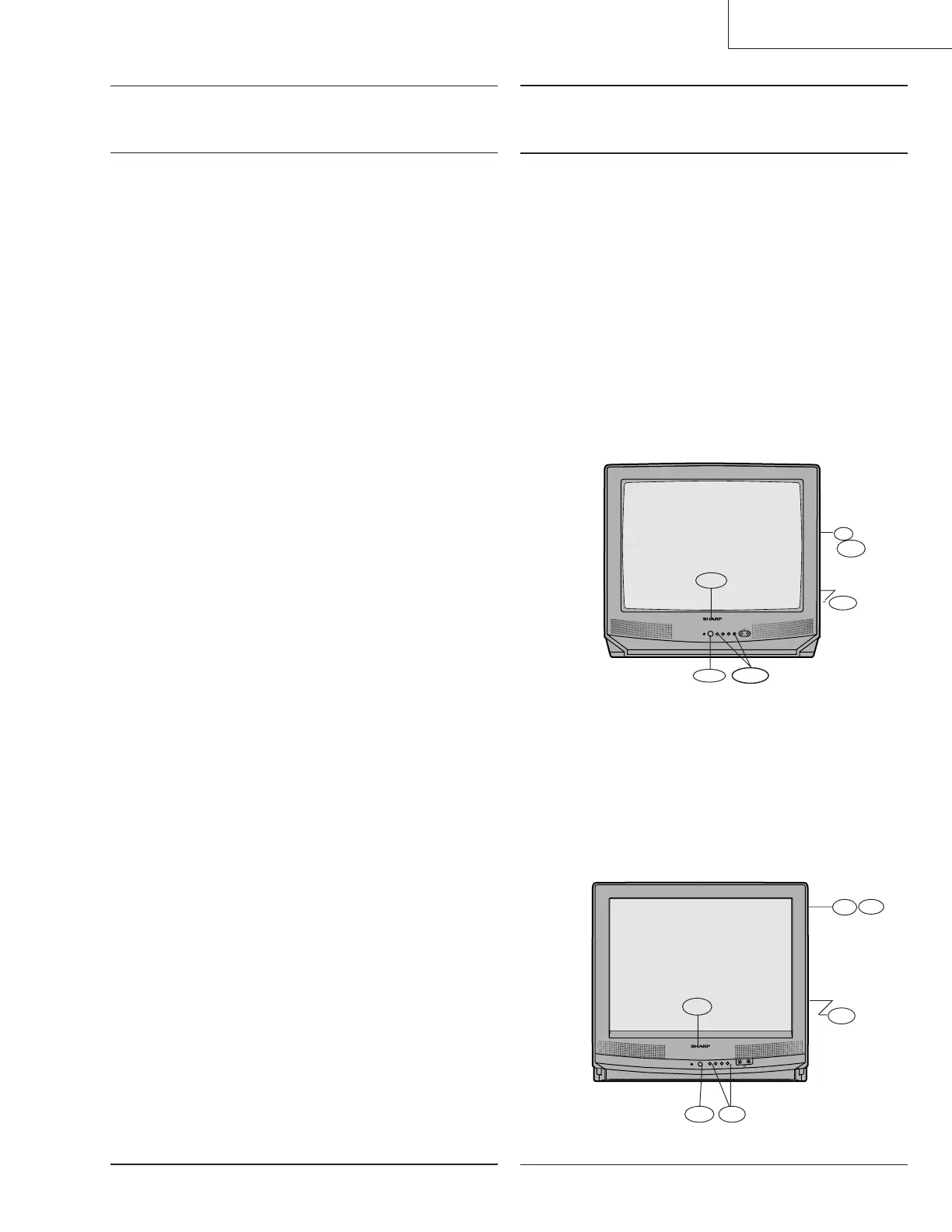

CABINET PARTS
DUNTK9274WEV0/V2
DUNTK9317WEV0 CRT UNIT
MISCELLANEOUS PARTS
P851 QPLGN0561CEZZ J Plug AB
P852 QPLGN0461CEZZ J Plug AB
SC851 QSOCV0840CEZZ J Socket AK
or QSOCV0826CEZZ
(19J-M100/150/CJ19M10/20J-M100/CJ20M10)
SC851 QSOCV0913CEZZ
or QSOCV0929CEZZ
(19J-M100S/20MJ10)
19J-M100/19J-M100S/CJ19M10/20MJ10
1 CCABA1266MES2 M Cabinet Front Ass'y BB
1-1 _ M Cabinet Front _
1-2 GCOVA1031MEKA M Cover AD
1-3 HBDGB3009MESA M Badge "sharp" AC
1-4 JBTN-1090MEKA M Button,CH/VOL-up down AD
2 GCABB1130MEKA M Rear Cabinet AX
19J-M150
1 CCABA1266MES1 M Cabinet Front Ass'y BD
1-1 _ M Cabinet Front
1-2 GCOVA1031MEKA M Cover AD
1-3 HBDGB3009MESA M Badge "sharp" AC
1-4 JBTN-1090MEKB M Button,CH/VOL-up down AD
2 GCABB1130MEKB M Rear Cabinet AZ
20J-M100/CJ20M10
1 CCABA1272MES0 M Cabinet Front Ass'y BF
1-1 _ M Cabinet Front _
1-2 GCOVA1034MEKA M Cover _
1-3 HBDGB3009MESA M Badge "sharp" AC
1-4 JBTN-1098MEKA M Button,CH/VOL-up down _
2 GCABB1126MEKA M Rear Cabinet AX
