Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
33
TRANSISTORS
Q852 VS2SC2229O/1E J 2SC2229 (O) AD
Q854 VS2SC2229O/1E J 2SC2230 (O) AD
Q856 VS2SC2229O/1E J 2SC2231 (O) AD
Q881 VS2SA1266-Y-1 J 2SA1266 (Y) AA
or
VS2SA1015Y/1E
DIODES
You can substitute "RH-DX0045GEZZ" or "VHD-DX0446CEZZ" for
"VHD1SS119//-1".
D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D885 VHD1SS119//-1 J Diode AB
COIL
L851 VP-DF151K0000 J Peaking 150µH AB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCCCY1HH271J J 270p 50V Ceramic AA
C852 VCCCCY1HH271J J 270p 50V Ceramic AA
C853 VCCCCY1HH271J J 270p 50V Ceramic AA
C854 RC-KZ0029CEZZ J 0.01 1.4kV Ceramic AC
C881 VCEA0A1CW106M J 10 16V EL. AB
C883 VCEA0A1CW336M J 33 16V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide]
R851 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R852 VRD-RA2BE221J J 220 1/8W Carbon AA
R853 VRS-CY1JF121J J 120 1/16W M-Ox. AA
å R857 VRS-VV3AB123J J 12k 1W M-Ox. AA
R858 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R859 VRD-RA2BE470J J 47 1/8W Carbon AA
R860 VRS-CY1JF221J J 220 1/16W M-Ox. AA
R861 VRS-CY1JF121J J 120 1/16W M-Ox. AA
å R865 VRS-VV3AB123J J 12k 1W M-Ox. AA
R866 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R867 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R868 VRD-RA2BE221J J 220 1/8W Carbon AA
R869 VRS-CY1JF121J J 120 1/16W M-Ox. AA
å R873 VRS-VV3AB123J J 12k 1W M-Ox. AA
R874 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R881 VRS-CY1JF561J J 560 1/16W M-Ox. AA
R882 VRS-CY1JF391J J 390 1/16W M-Ox. AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R886 VRS-CY1JF431J J 430 1/16W M-Ox. AA
R887 VRS-CY1JF470J J 47 1/16W M-Ox. AA
MICELLANEOUS PARTS
P851 QPLGN0561CEZZ J Plug, 5-pin (GBN) AB
P852 QPLGN0461CEZZ J Plug, 4-pin (YBN) AB
SC851 QSOCV0929CEZZ J CRT Socket AM
or
QSOCV0933CEZZ
PWB-B : DUNTK9533WEV4(20MU11)
CRT UNIT
1CCABA0006WEH5 XFront Cabinet Ass'y
(20MU11)
1-2GCOVA0003GJSAXCover for R/C
1-3HBDGB1001GJSAXBadge, "SHARP"
1-4JBTN-0003GJSAXButton
2 GCABB0156GJKA X Rear Cabinet

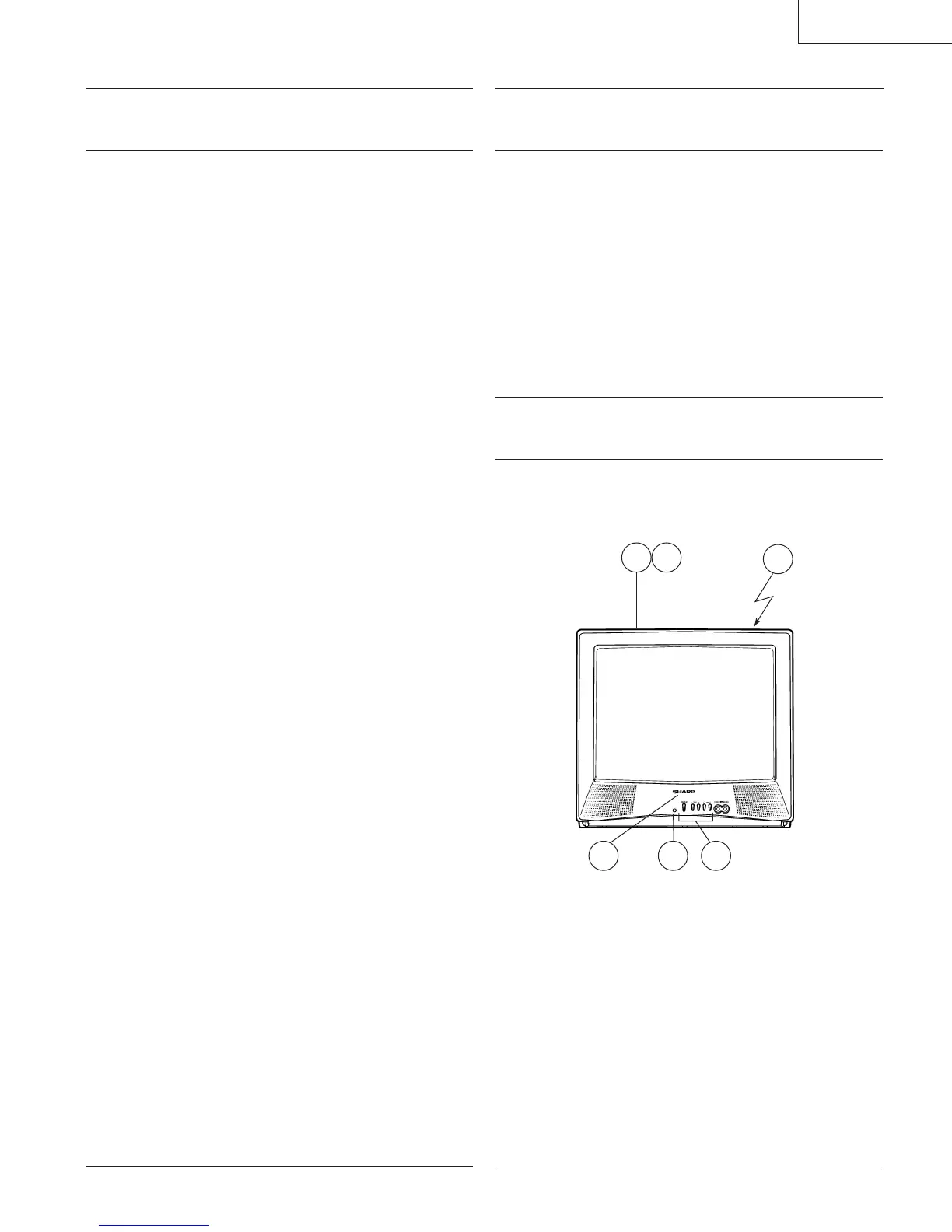

CABINET PARTS LOCATION
CABINET PARTS
1
2
1-1
1-3 1-2 1-4
20MU11
