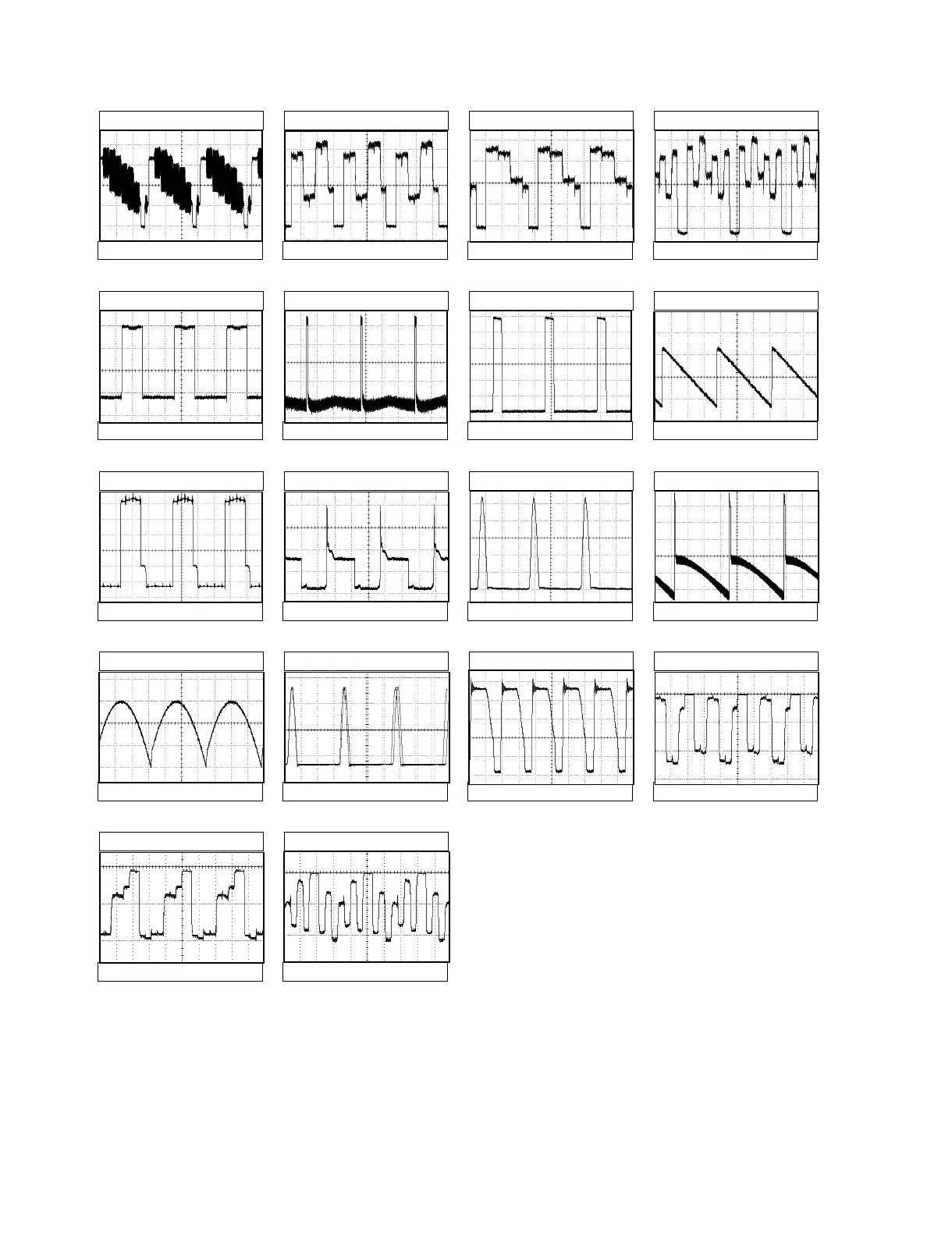

CHAPTER 6. WAVEFORMS
(1)1.94 Vp-p
Horiz. Rate
(2)4.54 Vp-p
Horiz. Rate
(3)3.68 Vp-p
Horiz. Rate
(4)4.22 Vp-p
Horiz. Rate
(5)3.14 Vp-p
Horiz. Rate
(6)4.92 Vp-p (7)5.88 Vp-p
Horiz. Rate
(8)1.35 Vp-p
Vert. Rate
(9)2.81 Vp-p
Horiz. Rate
(10)37.80 Vp-p
Horiz. Rate
(11)1076 Vp-p
Horiz. Rate
(12)64.28 Vp-p
Vert. Rate
(13)5.96 Vp-p
Vert. Rate
(14)148.00 Vp-p
Horiz. Rate
(15)498.00 Vp-p
-
(16)122.00 Vp-p
Horiz. Rate
Vert. Rate
(18)107.00 Vp-p
Horiz. Rate
(17)92.0 Vp-p
Horiz. Rate
