37
AIR
or
CABLE
INPUT 1
(IN-1)
Rear
INPUT 2
(IN-2)
Front
L To watch video material playback.
• Press the Remote’s
INPUT
to select VIDEO INPUT mode to which the video equipment you wish to
play.
• The external VIDEO INPUT mode will change as follows each time the
INPUT
button is pressed.
• INPUT mode can be selected by pressing either the
CH UP
(
8
) on the TV remote control when the
TV is set to the highest channel stored in memory, or by pressing the
CH DOWN
(
9
) when it is set to
the lowest channel.
Note:
• When connecting video or audio equipment to the television, be sure that the power is turned off in
order to prevent damage to either the television or the equipment being connected.
• S-Video terminal has priority over a VIDEO terminal (IN-1). When you want to watch pictures from
video equipment connected to a VIDEO terminal, unplug equipment connected to the corresponding
S-VIDEO terminal.
• It is the intent of SHARP that this product be used in full compliance with the copyright law of the
United States and that prior permission be obtained from copyright owners whenever necessary.
• For detailed information on the connection and use of auxiliary equipment, refer to the instruction
manuals of the equipment being used.
• The connection cords can be obtained from your local video store.

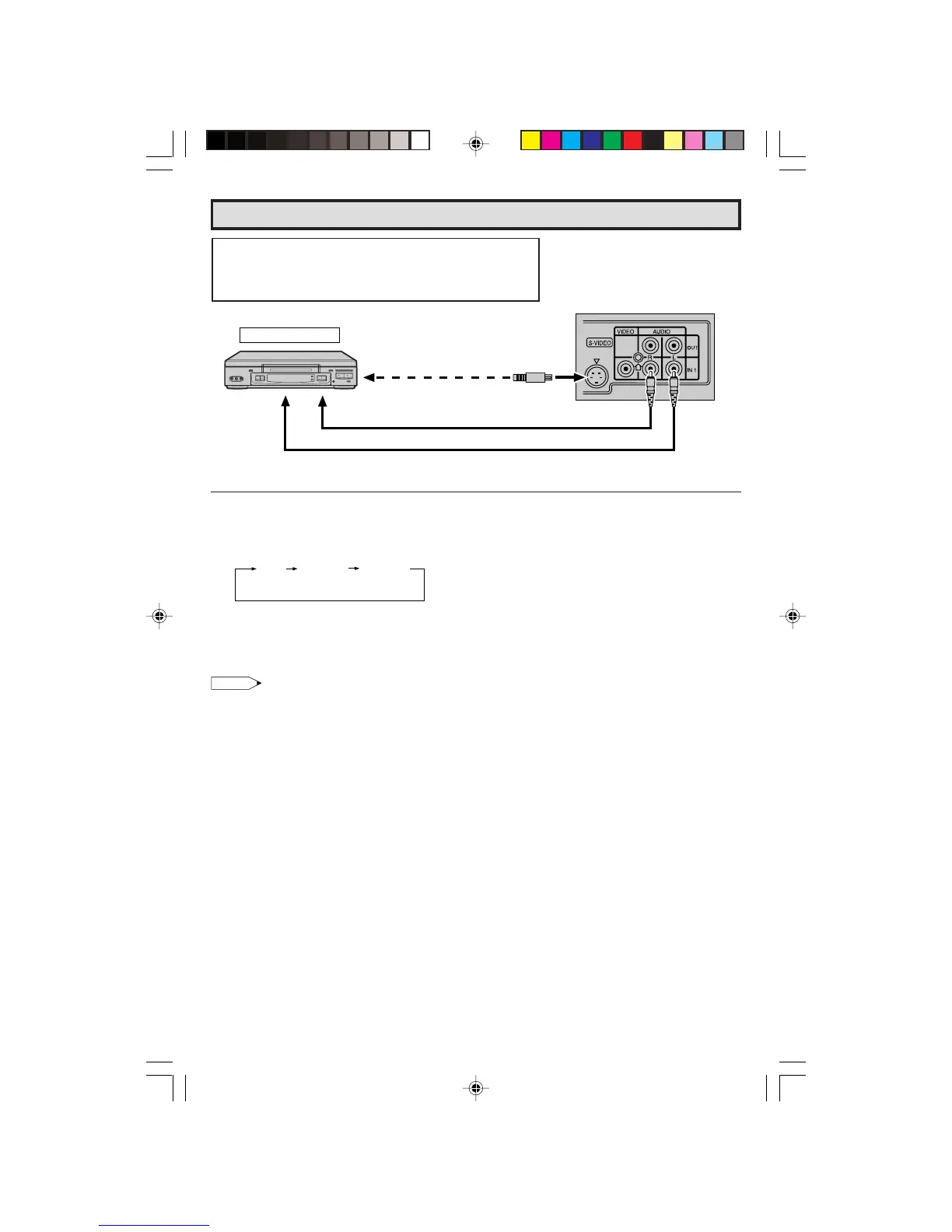

(Rear connection
terminals of TV)
Video Equipment
Notes:
• The S-VIDEO INPUT terminals (IN-1) isused to obtain a higher quality
image by importing signal separated into color and brightness signals.
• The S-VIDEO INPUT terminal is for image signal. Audio signal is to be
connected to the IN 1 AUDIO terminals (left and right).
To S-VIDEO OUTPUT (When your
video equipment has an S-VIDEO
output terminal)
To VIDEO OUTPUT
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (L)
Using the Video and Audio Input Jacks (Continued)
36-37 32/36R-S400.p65e 16/4/01, 11:37 AM37
