38

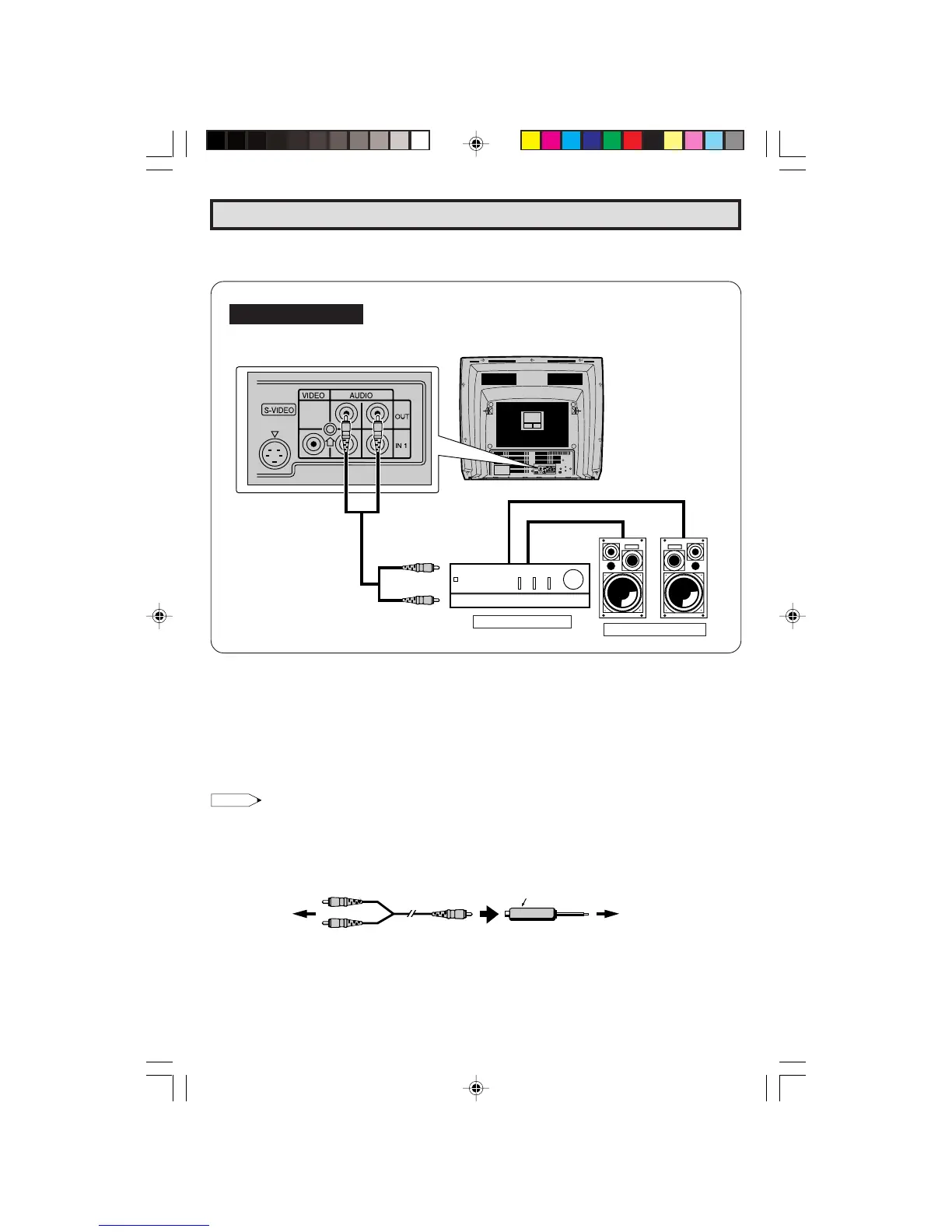

Using the Audio Output Jacks
Stereo Amplifier
Speaker System
Plug adapter
Pin jack/Mini plug
To the equipment
being connected
Pin plug x 2 Pin Plug
To the TV
To the audio
input terminals
(1) Before connecting the cord, turn on the TV and adjust the VOLUME control on the TV for a moderate
listening level.
(2) Turn off the TV and connect the audio cord to the AUDIO LINE OUTPUT JACKS on the TV.
(3) Turn the TV set and stereo amplifier on.
(4) If you desire, you can turn off the sound to the TV’s internal speakers by SPEAKER mode. See page
14, 15.
(5) Adjust the VOLUME control on the stereo amplifier for a moderate listening level.
(6) Control of the audio can be done using the audio controls (STEREO/MONO/SAP, VOLUME, and
MUTE), from either the remote control, or directly from the TV set.
Note:
• For detailed information on the connection and use of auxiliary equipment, refer to the operation
manuals of the equipment being used.
• When connecting monaural equipment to the AUDIO INPUT or OUTPUT of this set, use an audio
connection cord and plug adaptor as shown below.
• For optimal sound quality, it is recommended to keep the TV’s audio output level high.
L These jacks are used for connecting a standard studio amplifier. Control of STEREO/MONO/
SAP, VOLUME, and MUTE are retained at the TV. These jacks relay the audio signal of all
programs being displayed on the TV screen.
(AUDIO OUTPUT JACKS are located on the rear of the cabinet.)
CONNECTIONS
(Rear connection terminals of TV)
38 32/36R-S400.p65e 16/4/01, 11:37 AM38
