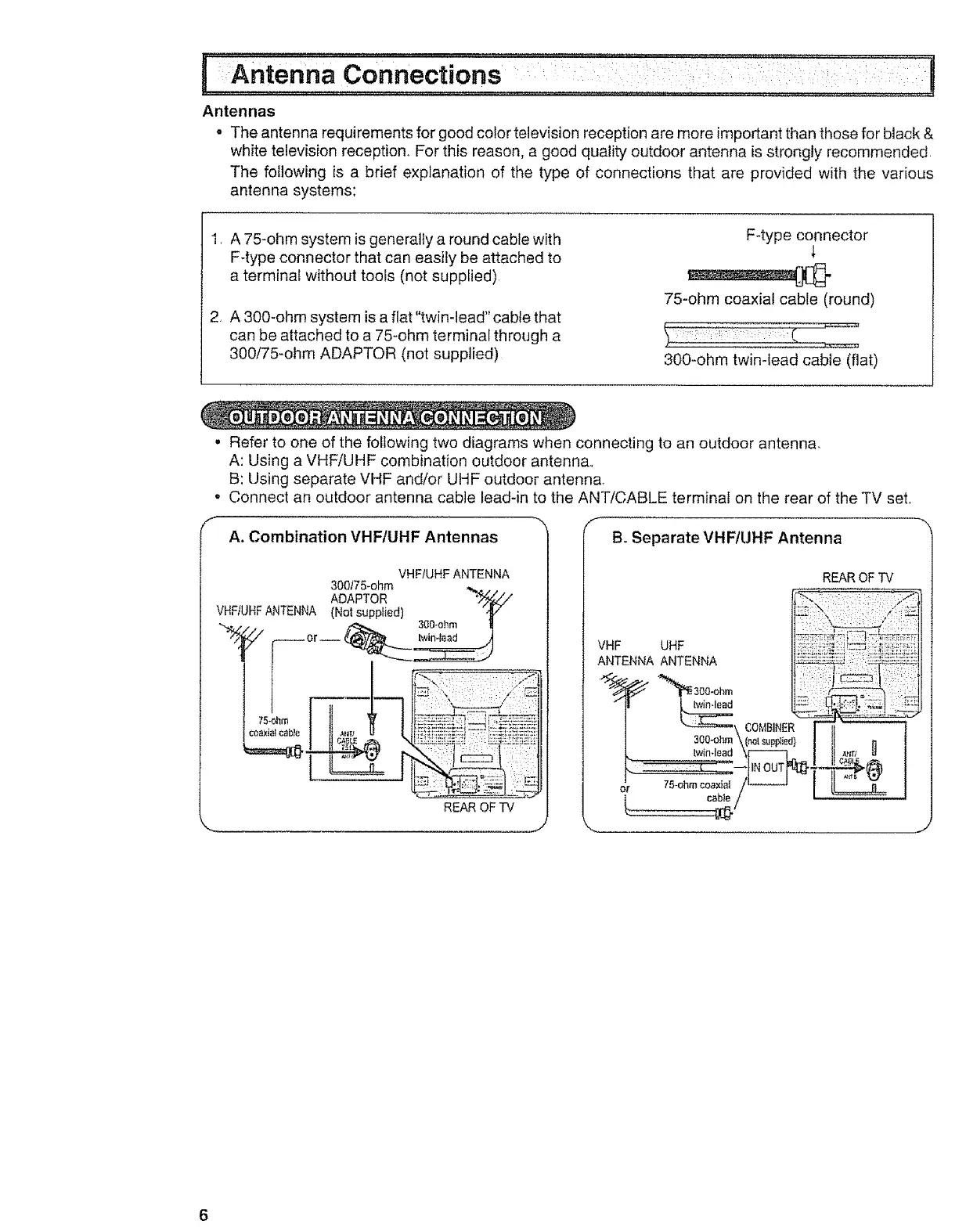

Antennas
o The antenna requirements for good color television reception are more important than those for black &
white television reception.. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the various
antenna systems:
1. A 75-ohm system is generally a round cable with
F-type connector that can easily be attached to
a terminal without tools (not supplied)
2, A 300-ohm system is a flat "twin-lead"cable that
can be attached to a 75-ohm terminal through a
300175-ohm ADAPTOR (not supplied)
F4ype connector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
• Refer to one of the following two diagrams when connecting to an outdoor antenna,
A: Using a VHF/UHF combination outdoor antenn&
B: Using separate VHF and/or UHF outdoor antenna.
o Connect an outdoor antenna cable lead-in to the ANT/CABLE terminal on the rear of the TV set,
A. Combination VHF/UHF Antennas B. Separate VHF/UHF Antenna
VHF/UHF ANTENNA
300175-ohm _,,.
ADAPTOR 5_/-_/
VHF/UHFANTENNA (Not supplied) "4,1/
"_,L//., _ 300-ohm I_
,1y
1 .........-1
REAR OF TV
J
REAR OF TV
ANTENNA ANTENNA _2_:_ _ ::::;:]_]l
/_\ C°MBIN_Rr-
I 300-ohm \(nol supplied) 1 n
L Iwin-lead\Fi--i-I I #_ a
[- ---------T--_ NN nlIT_ I _
75-ohm c _
To Next Page
