EN 9
ENGLISHDEUTSCH ESPAÑOLITALIANO FRANÇAISРУССКИЙPOLSKI

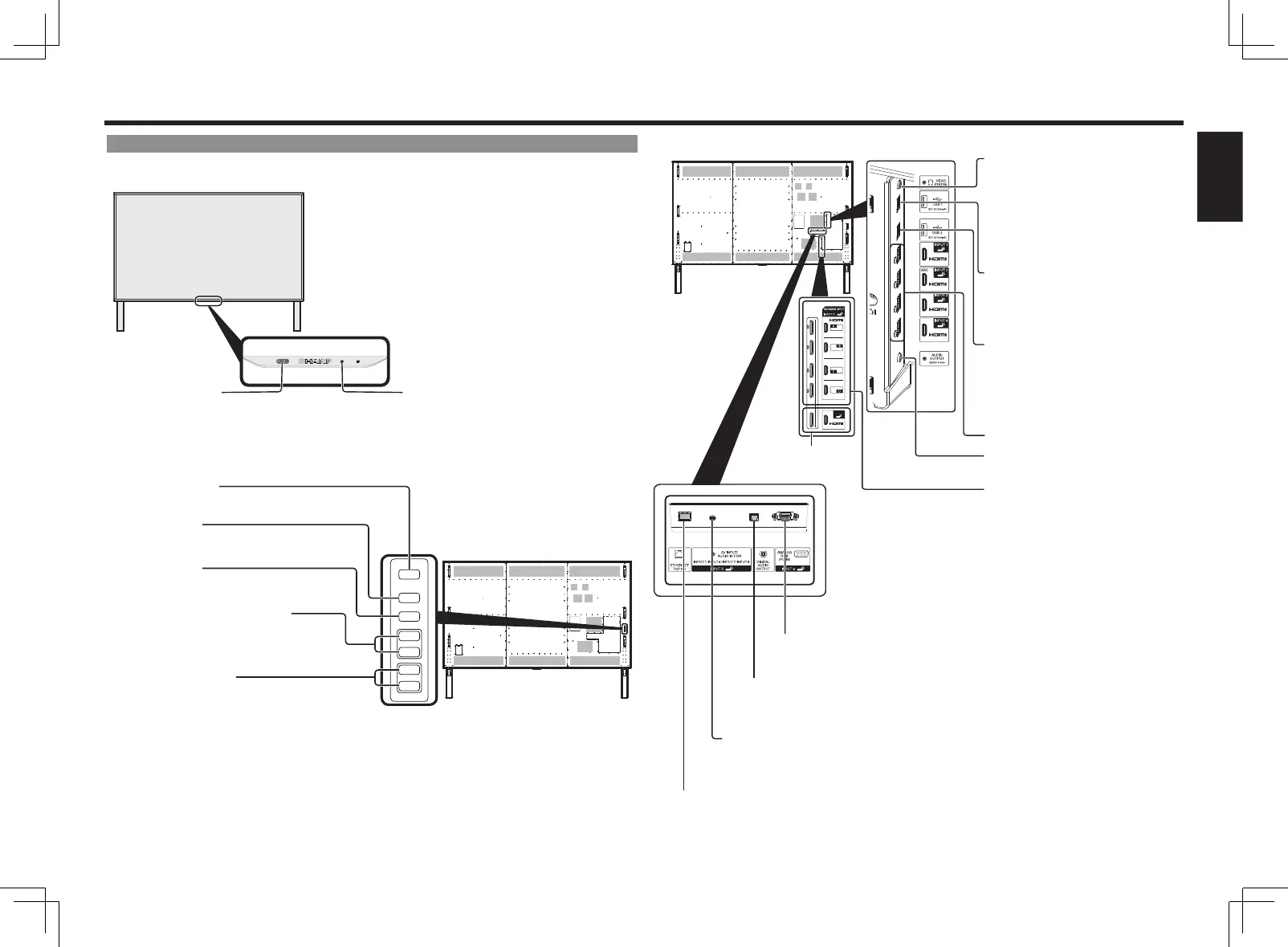

Part Names
Parts of the Monitor
Q
Front
Remote control light
receiving section
=> Page EN 4
Point the remote control unit
toward this part.
POWER lamp
White: ON
Off: Power OFF
Q
Main body controls
MENU button
forward/ backward buttons
Volume (+/-) buttons
On the Setup menu => “Right/Left cursor” button
“+” button functions as “Right cursor”, and
“-” button functions as “Left cursor”.
Power button
On the Setup menu => “Enter” button
INPUT button
On the Setup menu => “Upward/Downward
cursor” button
” button functions as “Upward cursor”, and
” button functions as “Downward cursor”.
Q
Rear
Headphone jack
(φ3.5 stereo mini jack)
Audio can be output from the speakers even
when headphones are connected. (Refer to
“Menu Operation” in the built-in Operation
Manual.)
USB1 terminal
Use this terminal to view photos, music, and
video stored in USB memory.
Input 7 A~D (HDMI x 4)
8K signal terminal
USB2 terminal
Analog audio output terminal
(φ3.5 stereo mini jack)
Input 6
Digital audio output terminal
(optical)
Input 5
AV INPUT
AUDIO IN FOR INPUT1/INPUT6/INPUT7/INPUT8
LAN terminal (10BASE-T/100BASE-TX)
Use this terminal for IP control, etc.
Input 1 to 4 (HDMI)
Input8 (HDMI)
8K signal terminal
