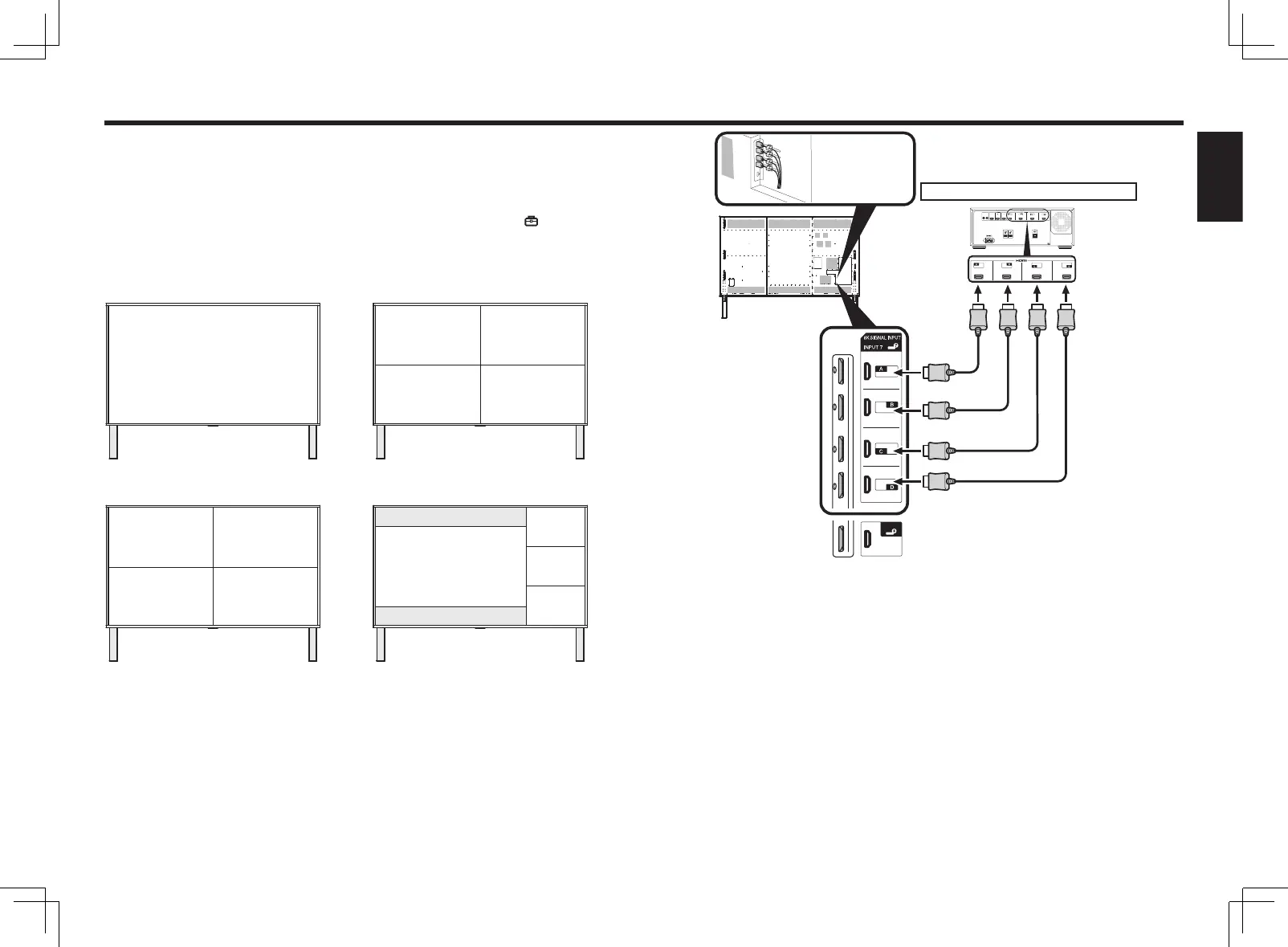

Connecting an 8K Video Device/Quad-screen display (4K or less)
• To connect the product to an 8K output (with 7680 x 4320 resolution) compatible device, use four Premium HDMI
Cables.
• Connect the devices properly so that the output signal from the device can be displayed at the appropriate
position. The display positions for the HDMI input terminals are shown on the below. (default)
• Multi-screen display by using 8K signal is not supported.
• In MODE2, 8K display is possible whenever any input signal to INPUT 7 (A to D) is synchronized.
• By factory default, the Monitor uses the audio to INPUT7-A.
• To change the setting, after switching to INPUT7, go to the Setup menu, select Setup >
(Option) > Terminal
setting > INPUT7 audio setting, and then select a terminal to input audio.
• Also refer to the operating instructions of the device to be connected.
• Commercially available Premium HDMI Cables are necessary.
INPUT7-A/B/C/D
To reduce loads on the
terminals and prevent
breakage, thread the
HDMI cables through
the cable clamps to
secure.
q
Rear side of Monitor
Premium HDMI cable
(Commercial Item)
* In Mode2.
In Mode1/3/4, connect to each device.
8K output compatible device*
INPUT7
INPUT7-A INPUT7-B
INPUT7-C INPUT7-D
INPUT7-A INPUT7-B
INPUT7-C INPUT7-D
INPUT7-A
INPUT7-B
INPUT7-C
INPUT7-D
Mode1 (4K x1)
Mode3 (4K x4) Mode4 (4K x4)
Mode2 (8K)
