CHAPTER 5. DISASSEMBLING PROCEDURE
Be sure to disconnect the power cord from the AC power outlet before starting the disassembly procedure. When reassembling the unit after repair-
ing, be sure to install screws to their original positions.
The screws used are not the same in specifications such as corrosion-resistant treatment, tip shape and length.
After the air conditioner is repaired or parts are replaced, measure insulation resistance of the equipment using an insulation resistance meter. If the
measured resistance is lower than 1 MW, inspect parts and repair or replace defective parts.
[1] INDOOR UNIT

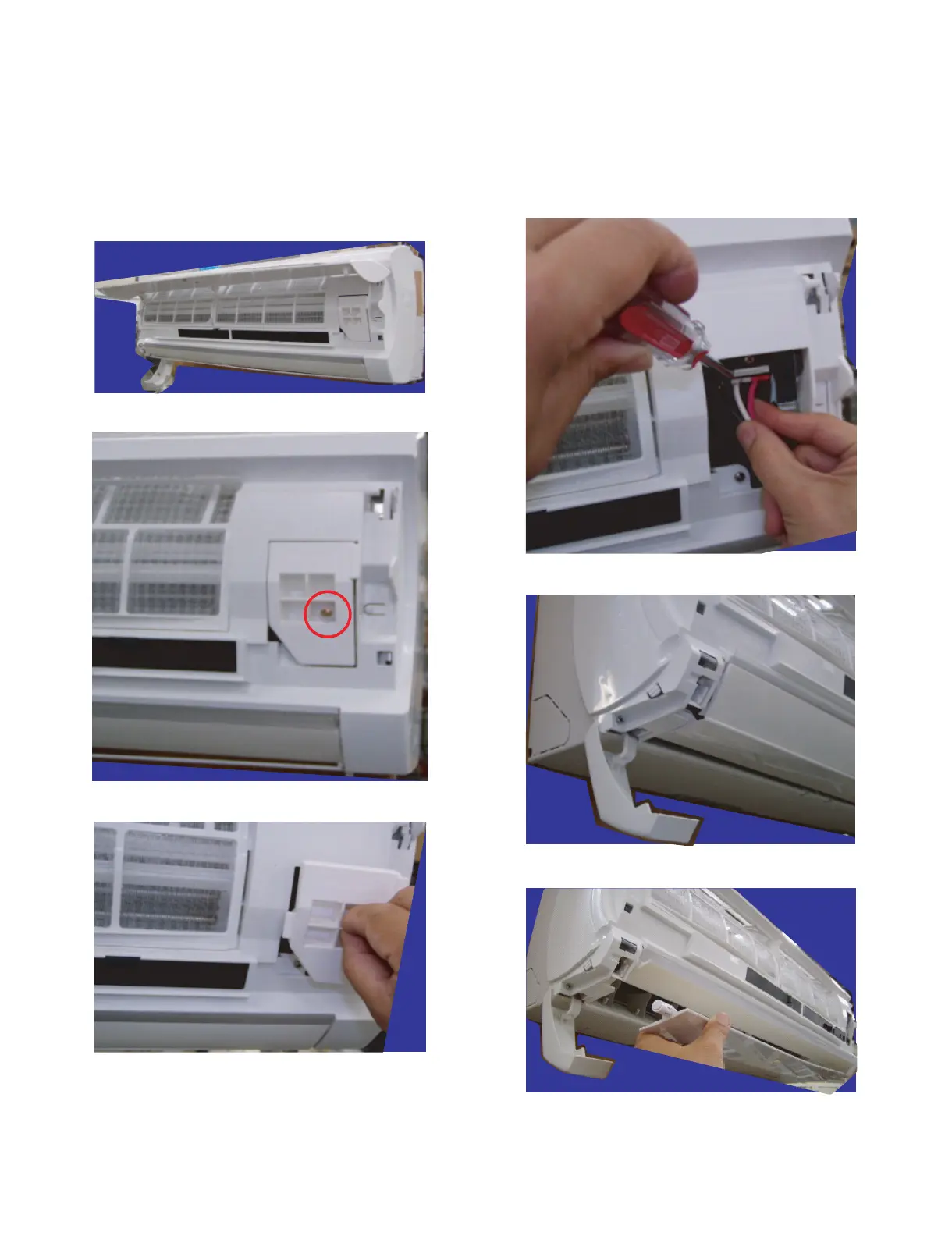

1) Open the front panel.
2) Remove the cord clamp retaining screw (1).
3) Remove the cord clamp.
4) Disconnect the VA wires.
5) Open the horizontal louver cover.
6) Remove the horizontal louvers.(2 pieces)
To Next Page
