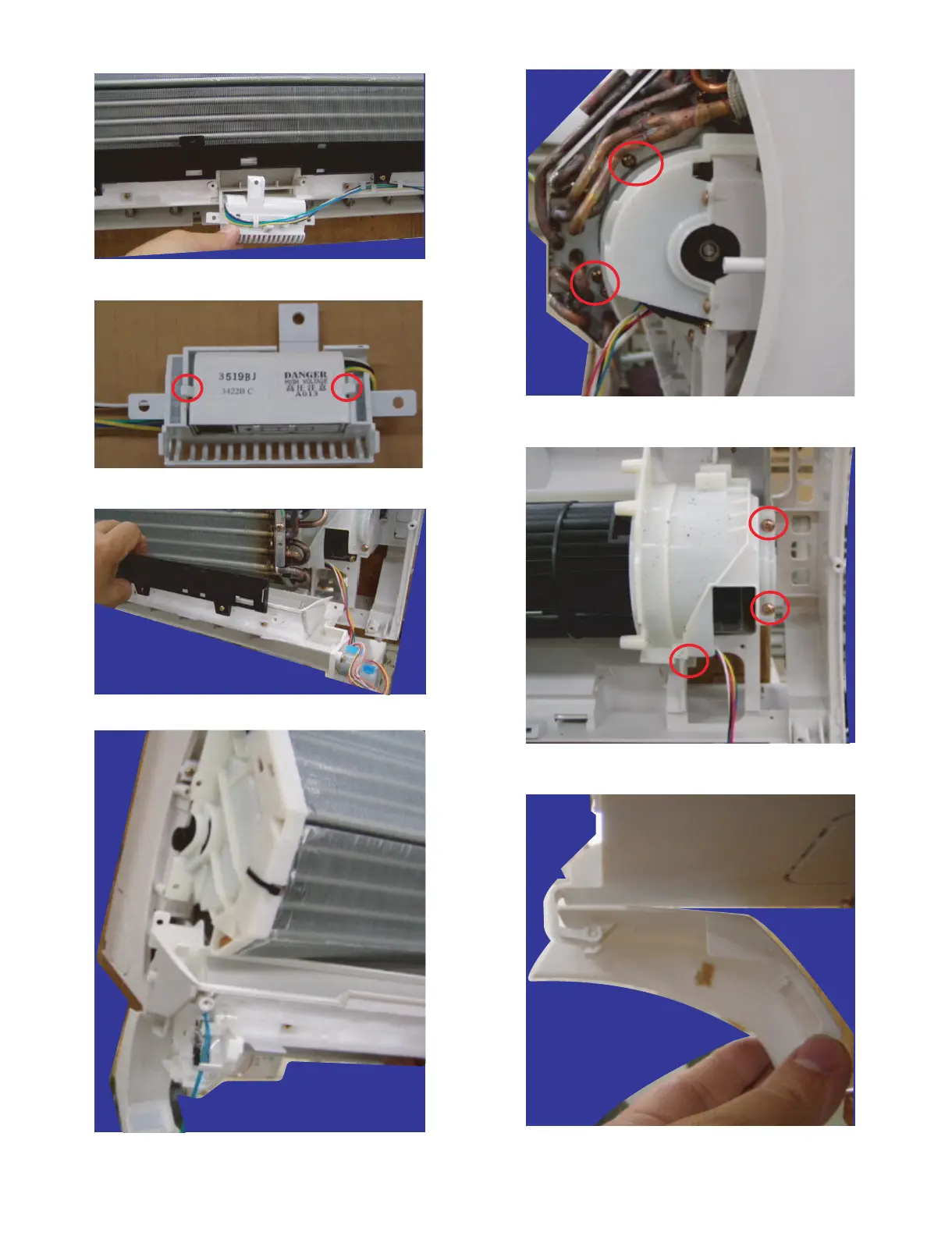

25)Remove the cluster holder.
26)Dismount the cluster (2 tabs).
27)Dismount the drain pan.
28)Then, disengage the left side.
29)Remove the heat exchanger retaining screws (2).
30)Disengage the heat exchanger.
31)Remove the motor cover retaining screws (3).
32)Disengage the horizontal louver cover (hinge). Move the cover to
the position shown in the diagram, then pull it to detach.
