Sharp AE-XM30GR - Page 22

AE-XM30GR
4 – 2

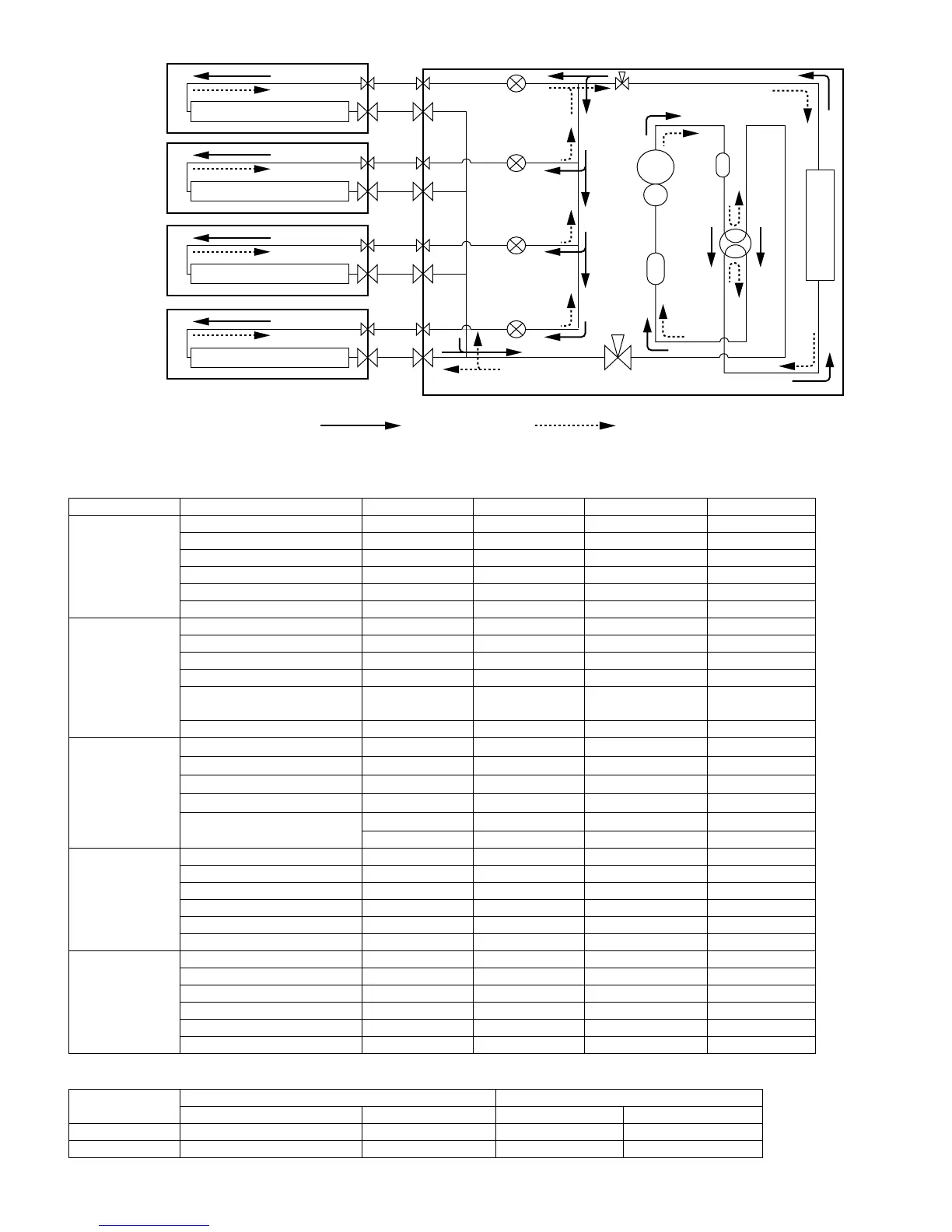

3. Cycle temperature and pressure in stop valve (AE-XM30GR)
Standard conditions (AE-XM30GR)
Running unit no operation mode Cool (MAX) Cool (Test run) Heat (MAX) Heat (Test run)
AY-XPM9FR &
AY-XPM7FR &
AY-XPM7FR &
AY-XPM7FR
(4 units)
(1) 94 80 77 55
(2) 40 36 15 6
(3) 11 13 29 25
(4) 13 16 -3 6
stop valve (gas side) 0.92MPa(abs) 1.1MPa(abs) 2.53MPa(abs) 1.93MPa(abs)
Frequency 80Hz 50Hz 90Hz 38Hz
GS-XPM18FGR
(1) 92 77 91 70
(2) 37 36 19 8
(3) 9 11 38 34
(4) 10 16 3 6
stop valve pressure
0.83MPa(abs) 1.03.MPa(abs) 3.58MPa(abs) 2.57MPa(abs)
Frequency
Frequency 62Hz 35Hz 72Hz 38Hz
AY-XPM12FR
(1 unit)
(1)
83
76 82 62
(2)
36 35 13 6
(3)
10 13 43 7
(4)
11 19
4
7
stop valve pressure Frequency
0.86MPa (abs)
1.07MPa (abs) 3.15MPa (abs) 2.37MPa (abs)
Frequency 41Hz 23Hz 50Hz 25Hz
AY-XPM9FR
(1 unit)
(1) 78 69 83 58
(2) 36 35 12 6
(3) 9 11 36 24
(4) 13 19 5 7
stop valve pressure Frequency 0.94MPa (abs) 1.11.MPa (abs) 3.20MPa (abs) 2.21MPa (abs)
Frequency 31Hz 30Hz 45Hz 20Hz
AY-XPM7FR
(1 unit)
(1) 74 69 75 59
(2) 35 35 10 6
(3) 9 11 32 24
(4) 16 19 6 7
stop valve pressure Frequency 0.99MPa (abs) 1.09.MPa (abs) 3.00MPa (abs) 2.24MPa (abs)
Frequency 24Hz 17Hz 35Hz 20Hz
indoor side Outdoor side
Dry-bulb temp. (C) Relative humidity (%) Dry-bulb temp. (C) Relative humidly (%)
Cooling 27 47 35 40
Heating 20 – 7 87
INDOOR UNIT
OUTDOOR UNIT
(AE-XM30GR)
UNIT D
UNIT C
UNIT B
UNIT A
Cooling heating
