CHAPTER 5. DISASSEMBLING PROCEDURE
[1] OUTDOOR UNIT
1. PROCEDURE

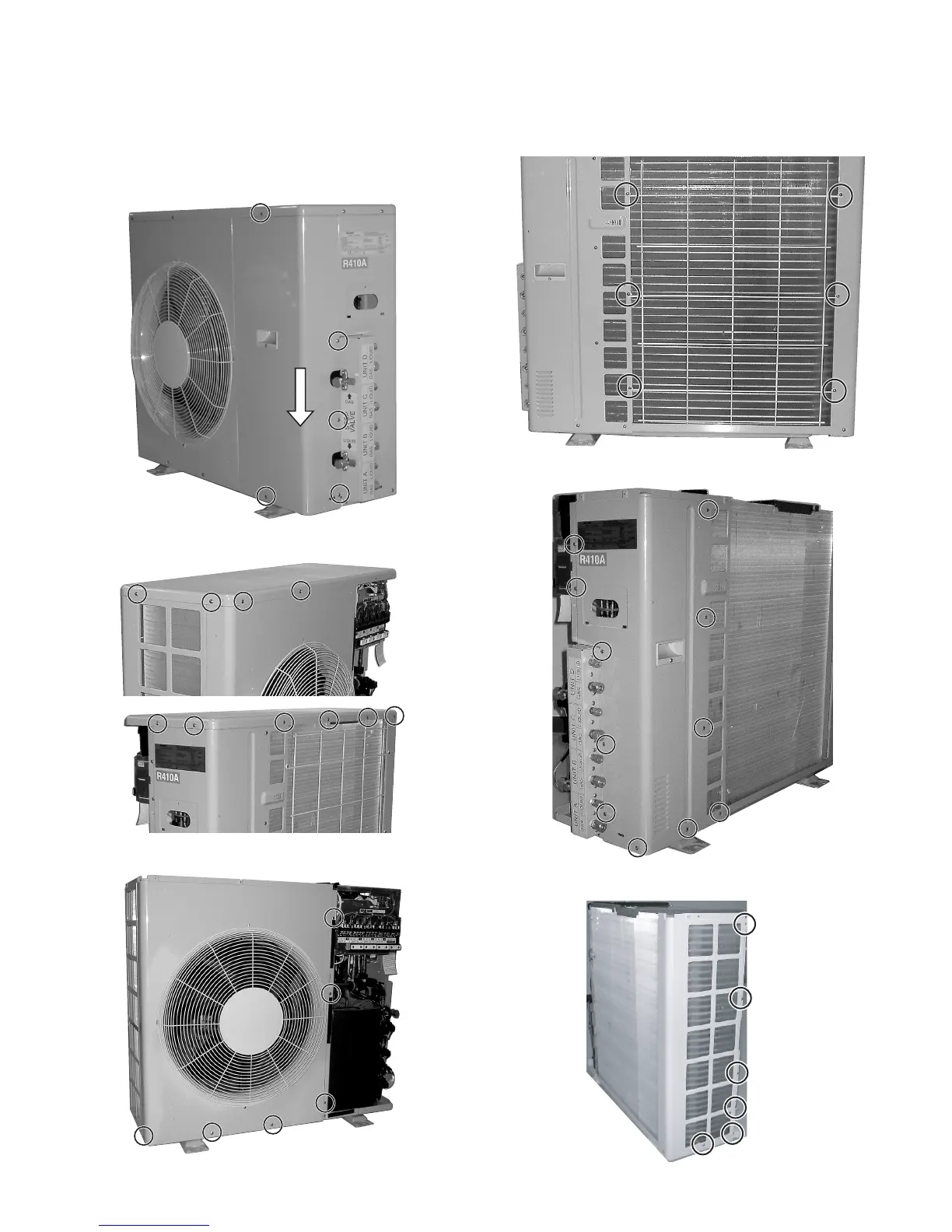

1. Remove the 5 screws fixing the front panel R and slide the front
panel R down.
2. Remove the 10 screws fixing the top cover.
3. Remove the 6 screws fixing the front panel L.
4. Remove the 6 screws fixing the rear guard.
5. Remove the 11 screws fixing the side cover R.
6. Remove the 6 screws fixing the side cabinet L.
