AH-X079E/X099E
AY-X079E/X099E

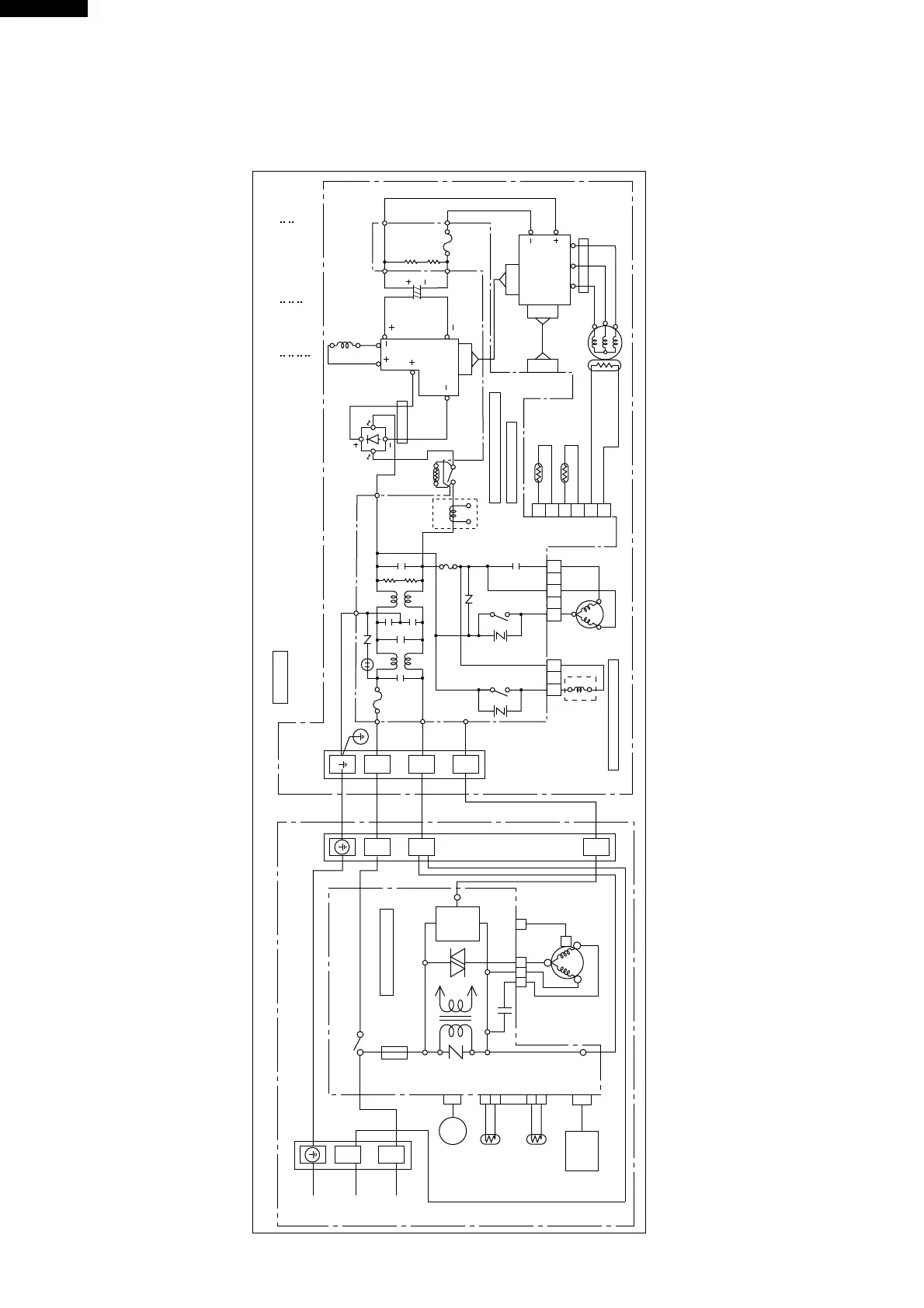

Figure W-1. Wiring Diagram for AH-X079E/X099E and AY-X079E/X099E
CONTROL BOARD UNIT
TERMINAL BOARD
GREEN - YELLOW
IN DOOR UNIT
TERMINAL BOARD
SINGLE PHASE 220-240V 50Hz
BLUE
LOUVER MOTOR
ROOM TEMP THERMISTOR
PIPE TEMP THERMISTOR
TH1
YELLOW
TH2
ORANGE
DISPLAY CONTROL BOARD
BROWN
In Out
RY1 COMPRESSOR RELAY
FUSE 250V 2.5A
CN3
NR1
CN4 CN1 A
BLUE
BLUE
TR
SSR1
SERIAL SIGNAL CIRCUIT
RED
RED
S
C1
CN7 CN8
FAN MOTOR CAPACITOR 430V1.5µF
RED
C
A BLUE
M BLACK
FAN MOTOR
BLUE
UNIT TO UNIT CORD
CAUTION The voltage is high at C8 (electronic capacitor) on outdoor unit.
For mentenance, discharge at C8 to prevent electric shock. In case that WPE2 has been fused, the voltage is kept high at C8.
BK BL BR GR
BLACK BLUE BROWN GRAY
RE WH OR
RED WHITE ORANGE
G(Y) : GREEN - YELLOW
YE G
YELLOW GRENN
BLACK
R.P.M SIGNAL
5 3 1
1
1
4 3 5 6 2 1
3 5
N
2
1
N
2
N
L
OUTDOOR UNIT
TERMINAL BOARD
G(Y)
G(Y)
BR BL RE
RE
A M C
BK BL
OR
THERMISTOR COMP. TEMP.
TH1
CN1
WH
BK
RE
BL
YE
BL
YE
U V W
U(R) V(S) W(C )
COMPRESSOR
POWER TRANSISTOR MODULE (PM1)
TH2
RE
CONTROL BOARD UNIT
T1
T4
T5 BR
RE
MRY1
IN
OUT
T9
T7
T8
T10
10A 250V
DB1
DIODE BRIDGE
GR
BK
I
O O
I
L L
C8 C8: 1500µF 420V
AF1 ACTIVE FILTER
PTC1
GR
T2
C31
C2
C3
C1
C5
CT1
NR2
RY1
CN3
CN8
C4
L3 L4
SA1 NR1
T3
WPE1
WPE2
WPE3  3A 250V
13A 250V
FAN MOTOR
FAN MOTOR CAPACITOR 430V 1.5µF
THERMISTOR PIPE TEMP.
G TH3
THERMISTOR AIR TEMP.
EXCEPT COOLING ONLY MODEL
FC5
FC4
YE YE GR BK
L1
1 3
CNR1
CNR2
CNA
FAN MOTOR
4 WAY VALVE
RY2
EXCEPT COOLING ONLY MODEL
WIRING DIAGRAMS
