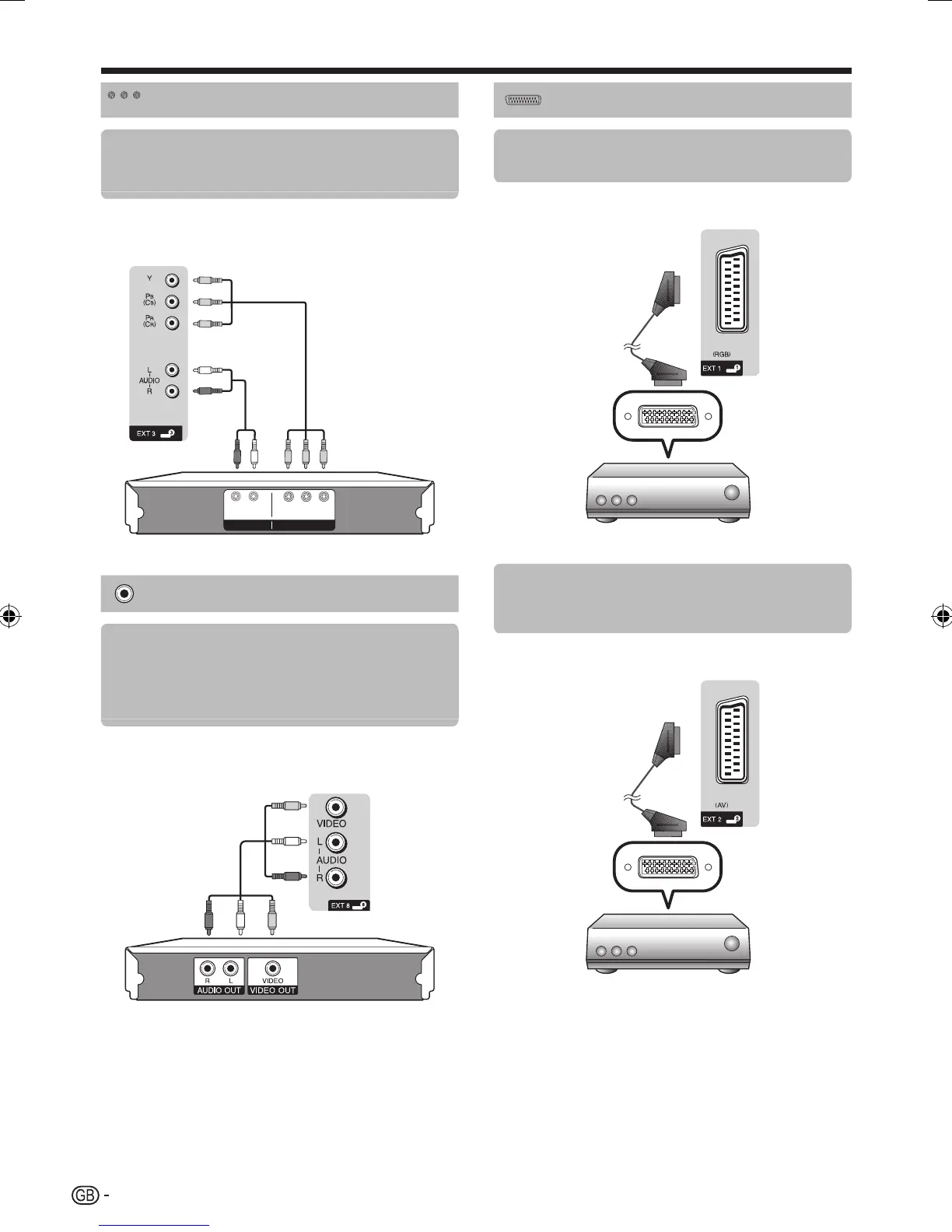

Component connection
Example of connectable devices
VCR
DVD player/recorder
E
E
You will enjoy accurate colour reproduction and high
quality images through the EXT 3 terminal when
connecting a DVD player/recorder or other device.
YPB
(CB)
LRP
R
(CR)
COMPONENTAUDIO
Audio cable Component cable
VIDEO connection
Example of connectable devices
VCR
DVD player/recorder
Game console
Camcorder
E
E
E
E
You can use the EXT 8 terminal when connecting to a
game console, camcorder, a DVD player/recorder or
other device.
AV cable
SCART connection
Example of connectable devices
DecoderE
EXT 1 (RGB) terminal
SCART cable
Example of connectable devices
VCR
DVD player/recorder
E
E
EXT 2 (AV) terminal
SCART cable
NOTE
Do not connect a decoder to the EXT 2 terminal.
E
E
•
Connecting external devices
