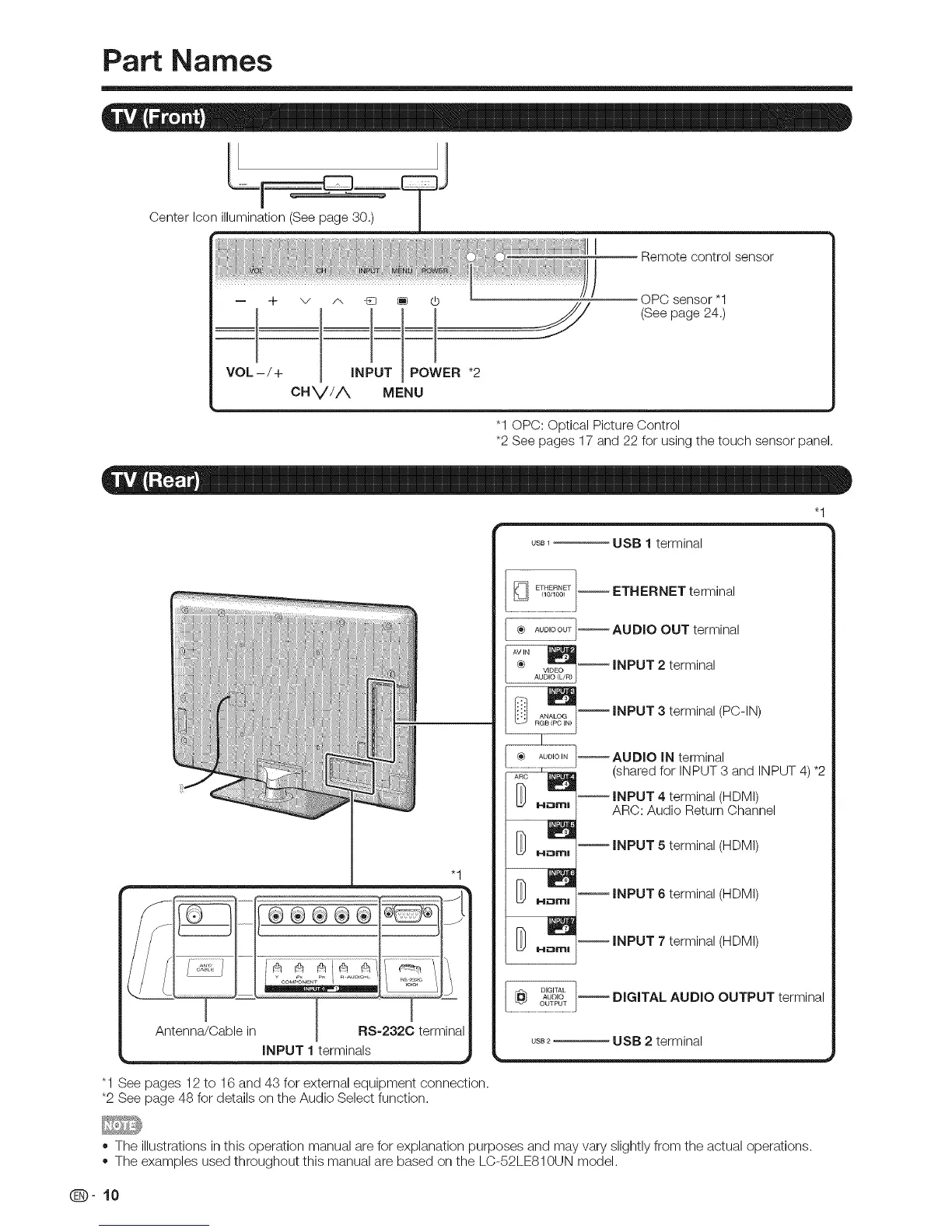

Part Names
Center Icon ill_ _J
Remote control sensor
VOL-/+ I iNPUT I POWER 2
CHV/A MENU
OPC sensor "1
(See page 24.)
"10PC: Optical Picture Control
*2 See pages 17 and 22 for using the touch sensor panel.
iNPUT 1 terminals
"1 See pages 12 to 16 and 43 for external equipment connection.
*2 See page 48 for details on the Audio Select function.
USB1 _ USE_ 1 terminal
ETNERNET terminal
I ® Auo_oGuTI_AUDIO OUT terminal
_ iNPUT 2 terminal
_ iNPUT 3 terminal (PC-IN)
I
AUD_O_N_AUDIO iN terminal
(shared for INPUT 3 and INPUT 4) *2
i INPUT 4 terminal (HDMI)
ARC: Audio Return Channel
INPUT 5 terminal (HDMI)
INPUT 6 terminal (HDMI)
INPUT 7 terminal (HDMI)
DIGITAL i
AUO;O_ DiGiTAL AUDIO OUTPUT terminal
usB2_ USB 2 terminal
The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
The examples used throughout this manual are based on the LC-52LE810UN model.
Q-10
