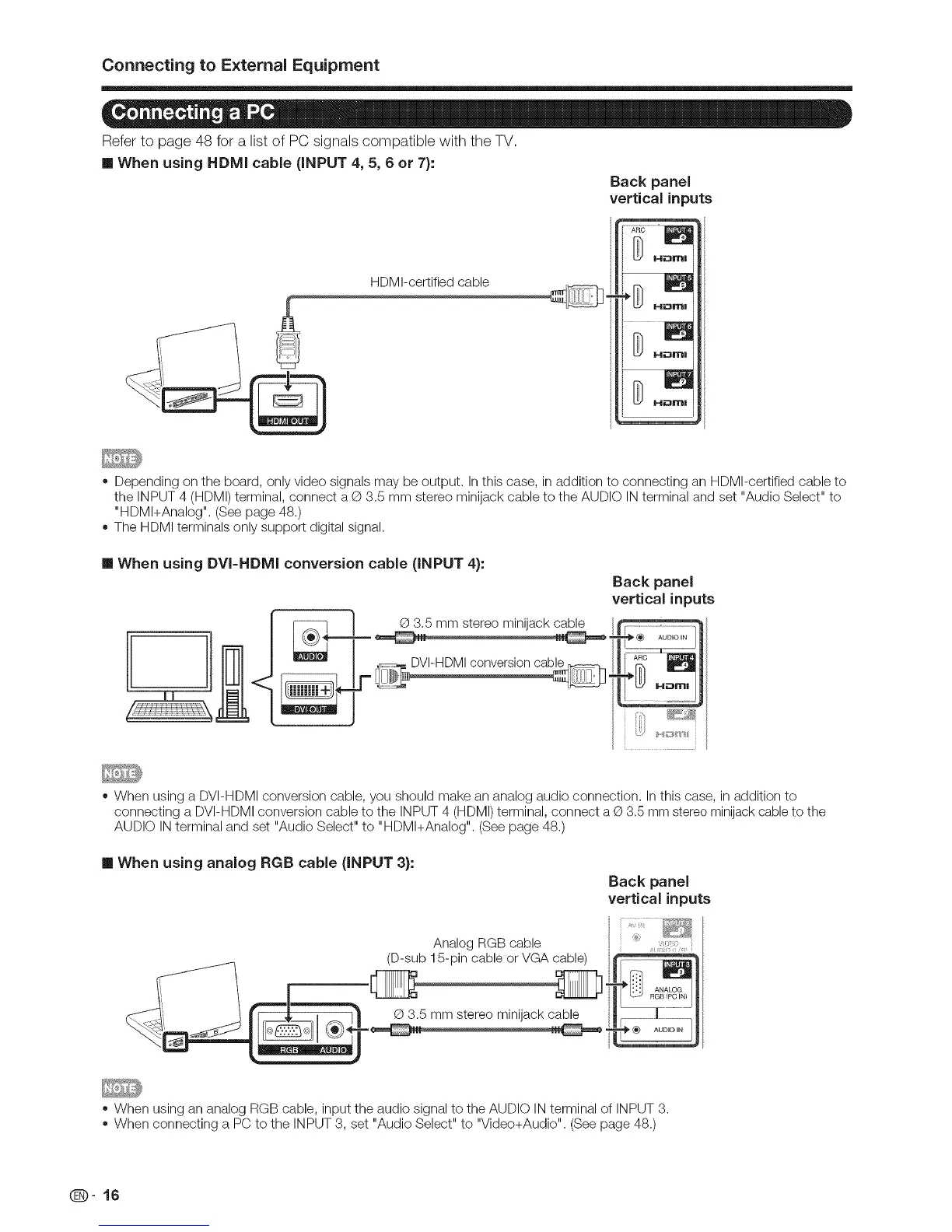

Connecting to External Equipment
Refer to page 48 for a list of PC signals compatible with the TV.
When using HDMI cable (iNPUT 4, 5, 6 or 7}:
HDMI-certified cable
Back panel
vertical inputs
....
[_ HOrn|
i D.om,
D.oo ,`
D HOrn|
Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certified cable to
the INPUT 4 (HDMI) terminal, connect a © 3.5 mm stereo minijack cable to the AUDIO IN terminal and set "Audio Select" to
"HDMl+Analog". (See page 48.)
• The HDMI terminals only support digital signal.
m When using DVI=HDMI conversion cable (iNPUT 4}:
l ® 3.5 mm stereo minijack cable
,,
Back panel
vertical inputs
'_ _ AUDIO IN
When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to
connecting a DVI-HDMI conversion cable to the INPUT 4 (HDMI) terminal, connect a G 3.5 mm stereo minijack cable to the
AUDIO IN terminal and set "Audio Select" to "HDMl+Analog". (See page 48.)
m When using analog RGB cable (iNPUT 3}:
Back panel
vertical inputs
Analog RGB cable
(D-sub 15-pin cable or VGA cable)
'_ @ AUDIO IN
When using an analog RGB cable, input the audio signal to the AUDIO IN temqnal of INPUT 3.
When connecting a PC to the INPUT 3, set "Audio Select" to "Video+Audio". (See page 48.)
Q-16
