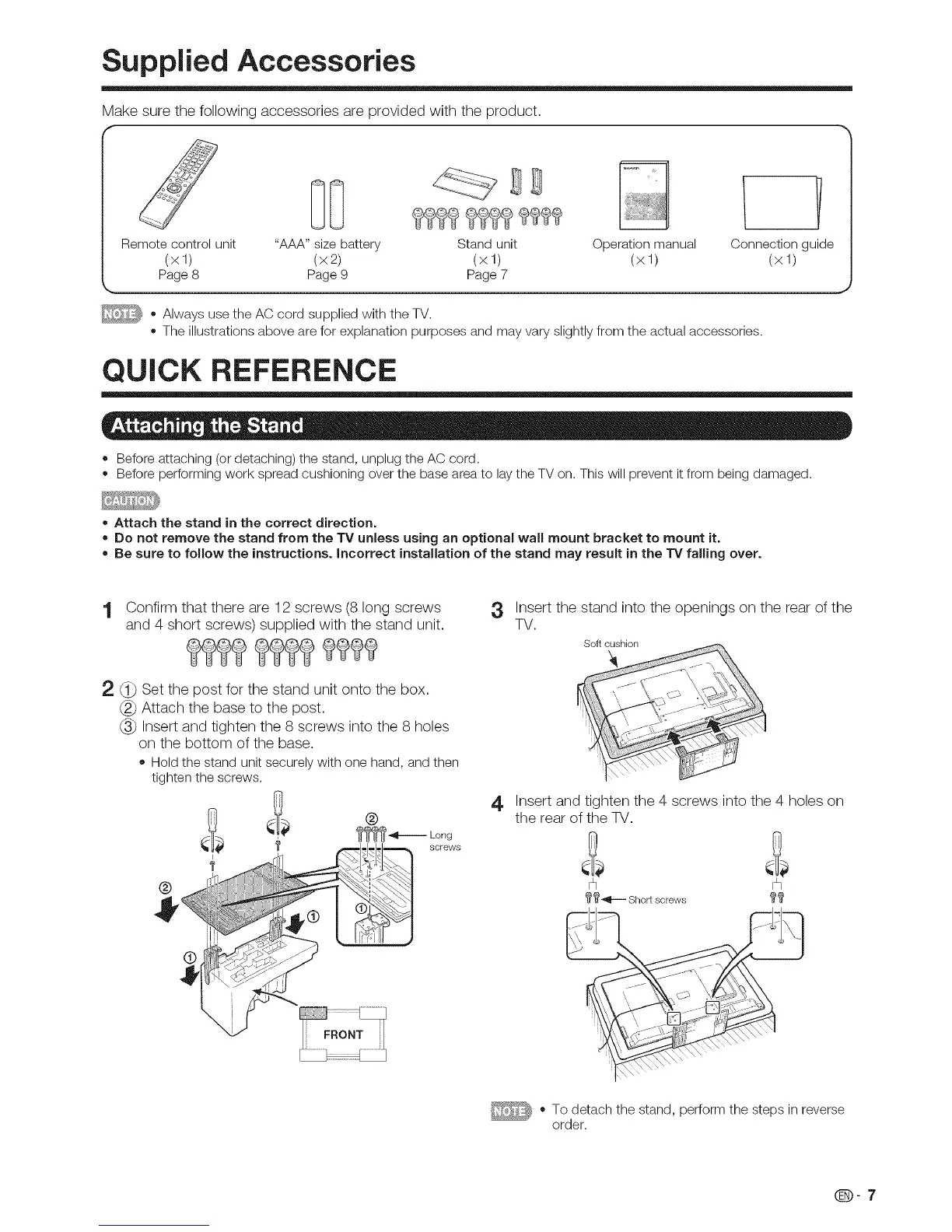

Supplied Accessories
Make sure tile following accessories are provided with the product.
Remote control unit "AAA" size battery Operation manual
(xl) (x2) (xl)
Page 8 Page 9
Stand unit
(xl)
Page 7
V
Connection guide
(xl)
• Always use the AC cord supplied with the TV.
The illustrations above are for explanation purposes and may vary slightly from the actual accessories.
QUICK REFERENCE
• Before attaching (or detaching) the stand, unplug the AC cord.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
• Attach the stand in the correct direction.
• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
• Be sure to follow the instructions, incorrect installation of the stand may result in the TV failing over.
Confirm that there are 12 screws (8 long screws
and 4 short screws) supplied with the stand unit.
2 _ Set the post for the stand unit onto the box.
(_ Attach the base to the post.
(3_ Insert and tighten the 8 screws into the 8 holes
on the bottom of the base.
• Hold the stand unitsecurely with one hand, and then
tighten the screws.
®
3 Insert the stand into the openings on the rear of the
TV.
4
Soft cushion
Insert and tighten the 4 screws into the 4 holes on
the rear of the TV.
Iq F1
_1--- Short screws _
To detach the stand, perform the steps in reverse
order.
(D-7
