AR-M205 DISASSEMBLY AND ASSEMBLY 11-16

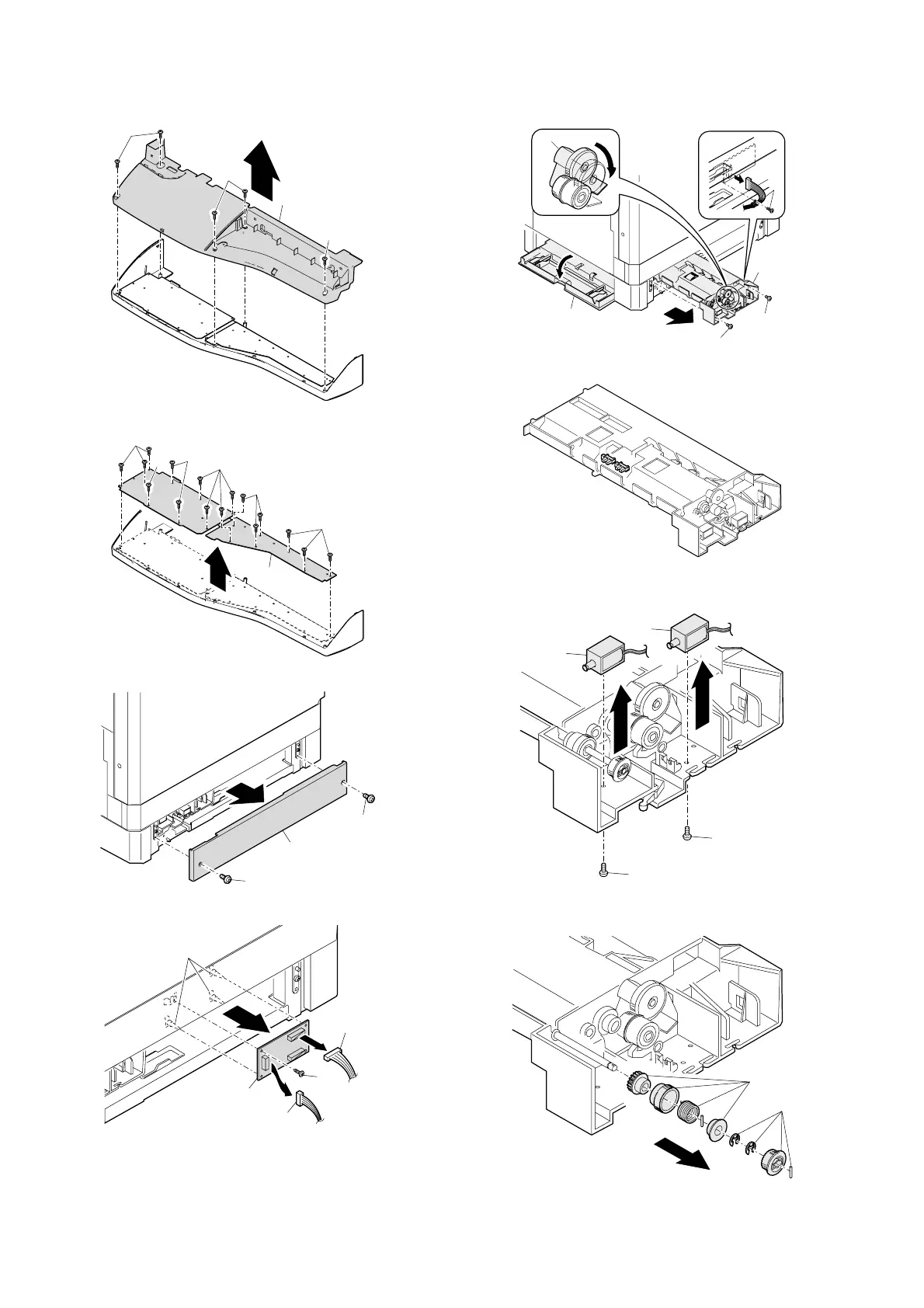

B. Tray interface P.W.B.
C. 2nd tray paper entry sensor / Paper empty sensor
D. 2nd tray paper feed solenoid / Transport solenoid
E.2nd tray transport clutch
