AR-6020V OPERATIONAL DESCRIPTIONS 11 – 17
11. Developing section

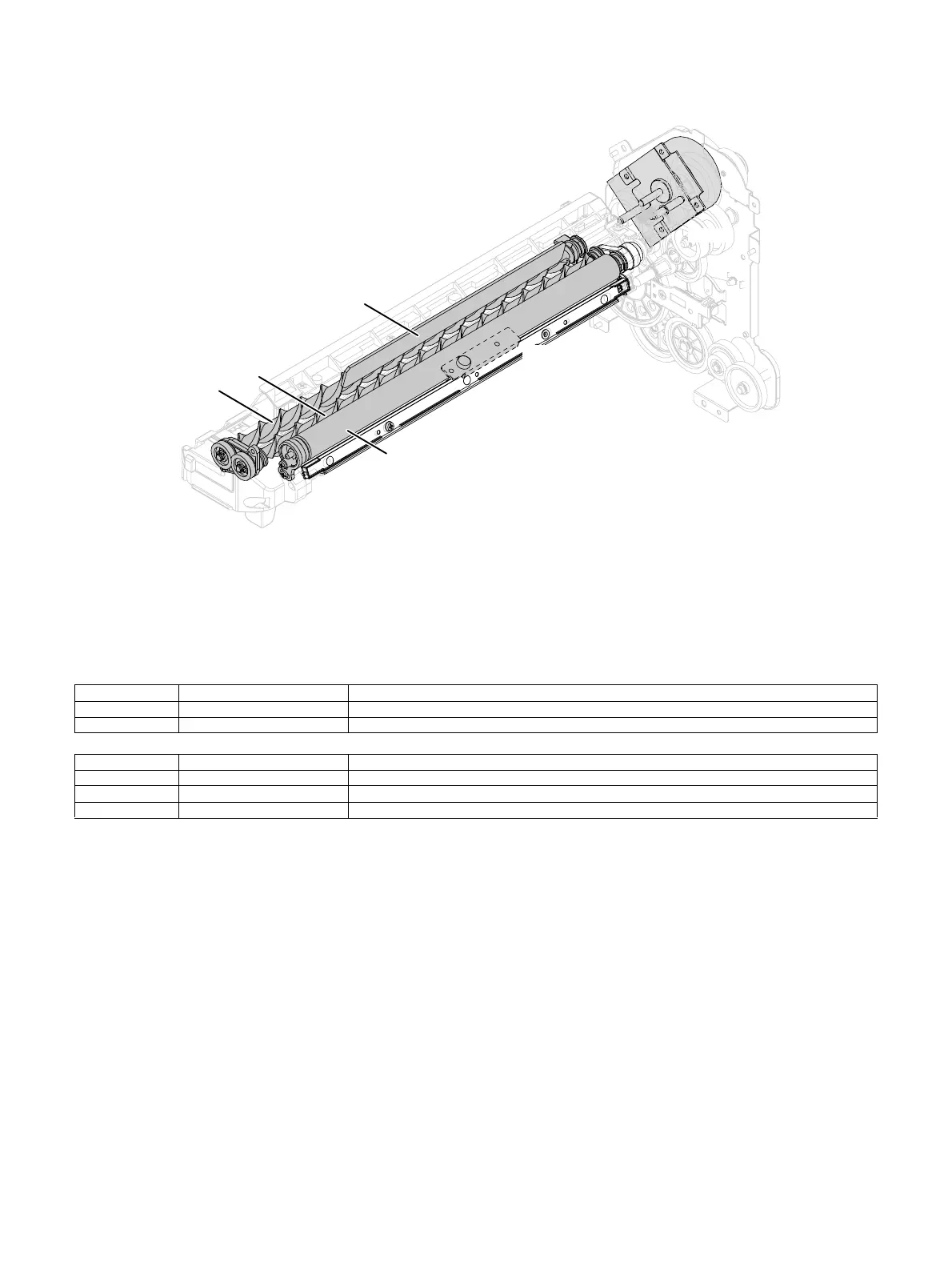

A. Mechanism relation diagram
Signal name Name Function and operation
MM Main motor Drives the most of the driving parts except the duplex section, the toner section and the scanner sections.
TCS Toner sensor Detects the toner density in the developing unit.
No. Name Function and operation
1 Developing roller Forms electrostatic latent images on the OPC drum into visible images.
2 Stirring roller Stirring roller Stirs toner and developer to charge toner negatively by friction.
3 Toner filter Prevents toner splash and vacuum.
