Sharp AR-M318 - E. Paper Feed Section

AR-M256/M257/M258/M316/M317/M318/5625/5631 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 10

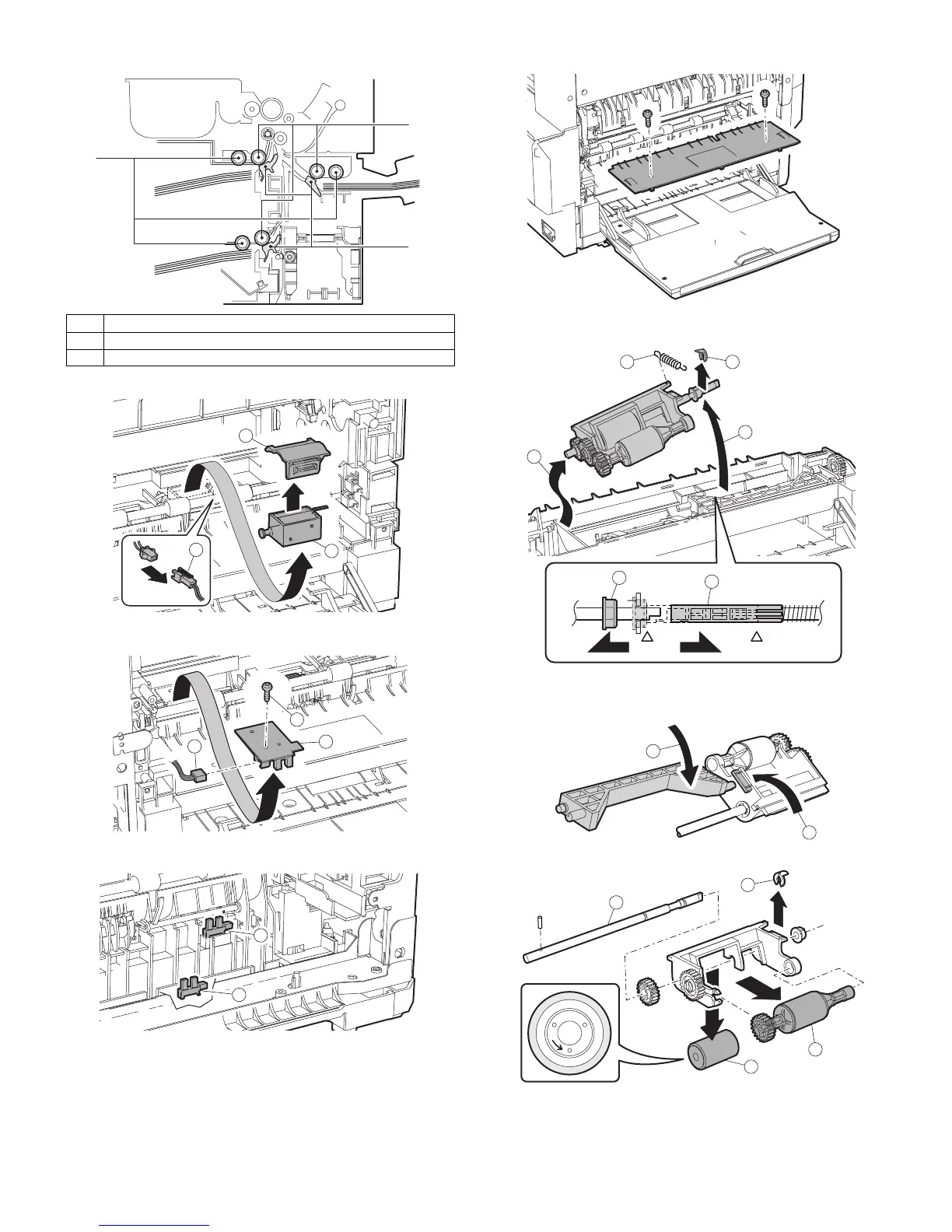

E. Paper feed section
(1) Paper feed solenoid
(2) Cassette sensor PWB
(3) Manual P-in sensor/Manual empty sensor
(4) Multi manual paper feed
a. Paper feed roller/pickup roller
Installation*Install so that the cam transmit arm (1) comes under the
roller arm (2).
A Paper feed roller
B Pickup roller
C Separation sheet
A
C
B
1
3
2
3
1
2
A
B
5
6
1 2
4
3
1
2
2
1
4
3
