AR-M256/M257/M258/M316/M317/M318/5625/5631 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 12

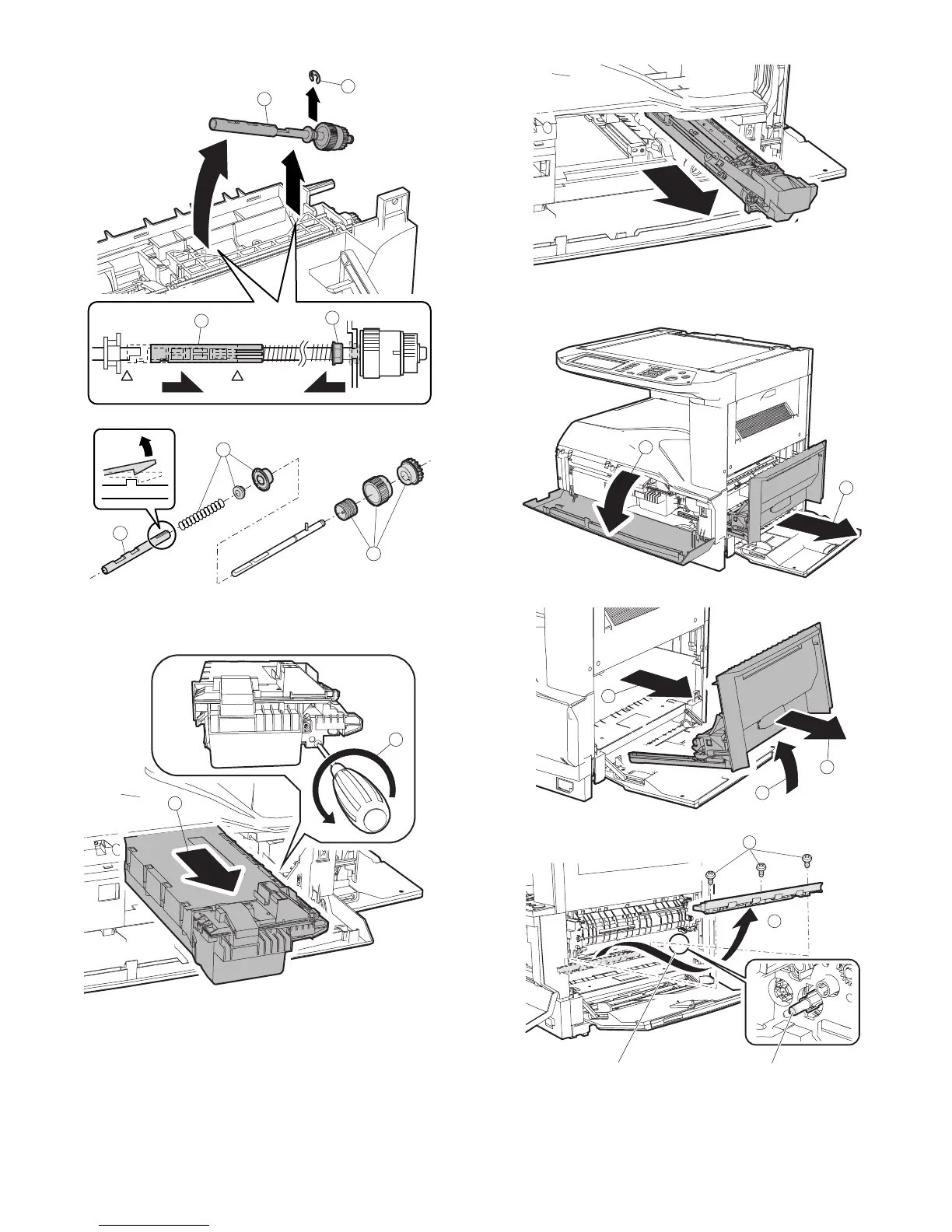

(5) Upper 500 sheets tray paper feed
a. Paper feed roller/pickup roller
Note: With the toner cartridge installed, do not tilt or shake the devel-
oper cartridge.
4
1
2
3
3
1
2
1
2
∗ When replacing, be careful not
to adhere conduction grease
(black) to the drive section.
Slightly apply grease GE676
(UKOG-0013QSZZ) to the
drum boss.
2
1
3
1
2
1
2
To Next Page
