Sharp AX-1500J - Circuit Diagrams; Pictorial Diagram

AX1500J(S)
7

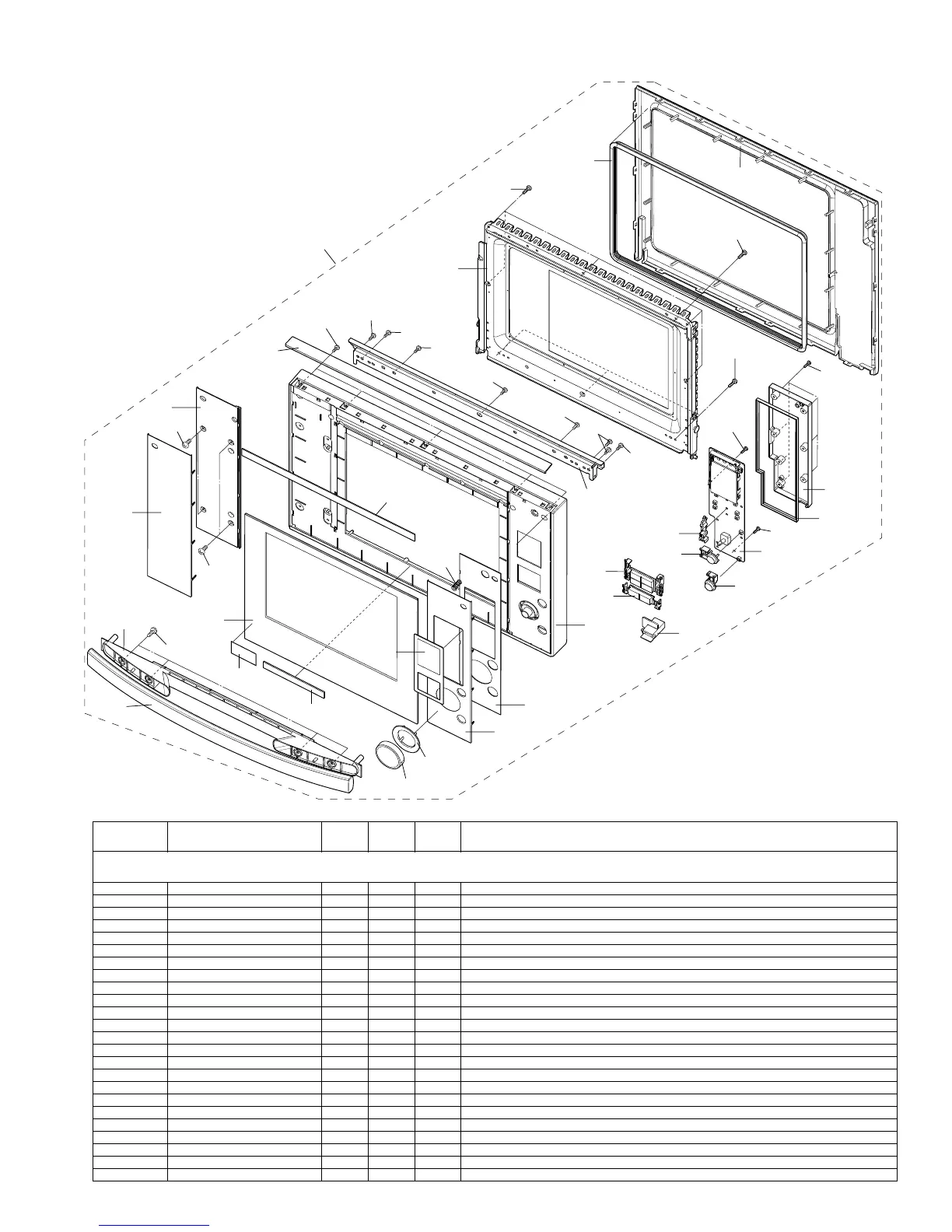

[3] DOOR PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[3] DOOR PARTS
1-4 DPWB-A784DRKZ BS Display unit
* 6 DDORFB396WRKZ CG Door assembly
6-1 JBTN-B547WRRZ AH Steam button
6-2 JBTN-B544WRRZ AG Enter button
6-3 JBTN-B546WRRZ AH Start button
* 6-4 FDORFA461WRKZ BQ Door panel assembly
6-5 FKNBKA224WRKZ AR Encoder button assembly
6-6 HDECAA480WRTZ AV Panel dec. Left
* 6-7 GCOVHA547WRFZ AQ Door cover
* 6-8 GWAKPB287WRTZ BF Door frame
6-9 HDECAA453WRPZ AQ Panel dec. right
6-10 HDECAA479WRTZ AW Frame dec. upper
6-11 HDECAA447WRPZ AK Panel dec upper
6-12 HDECAA455WRPZ AR Door dec right
6-13 HDECAA456WRRZ AT Door dec left
6-14 HDECQA407WRPZ AM Encoder base
6-15 LHLD-A334WRFZ AF Button support
6-16 JBTN-B545WRRZ AG Info button
6-17 JHNDPA328WREZ AH Handle
6-18 LANGKB452WRWZ AP Door support angle
6-19 HDECAA504WRPZ AL Panel dec right S
6-20 LSTPPA294WRFZ AR Glass stopper upper
6-21 MSPRCA182WREZ AF Ground spring
6-22 PCOVPA506WRFZ AH Switch PWB cover
6-8
6-25
6-32
6-3
6-23
6-16
6-22
6-31
6-27
1-4
6-1
6-15
6-2
6-11
6-21
6-4
6-26
6-32
6-10
6-32
6-5
6-17
6-18
6
6-32
6-37
6-31
6-31
6-7
6-35
6-36
6-36
6-36
6-35
6-20
6-14
6-9
6-19
6-12
6-13
6-32
6-32
6-6
6-35
6-36
8-115
8-105
