8
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[3] DOOR PARTS
1-4 DPWB-B038DRKZ1 BP Display unit (DISPLAY UNIT)
Door parts
6-1 FBTN-A235WRKZ AK START BUTTON ASSEMBLY [R]
6-1 FBTN-A239WRKZ AK START BUTTON ASSEMBLY [W]
6-2 FBTN-A233WRKZ AM DEFROST BUTTON ASSEMBLY [R]
6-2 JBTN-B696WRRZ DEFROST BUTTON [W]
6-3 FBTN-A234WRKZ AL ENTER BUTTON ASSEMBLY [R]
6-3 FBTN-A238WRKZ AL ENTER BUTTON ASSEMBLY [W]
6-4 HDECAA673WRRZ BD DOOR DEC UPPER [R]
6-4 HDECAA687WRTZ AS DOOR DEC UPPER [W]
6-5 FDORFA502WRKZ BF DOOR PANEL ASSEMBLY
6-6 FKNBKA244WRKZ AS ENCODER BUTTON ASSEMBLY [W]
6-6 FKNBKA248WRKZ AT ENCODER BUTTON ASSEMBLY [R]
6-8 GCOVHA561WRFZ AV DOOR COVER
6-9 GWAKPB402WRTZ BG DOOR FRAME [R]
6-9 GWAKPB407WRTZ BG DOOR FRAME [W]
6-10 HDECAA672WRTZ AU DOOR FRAME UPPER [R]
6-10 HDECAA686WRTZ AU DOOR FRAME UPPER [W]
6-12 J HNDPA405WRKZ BE HANDLE SUB ASSEMBLY [R]
6-12 J HNDPA410WRKZ BE HANDLE SUB ASSEMBLY [W]
6-14 HDECAA676WRPZ AR PANEL DEC [R]
6-14 HDECAA689WRPZ AS PANEL DEC [W]
6-15 JBTN-B519WRFZ AG BUTTON SUPPORT
6-16 PSHT-A024WREZ AF LCD WINDOW SHEET
6-17 LANGKB493WRWZ AK DOOR SUPPORT ANGLE
6-18 FSTPPA009WRKZ AH GLASS DEC L ASSEMBLY [R]
6-18 FSTPPA010WRKZ AH GLASS DEC L ASSEMBLY [W]
6-19 JBTN-B691WRRZ AH DEFROST SMALL BUTTON [R]
6-19 JBTN-B700WRRZ AH DEFROST SMALL BUTTON [W]
6-20 PC OVPA620WR FZ SW PWB COVER
6-21 PC OVPA616WR FZ AD WIRE PROTECT COVER
6-22 FGLSPA080WRKZ AZ OUT DOOR GLASS ASSEMBLY [R]
6-22 PGLSPA877WREZ AZ OUT DOOR GLASS [W]
6-23 PPAC-A172WREZ AG PWB PACKING
6-24
PPAC-A160WREZ AT DOOR PACKING
6-25 XETS740P12000 AC Screw : 4mm x 12mm (TAP TIGHT SCREW)
6-26 XEBS730P12000 AB Screw : 3mm x 12mm (SCREW)
6-27 XEPS740P12000 AA Screw : 4mm x 12mm (TAP TIGHT SCREW)
6-28 XEPS740P25KS0 AE Screw : 4mm x 25mm (TAP TIGHT SCREW)
6-29 XETS740P20KS0 AC Screw : 4mm x 20mm (TAP TIGHT SCREW)
6-30 XETS740P14000 AB Screw : 4mm x 14mm (SCREW)
*
*
*
*
6-27
6-27
6-27
6-27
6-27
6-27
6-27
6-27
6-27
6-27
6-30
6-30 6-30
6-30
6-26
6-27
6-26
6-26
6-26
6-26
6-27
6-26
6-26
6-26
6-26
6-26
6-26
6-28
6-28
6-29
6-29
6-28
6-28

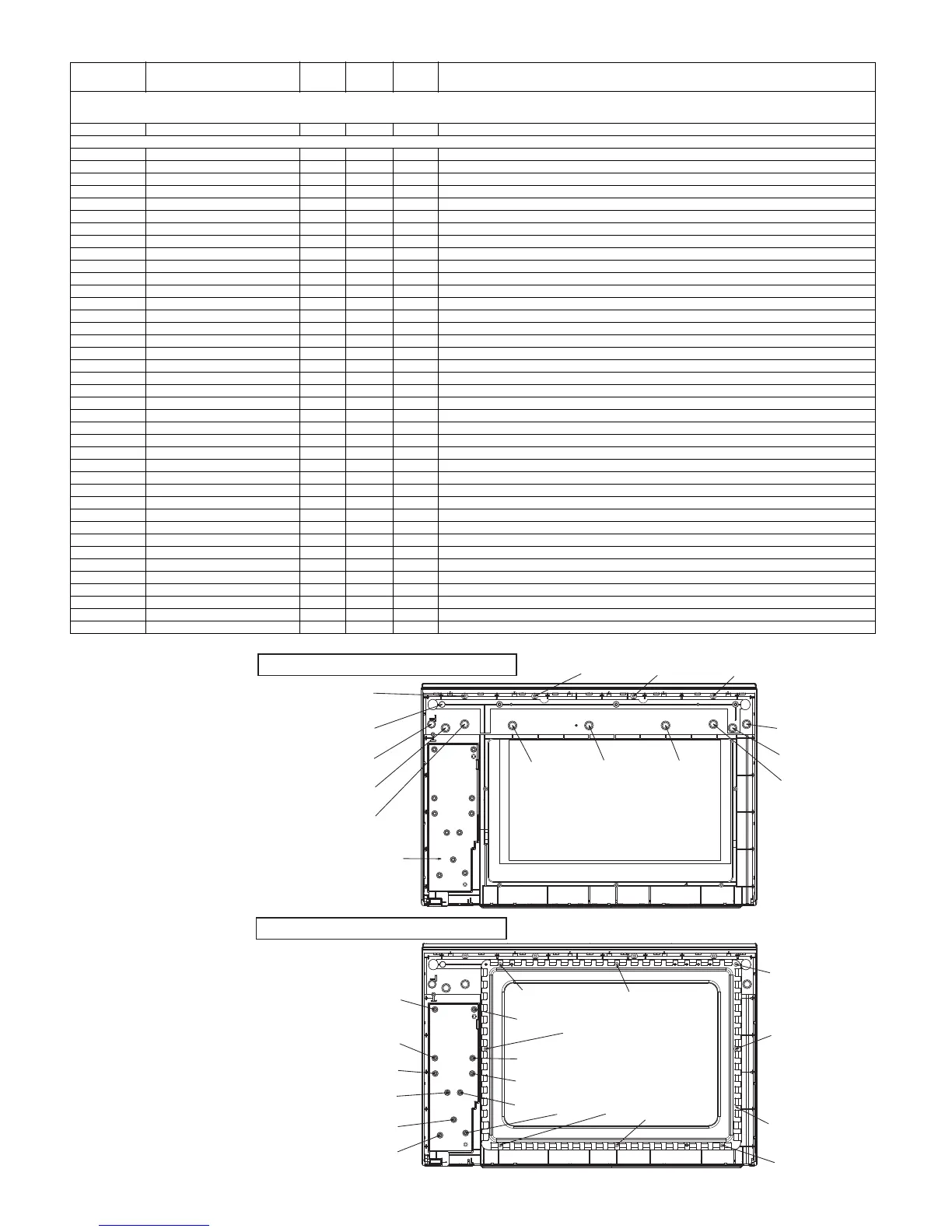

Screw position before instolling door panel assembly
Screw position after instolling door panel assembly
Door panel assembly
Switch PWB cover
Screw position for door parts
